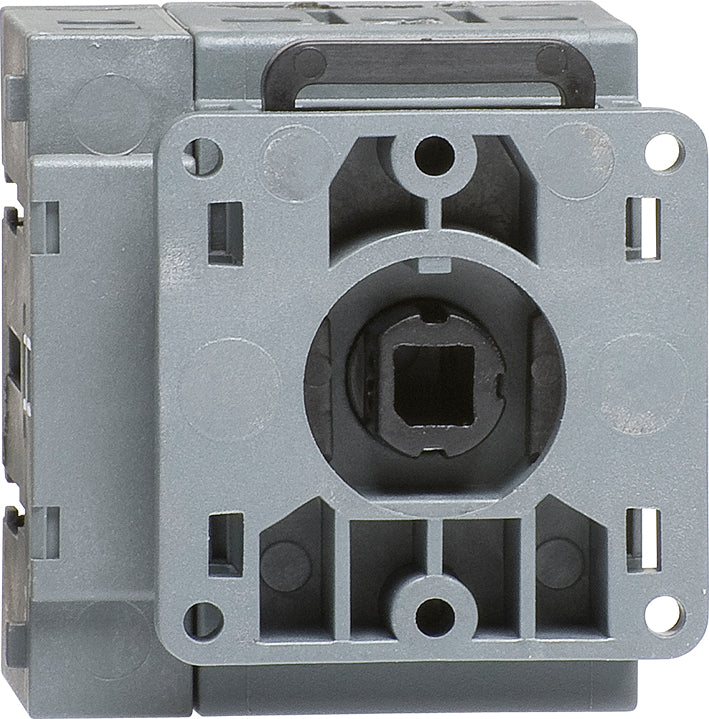

ABB SwitchLine Disconnector - 1SCA104900R1001

ABB SwitchLine Disconnector - 1SCA104900R1001
ABB SwitchLine Disconnector - 1SCA104900R1001
Image may vary slightly
See specifications for accurate information.
Reference: E2NSQ
Brand: ABB
Mfr. Part: 1SCA104900R1001

This 4-pole ABB load breaker from the SwitchLine OT series can be used as both a load breaker and a main switch. The rated continuous current is 25A. Furthermore, this load breaker has a rated capacity of 9kW at AC-23 and AC-3. This switch is operated by means of a rotary handle. The operating voltage (measurement voltage) is 380 to 440 V.

View all
$47.13
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 51 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This 4-pole ABB load breaker from the SwitchLine OT series can be used as both a load breaker and a main switch. The rated continuous current is 25A. Furthermore, this load breaker has a rated capacity of 9kW at AC-23 and AC-3. This switch is operated by means of a rotary handle. The operating voltage (measurement voltage) is 380 to 440 V.

Downloads

pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Version as reversing switch
No
Max. rated operation voltage Ue AC (V)
690
Rated operating voltage (V)
380 V to 440 V
Rated permanent current Iu (A)
25
Rated permanent current at AC-23, 400 V (A)
20
Rated permanent current at AC-21, 400 V (A)
25
Rated operation power at AC-3, 400 V (kW)
9
Rated short-time withstand current lcw (kA)
0.5
Rated operation power at AC-23, 400 V (kW)
9
Switching power at 400 V (kW)
9
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Type of control element
Other
Interlockable
No
Type of electrical connection of main circuit
Cable clamp
Degree of protection (IP), front side
IP20
Degree of protection (NEMA)
1
