ABB Comfortline, Twinline, Triline Built-In Unit Empty - 2CPX041825R9999

ABB Comfortline, Twinline, Triline Built-In Unit Empty - 2CPX041825R9999
ABB Comfortline, Twinline, Triline Built-In Unit Empty - 2CPX041825R9999
Image may vary slightly
See specifications for accurate information.
Reference: E2CJQ
Brand: ABB
Mfr. Part: 2CPX041825R9999

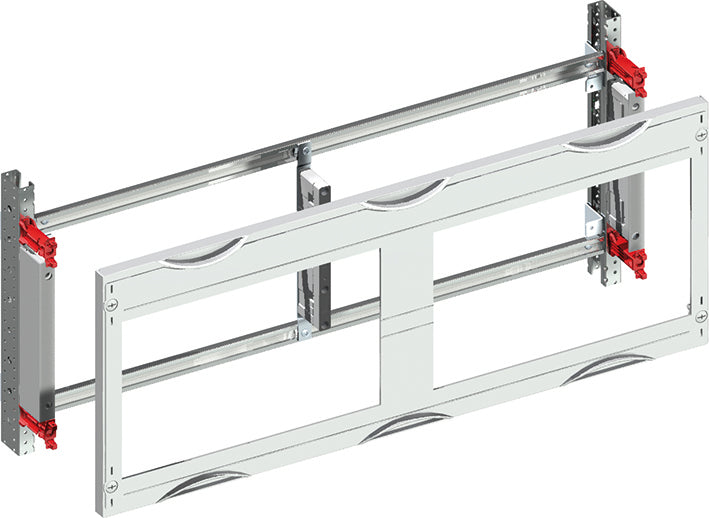

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 60 mm horizontal, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 215 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of t.

View all
Note: product cannot be returned
$130.72 USD
excl VAT
In stock Ships in 17d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 17 days. Up to 33 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 19 - 20 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 60 mm horizontal, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 215 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of t.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Heighti
300 mm
Widthi
250 mm
Depthi
88 mm
Number of DIN-rails
0
Number of modular spacings per DIN-rail
0
Type of cover
With notch
With N-PE clamp
No
With cover
Yes
With mounting plate
No
