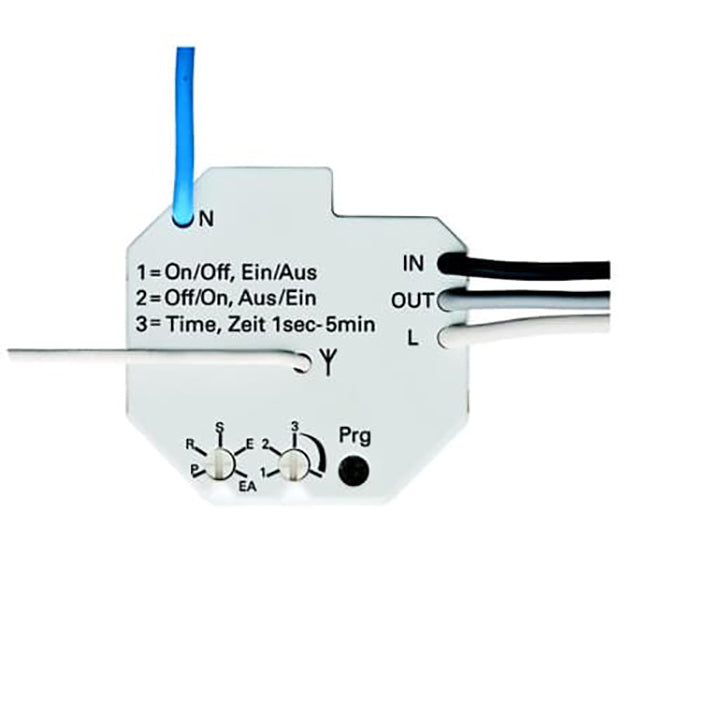

ABB Busch-Jaeger Wave Line Radio frequency receiver Switchgear - 2CKA006700A0023

ABB Busch-Jaeger Wave Line Radio frequency receiver Switchgear - 2CKA006700A0023
ABB Busch-Jaeger Wave Line Radio frequency receiver Switchgear - 2CKA006700A0023
Image may vary slightly
See specifications for accurate information.
Reference: E2GQ5
Brand: ABB
Mfr. Part: 2CKA006700A0023

For wireless switching of electrical loads. For functions ON/OFF, timer and lightscene control. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. Switch-off delay: Adjustable between 10 s to 5 min. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.

View all
$191.49
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 19 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

For wireless switching of electrical loads. For functions ON/OFF, timer and lightscene control. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. Switch-off delay: Adjustable between 10 s to 5 min. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Suitable for dimmer
No
Suitable for pulse button
No
Suitable for roller shutter switch
No
Suitable for venetian shutter switch
No
Suitable for venetian-/roller shutter switch
No
Suitable for switch
Yes
In housing
Yes
In tube base housing
No
Printed circuit board/module
No
Push button mode
No
Switching mode
Yes
With manual radio transmitter
No
With radio coding device
No
With radio controlled push button
No
Number of relays
1
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Untreated
Surface finishing
Matt
Type of fastening
Other
Color
White
RAL-number (similar)
9016
Suitable for degree of protection (IP)
IP20
Radio frequency (MHz)
868
Number of commands
2
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
