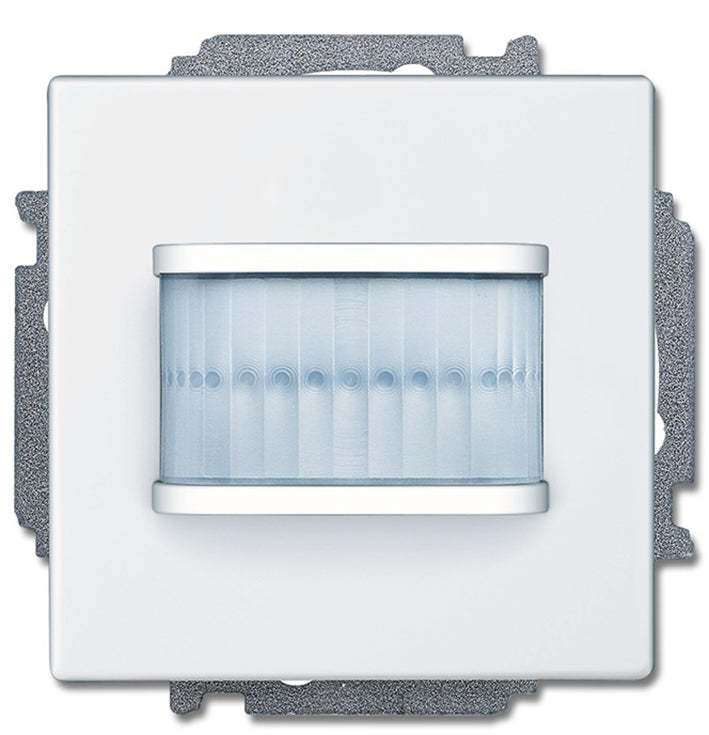

ABB Busch-Jaeger Busch-FreeAtHome Motion Detector Bus System - 2CKA006220A0112

ABB Busch-Jaeger Busch-FreeAtHome Motion Detector Bus System - 2CKA006220A0112
ABB Busch-Jaeger Busch-FreeAtHome Motion Detector Bus System - 2CKA006220A0112
Image may vary slightly
See specifications for accurate information.
Reference: E35RD
Brand: ABB
Mfr. Part: 2CKA006220A0112

This motion detector from the Busch-free@home series from Busch-Jaeger is suitable for automatic switching of Busch-free@home actuators depending on motion and brightness. The motion switch thus switches connected actuators automatically when there is a movement in the detection area and when it is dark enough. Also, the motion switch/switch actuator is suitable for switching 127V/230V consumers. This is because the motion detector features an integrated switching actuator. In addition, the motion switch/switch actuator has a select lens for detection with animal zone.

View all
Note: product cannot be returned
$245.29
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This motion detector from the Busch-free@home series from Busch-Jaeger is suitable for automatic switching of Busch-free@home actuators depending on motion and brightness. The motion switch thus switches connected actuators automatically when there is a movement in the detection area and when it is dark enough. Also, the motion switch/switch actuator is suitable for switching 127V/230V consumers. This is because the motion detector features an integrated switching actuator. In addition, the motion switch/switch actuator has a select lens for detection with animal zone.

Downloads

pdf
Download

Specifications

Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
free@home
Radio frequent bidirectional
No
Model
Movement sensor
Mounting method
Flush mounted (plaster)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Surface protection
The type of surface protection of the component.
Untreated
Surface finishing
Glossy
Color
White
RAL-number (similar)
9016
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
Yes
Staircase monitoring
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
Optimum mounting height (m)
1.2
Max. transmission range sideways (m)
3
Max. transmission range frontally (m)
6
Diameter detection range on floor (m)
6
Detection angle vertical (°)
10 ° to 10 °
Detection angle horizontal (°)
10 ° to 180 °
Number of digital inputs
0
Number of channels
1
Switching power (W)
2300
Min. switch-on time (s)
30
Max. duty cycle (min)
30
Min. depth of built-in installation box (mm)
32
