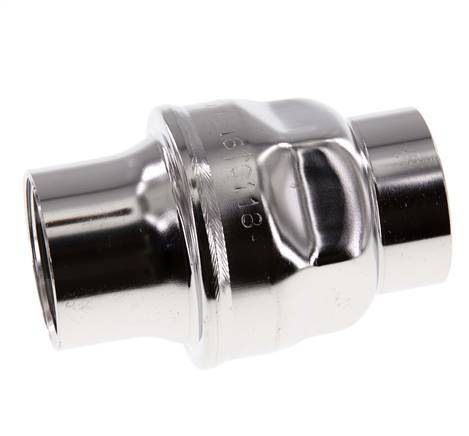

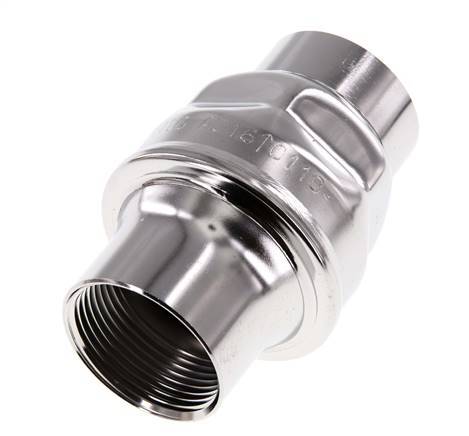

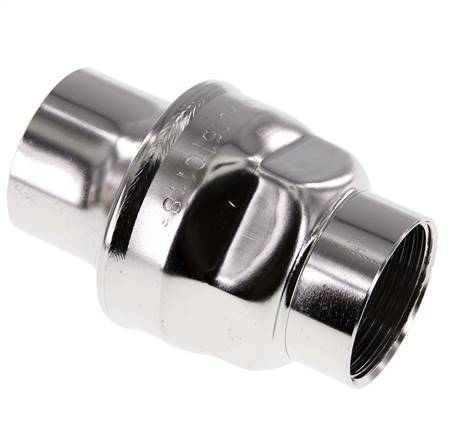

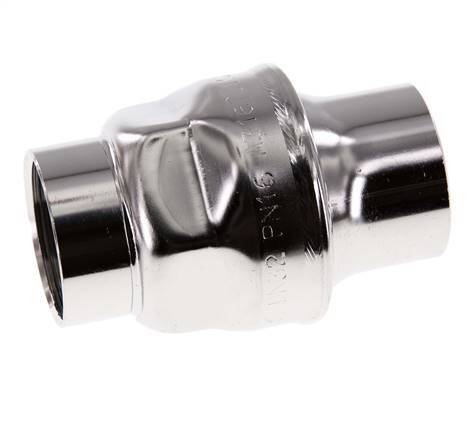

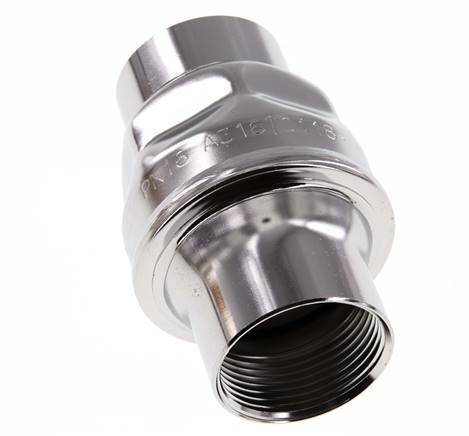

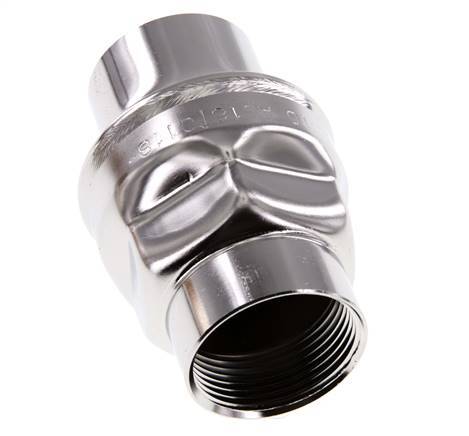

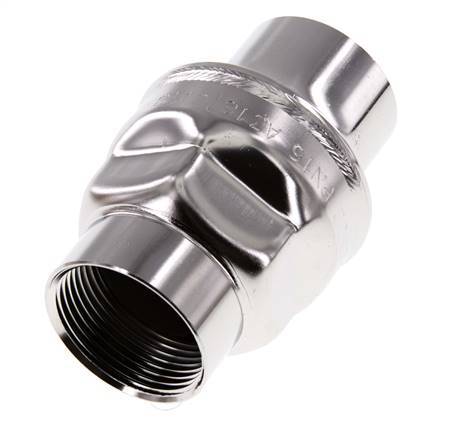

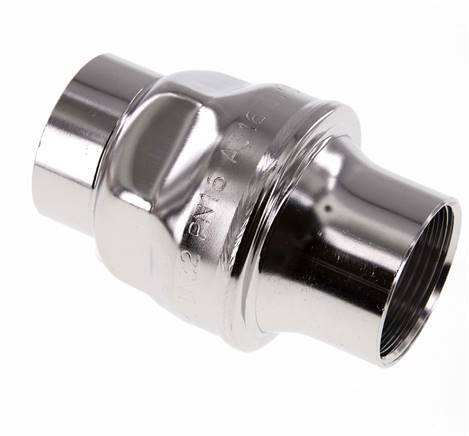

G1 1/4'' Stainless Steel 316 Check Valve PTFE 0.03-16bar (0.44-232psi)
G 1 1/4 inch check valve made of stainless steel 316 with a PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.03 bar (0.44 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -20 and 200° C (-4 to 392° F). The Kv-value is 31.5 m3/h (525 l/min @1 bar pressure). In imperial units: Cv = 36.41 GPM @ 1 psi pressure.
- Regular price
- $76.12
Description
G 1 1/4 inch check valve made of stainless steel 316 with a PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.03 bar (0.44 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -20 and 200° C (-4 to 392° F). The Kv-value is 31.5 m3/h (525 l/min @1 bar pressure). In imperial units: Cv = 36.41 GPM @ 1 psi pressure.
Pros:
- Stainless steel 316 has better chemical resistance than stainless steel 304
- PTFE has a large temperature range and is resistant to almost all fluids
Mondeo IDRJA series
The Mondeo IDRJA series check or foot valves are fabricated from pressed stainless steel. This production method allows high performance combined with competitive pricing. The products are degreased, pickled and electropolished. They're available in 304 and 316 stainless steel with a wide variety of sealing materials. Versions are available with antipollution control, drinking water approvals, suitable for heavy duty, with male and female connections, with flange connections, with NPT threads, with Victaulic connections or with a connection for air feeding.
