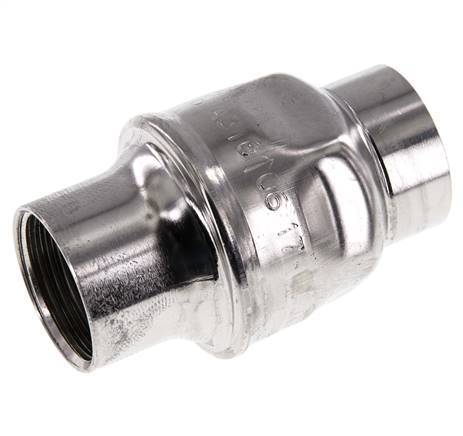

G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
G1'' Stainless Steel 316 Check Valve FKM 0.03-16bar (0.44-232psi) - NSF ANSI 61
Reference: 900412
Brand: Mondeo

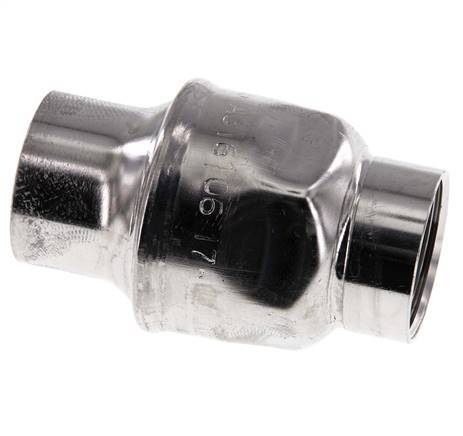

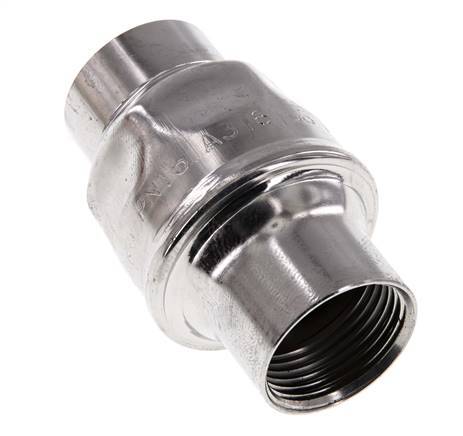

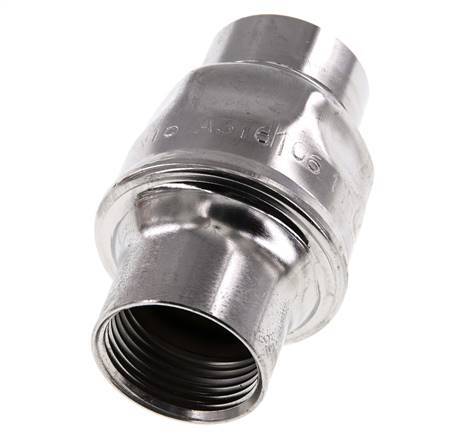

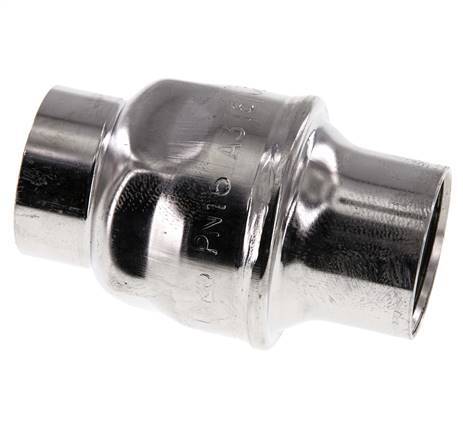

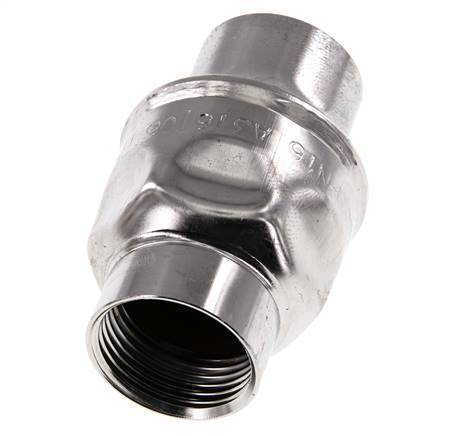

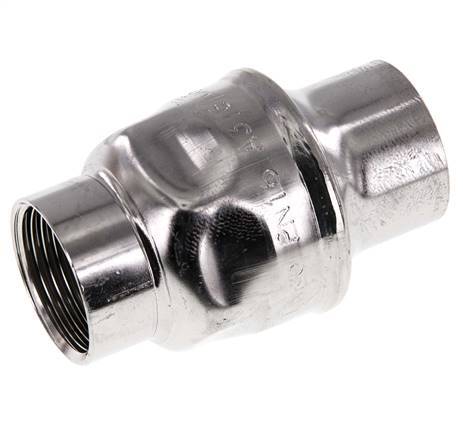

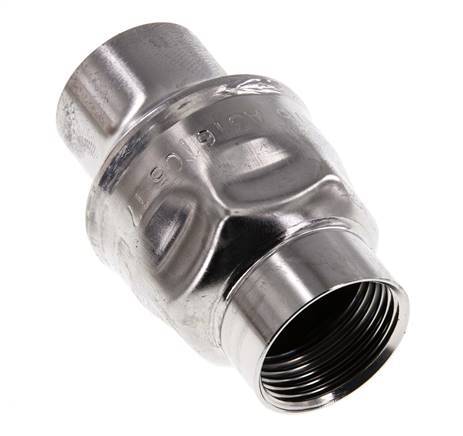

G 1 inch check valve made of stainless steel 316 with an FKM seal. The minimum differential pressure across the non-return valve must be higher than 0.03 bar (0.44 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -20 and 150° C (-4 to 302° F). The Kv-value is 18.7 m3/h (312 l/min @1 bar pressure). In imperial units: Cv = 21.62 GPM @ 1 psi pressure.

View all
Regular price
$28.88 USD
excl VAT

In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 22, expect an increased lead time of 0 days. Up to 59 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 2 - 3 business days

Description
Specifications
Downloads

G 1 inch check valve made of stainless steel 316 with an FKM seal. The minimum differential pressure across the non-return valve must be higher than 0.03 bar (0.44 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -20 and 150° C (-4 to 302° F). The Kv-value is 18.7 m3/h (312 l/min @1 bar pressure). In imperial units: Cv = 21.62 GPM @ 1 psi pressure.

Pros:

  • Suitable for drinking water according to NSF ANSI 61
  • Stainless steel 316 has better chemical resistance than stainless steel 304
  • FKM is suitable for oils, fuels, air, water and many chemicals

Cons:

  • FKM is not suitable for boiling water or steam. EPDM or PTFE are suitable alternatives in this case

Mondeo IDRJA series

The Mondeo IDRJA series check or foot valves are fabricated from pressed stainless steel. This production method allows high performance combined with competitive pricing. The products are degreased, pickled and electropolished. They're available in 304 and 316 stainless steel with a wide variety of sealing materials. Versions are available with antipollution control, drinking water approvals, suitable for heavy duty, with male and female connections, with flange connections, with NPT threads, with Victaulic connections or with a connection for air feeding.
