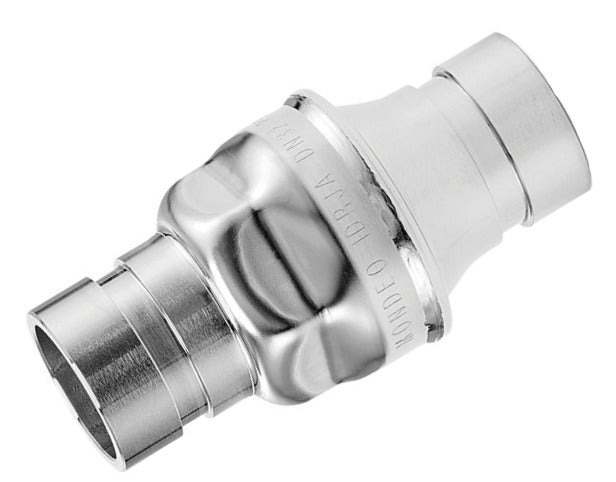

G1 1/4'' Stainless Steel 304 Check Valve FKM 0.03-16bar (0.44-232psi) - Victaulic connection [3 Pieces]

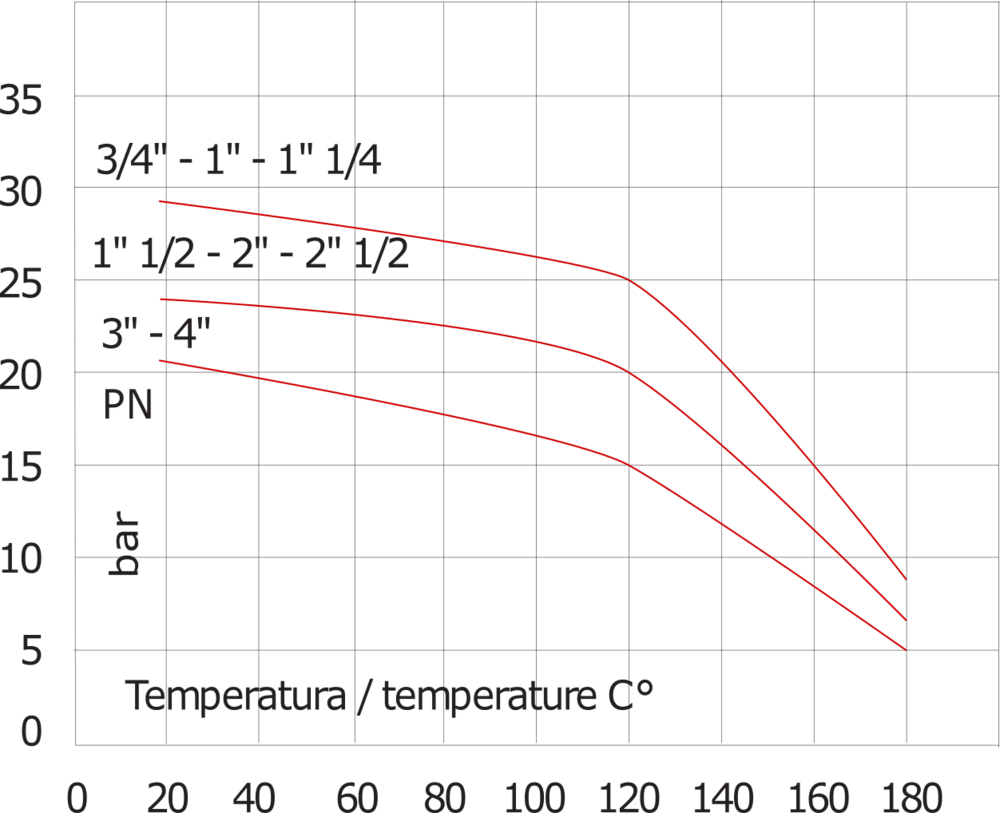

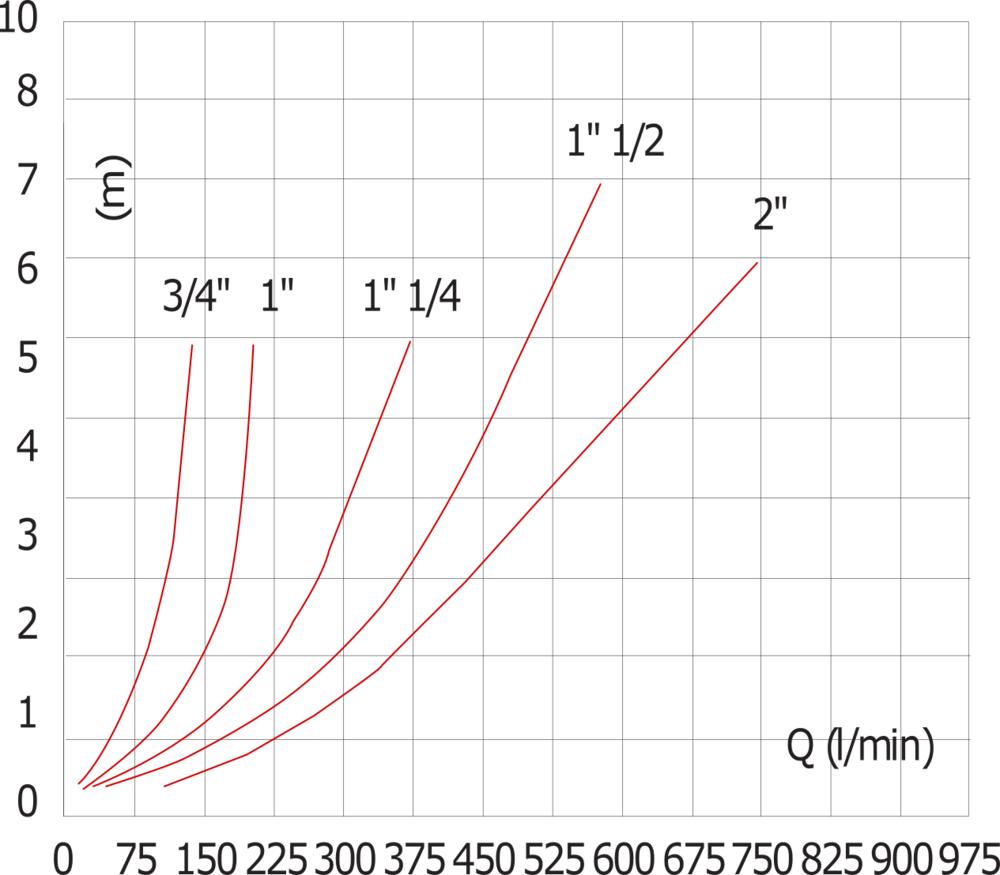

1 1/4 inch check valve with Victaulic connections made of stainless steel 304 with an FKM seal. The minimum differential pressure across the non-return valve must be higher than 0.03 bar (0.44 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -20 and 150° C (-4 to 302° F). The Kv-value is 31.5 m3/h (525 l/min @1 bar pressure). In imperial units: Cv = 36.41 GPM @ 1 psi pressure.
Contains 3 pieces
- Regular price
- $129.10
Description
1 1/4 inch check valve with Victaulic connections made of stainless steel 304 with an FKM seal. The minimum differential pressure across the non-return valve must be higher than 0.03 bar (0.44 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -20 and 150° C (-4 to 302° F). The Kv-value is 31.5 m3/h (525 l/min @1 bar pressure). In imperial units: Cv = 36.41 GPM @ 1 psi pressure.
Victaulic grooved couplings is a pipe connection technique developed by the company Victaulic. The Victaulic coupling (not included) sits in the grooves of both components and clamps the parts together with bolts and nuts. A gasket in the coupling provides a leak tight connection.
Pros:
- This valve has 1 1/4 inch Victaulic grooved coupling connections
- For a wide range of applications thanks to the qualitative corrosion-resistant design
- FKM is suitable for oils, fuels, air, water and many chemicals
Cons:
- FKM is not suitable for boiling water or steam. EPDM or PTFE are suitable alternatives in this case
- 304 is less resistant than 316 stainless steel
Mondeo IDRJA series
The Mondeo IDRJA series check or foot valves are fabricated from pressed stainless steel. This production method allows high performance combined with competitive pricing. The products are degreased, pickled and electropolished. They're available in 304 and 316 stainless steel with a wide variety of sealing materials. Versions are available with antipollution control, drinking water approvals, suitable for heavy duty, with male and female connections, with flange connections, with NPT threads, with Victaulic connections or with a connection for air feeding.
