71 - G1-1/4'' 3-Way (T) Ball Valve F/F/F
Notice: This product is discontinued, a possible alternative is BL3BMT-212
3-Way ball valve T-bore with G1-1/4 inch threads (F/F/F) and lever for open/close control. 25mm nominal diameter and max pressure 25 bar. For i.e. water, oil, air etc. Temperature range from -20 to 150°C. Nickel plated brass hard chromed ball and PTFE seals.
Notice: This product is discontinued, a possible alternative is BL3BMT-212
Description

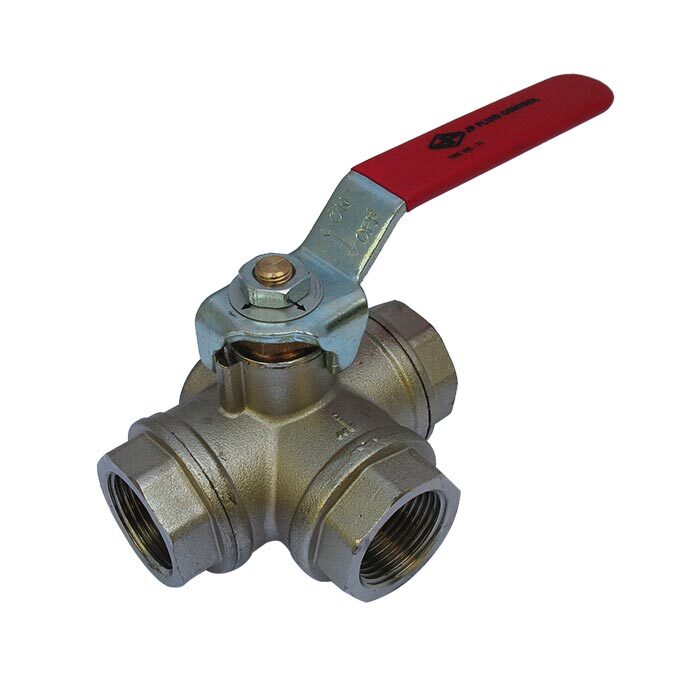

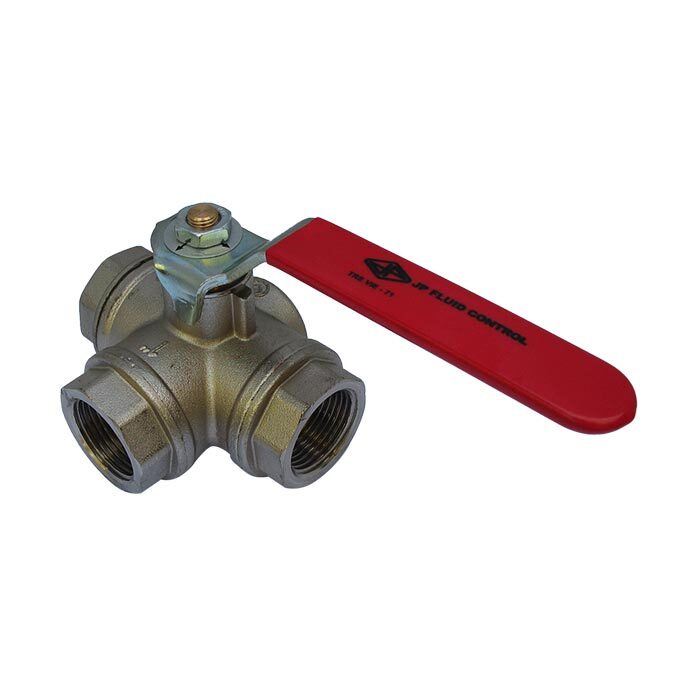

3-Way (T-bore) ball valve of nickel plated brass from JP Fluid Control with G1-1/4 inch pipe threads (BSPP) and a nominal diameter of 25mm. The valve has a pvc coated lever for manual control. The ball valves in the 71-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 71 |
| Function | 3-way (T-bore) |
| Diagram |  The ports overlap during rotation. |
| Ports | G1-1/4 BSP (F/F/F) |
| Housing | Nickel plated brass (CW 617N) |
| Ball | Hard chrome plated brass |
| Seals | PTFE (teflon) |
| Nominal Diameter | 25 mm |
| Kv value | 21 m3/h |
| Operation | Lever (pvc coated) |
| Max pressure | 25 bar |
| Temperature | -20°C .. 150°C |
Installation
The valve has female thread on all three ports (1-1/4 inch). This is BSPP (British Standard Pipe Parallel). With our range of
