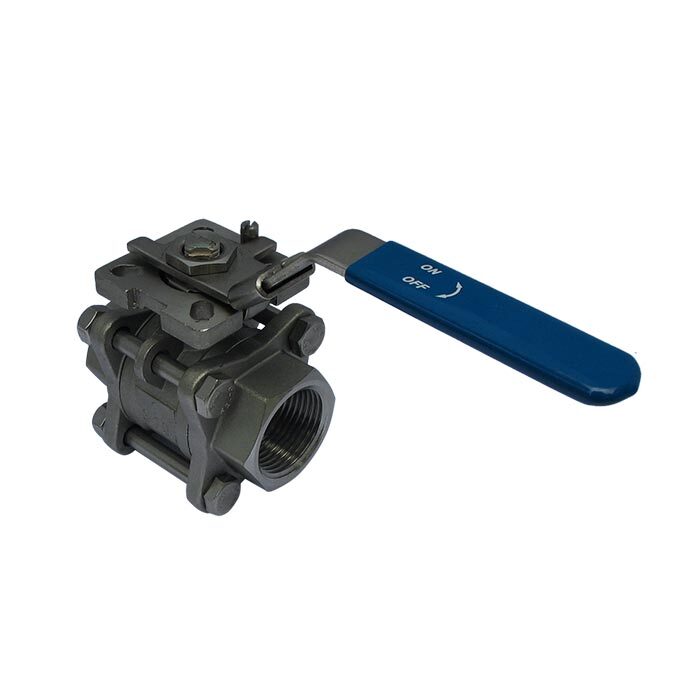

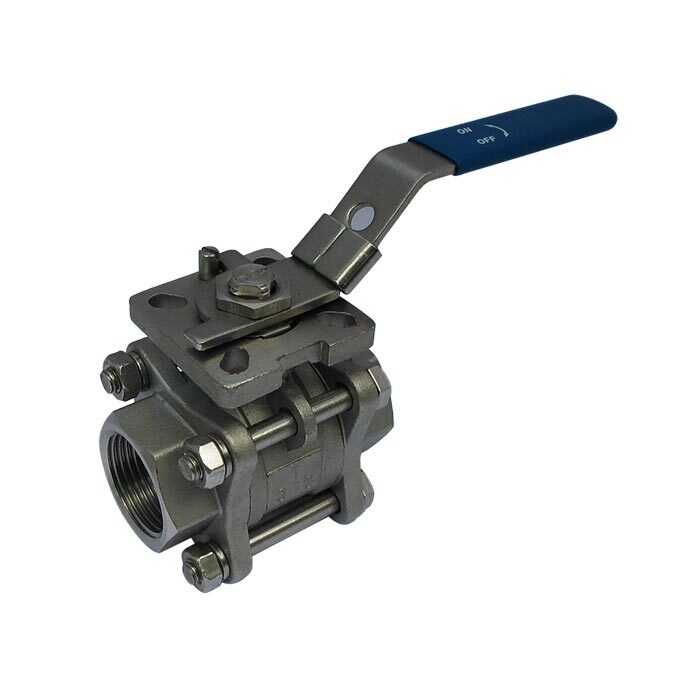

665 - G3/8'' 2-Way Ball Valve 3-Piece Stainless Steel Full Bore ISO-Top
Notice: This product is discontinued and replaced by BL2SA3-038
2-Way ball valve (3-piece) with G3/8 inch threads (F/F) and ISO-Top (F03) and lever for open/close control. 12.7mm nominal diameter and max pressure 85 bar. Temperature range from -40 to 220°C. Stainless steel housing with stainless steel ball and PTFE seals.
Notice: This product is discontinued and replaced by BL2SA3-038
Description
2-Way ball valve of stainless steel with 3-piece construction from JP Fluid Control with G3/8 inch pipe threads (BSPP) and a full bore (12.7 mm). The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 665-series of JP Fluid Control are characterized by long life.
Technical Specifications
Parameter | Value |
---|---|
Series | 665 |
Function | 2-way |
Ports | G3/8 BSP (F/F) |
Housing | Stainless steel (AISI 316) |
Ball | RVS (AISI 316) |
Seals | PTFE (teflon) |
Nominal Diameter | 12.7 mm (full bore) |
Kv value | 15 m3/h |
Operation | Lever + ISO 5211 flange (for actuator mounting) |
ISO 5211 flange | F03 |
Max pressure | 85 bar |
Temperature | -40°C .. 220°C |
Installation
The valve has female thread on both sides (3/8 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature - 665-series.
