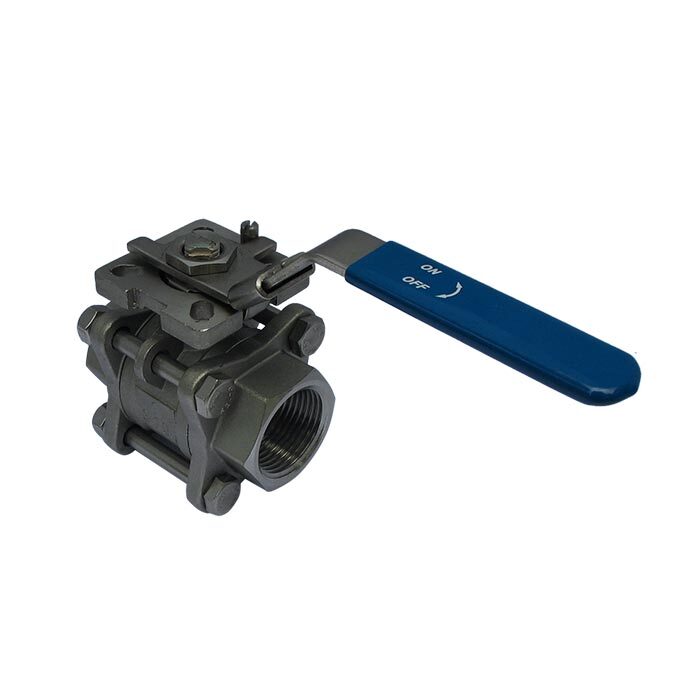

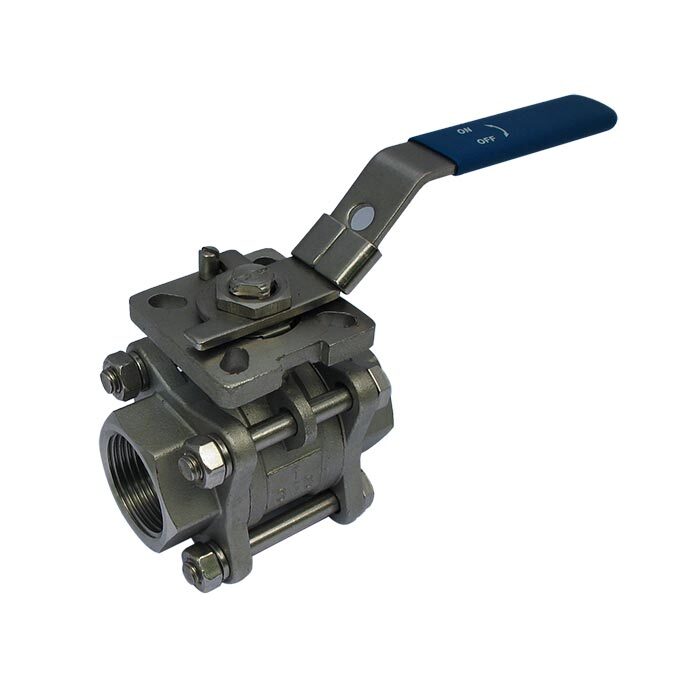

665 - G1/2'' 2-Way Ball Valve 3-Piece Stainless Steel Full Bore ISO-Top
Notice: This product is discontinued, a possible alternative is BL2SA3-012
2-Way ball valve (3-piece) with G1/2 inch threads (F/F) and ISO-Top (F03,F04) and lever for open/close control. 15mm nominal diameter and max pressure 85 bar. Temperature range from -40 to 220°C. Stainless steel housing with stainless steel ball and PTFE seals.
Notice: This product is discontinued, a possible alternative is BL2SA3-012
Description
2-Way ball valve of stainless steel with 3-piece construction from JP Fluid Control with G1/2 inch pipe threads (BSPP) and a full bore (15 mm). The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 665-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 665 |
| Function | 2-way |
| Ports | G1/2 BSP (F/F) |
| Housing | Stainless steel (AISI 316) |
| Ball | RVS (AISI 316) |
| Seals | PTFE (teflon) |
| Nominal Diameter | 15 mm (full bore) |
| Kv value | 20 m3/h |
| Operation | Lever + ISO 5211 flange (for actuator mounting) |
| ISO 5211 flange | F03 and F04 |
| Max pressure | 85 bar |
| Temperature | -40°C .. 220°C |
Installation
The valve has female thread on both sides (1/2 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature - 665-series.
