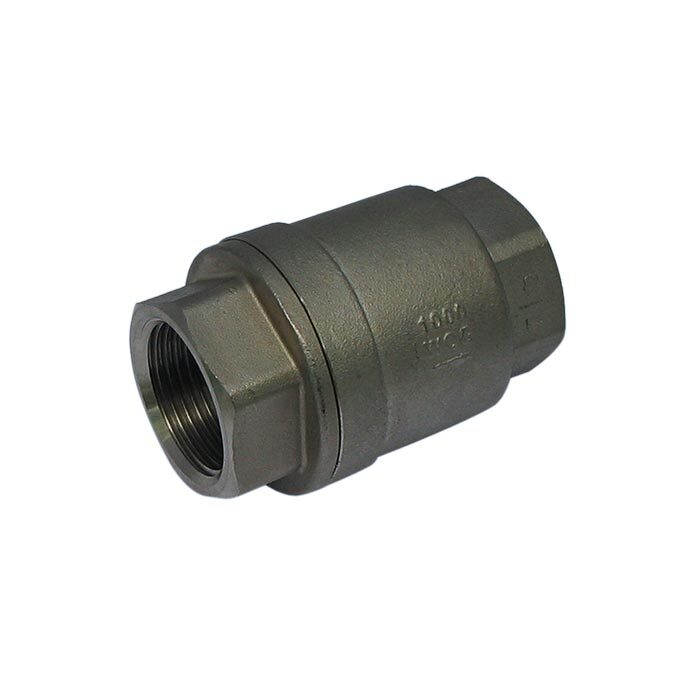

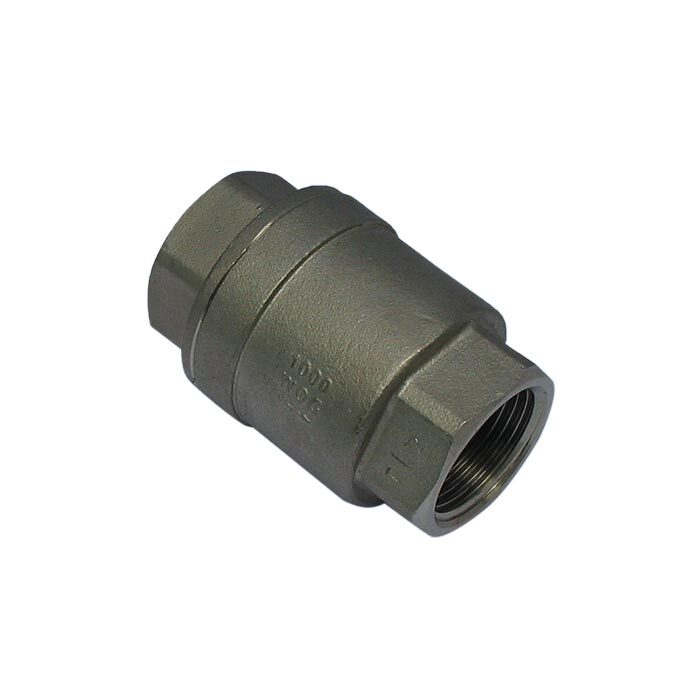

655 - G3/8'' Check Valve Stainless Steel PTFE F/F 64bar

Notice: This product is discontinued

Discontinued
655 - G3/8'' Check Valve Stainless Steel PTFE F/F 64bar
655 - G3/8'' Check Valve Stainless Steel PTFE F/F 64bar
655 - G3/8'' Check Valve Stainless Steel PTFE F/F 64bar
655 - G3/8'' Check Valve Stainless Steel PTFE F/F 64bar
Reference: 655S038
Brand: JP Fluid Control

G3/8 inch (F/F) check valve (brand JP Fluid Control) made of stainless steel with PTFE seal. For a maximum pressure of 64 bar and temperature range of -25 to 180°C.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

G3/8" Stainless steel check valve with parallel thread (BSPP) and PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.1 bar. The valve has a light spring to close the valve. The maximum operating pressure is 64 bar and the valve is suitable for temperatures between -25 and 180°C.

Downloads

Safety instructions
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
3/8 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
Teflon (PTFE)
Recommended for
Water and steam, Water (up to 60°C), Air, Carbon dioxide, Dilute acids and bases, Strong acids and bases, Oil, Fuel, Solvents, Alcohols, Lubricant, Combustible gases, Sea water, Demineralized water
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
64
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-25
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
180
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0.1
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
Stainless steel 316 (1.4401)
Valve bore (mm)
10
Valve shape
The shape of the housing.
Inline spring closed
Model
Straight
Surface protection
The type of surface protection of the component.
Untreated
Width (mm)
The product's width without packaging.
31
Height (mm)
The product's height without packaging.
54
