6-Way Belimo Characterized Valve Rp3/4 Kvs4 R3020-4-4-B2

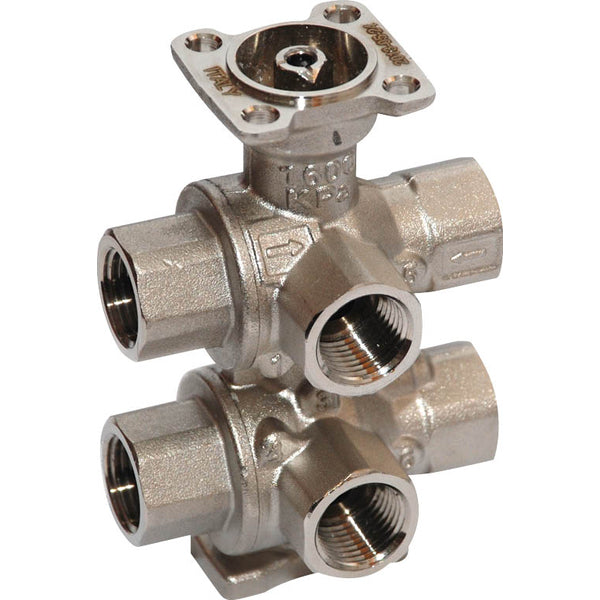

This is a Belimo 6-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between 6 and 80 °C (43 to 176 °F). The Kv value 1 of the valve is 4 m3/h, equivalent to a Cv-value of 4.63 gpm. The Kv value 2 of the valve is 4 m3/h, equivalent to a Cv-value of 4.63 gpm. The valve is designed for use with the Belimo 3-point or modulating actuator. Installing Belimo actuators on this valve is made easy due to the central bolt design. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

Pros:

• The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
• Very easy installation of Belimo actuators with the central bolt

Series:

The Belimo ball valve series offers innovative solutions for thermal heating and cooling systems. These valves feature two sequences, with a 90° rotary actuator providing either switching or modulating control on the water side. Specifically designed for closed cold and warm water systems, they operate seamlessly to ensure optimal performance. Available in a variety of sizes, ranging from DN15-50, the Belimo ball valve series caters to a wide range of system requirements. The series embodies Belimo's commitment to quality, efficiency, and reliability, making it a trusted choice for thermal heating and cooling needs.
