50 mm NC Pneumatic Stainless Steel Actuator - 2060 - 339519
Notice: This product will be discontinued in the future

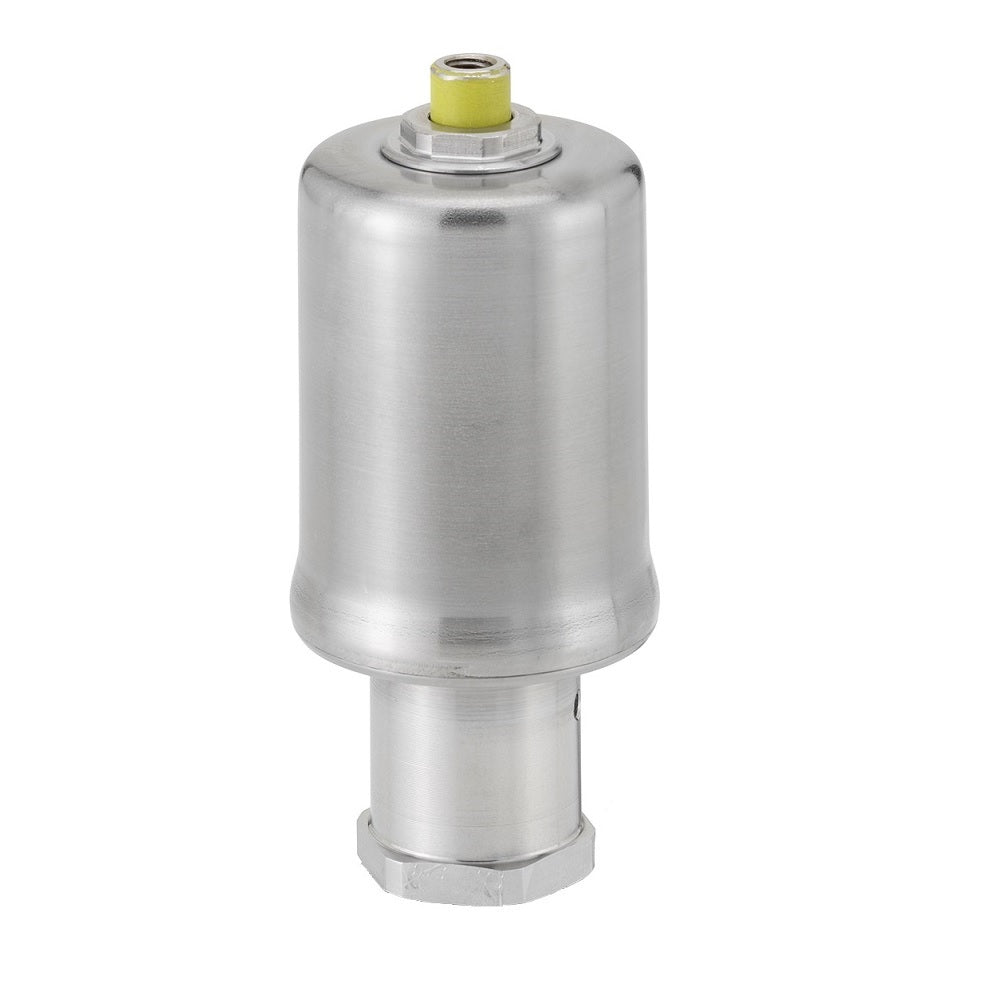

This pneumatic actuator, for series 2060 angle seat valves, has a stainless steel housing with a 50 mm size. Normally closed (NC), which means the valve opens when air is applied. The stainless steel housing is durable, suitable for corrosive media and harsh environments. Suitable for media temperatures ranging from -10 to 185°C (14 to 365°F).
Notice: This product will be discontinued in the future
Description
This pneumatic actuator, for series 2060 angle seat valves, has a stainless steel housing with a 50 mm size. Normally closed (NC), which means the valve opens when air is applied. The stainless steel housing is durable, suitable for corrosive media and harsh environments. Suitable for media temperatures ranging from -10 to 185°C (14 to 365°F).
Pros:
- The stainless steel housing is durable, suitable for corrosive media and harsh environments
Series
The Bürkert type 2060 angle seat valves with stainless steel actuators are pneumatically operated and meet the demands of tough process environments. Self-adjusting spindle sealing guarantees long lifetime and sealing integrity. Cleanability and robustness are ensured by laser welding. Using a ducted exhaust air port, the actuator can be operated isolated from the environment for optimum longevity and hygiene. High flow rates are attained with the optimized stainless steel angle seat body. In addition to conforming to EC Directive 1935/2004, variants that are FDA-compliant are also available.
