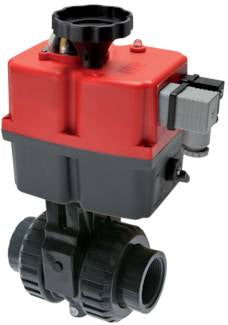

32mm 24-240V AC/DC Fail-Safe VDL 2-way PVC Ball Valve

This electrical actuator with fail safe function is offered in combination with a 2-way ball valve. It can turn the valve from 0-90 degrees in 9 seconds with an operating torque of 20 Nm (higher break torque so please see the manual). It requires a supply voltage of 24-240 V AC/DC, has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. It is also equipped with a battery safety return (BSR) as an electronic safety function. If power is lost, the battery will power the actuator enough to put the valve back to its normal state (normally open/closed depends on how it is mounted). As standard, it does have a manual operation cogwheel for manually turning the valve if needed. The actuator is mounted on the ball valve via the ISO 5211 F03, F04 or F05 flange (14 mm). The 2-way PVC valve has two connection points of 32 mm true union sockets. The medium flows through a 25 mm bore (Kv value of 42 m3/h) and the temperature can be between 0 – 60 °C under 16 bars. It has a spindle seal material of EPDM. With the actuator’s durable polyamide (PA) housing, it gives the unit a protection of IP67 for an environment temperature of -20 till 70 °C. Before connecting the actuator, please read the manual carefully.

Pros:

• It is equipped with a battery safety return (BSR) to power the actuator to rotate the valve back to its normal state
• It has a robust IP67 housing
• As standard, it does have a manual operation cogwheel for manually turning the valve if needed
• It has a clear visual position indicator to see the valve’s state

Cons:

• In comparison to a pneumatic actuator of the same size, the operating speed is slower

J4C series

VDL Ball valve

The VDL series ball valves are reliable 2-way ball valves with a PVC housing. The ball is also made of PVC and the valve seats are made of EPDM. The valve is suitable for various media, such as seawater, most acids and bases, and organic solvents up to 16 bar. Suitable for temperatures between 0 and 60 degrees Celsius and available from size 32 mm to 63 mm. Ball valves from the this series all have an ISO 5211 top flange (F05, square 14mm ) which makes the mounting of an actuator possible.

J4C Actuator

The J4C high voltage electric valve actuators from manufacturer J+J offers an impressive list of standard features that include protection against damage from over-torque or condensation. Actuators are also available with different options like fail-safe BSR (Battery Safety Return) or modulating called DPS (Digital Positioning System). The series has an operating torque range between 20-300 Nm.
The J4C fail-safe or modulating electric actuator is the same as the standard on-off J4C actuator but a BSR and/or a DPS kit is added inside the actuator. The J4C BSR fail-safe actuator can be set to fail open or fail closed. The J4C DPS modulating actuator can be controlled with 4-20 mA or 0-10 V (0-10 V on request).

Spare parts

Ball valve: 6P14P032
Actuator: V2S5X

Note: This product is delivered in separate parts, but with the required mounting accessories.
