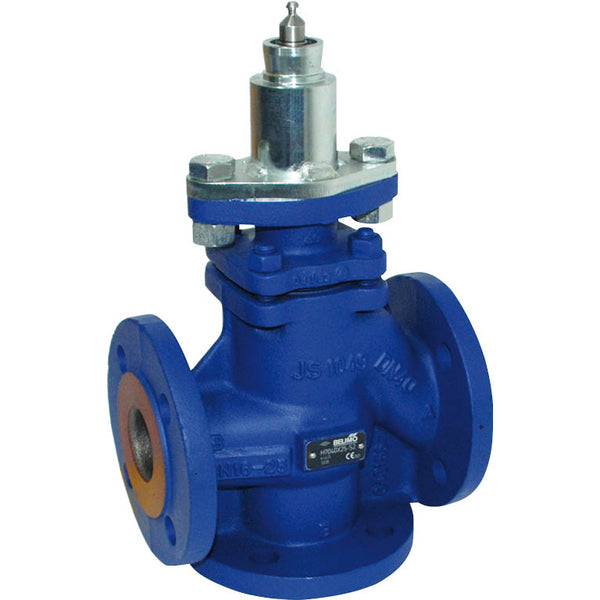

Belimo 3-Way Globe Valve Flange DN25 Kvs10 Cast Iron PTFE PN25 H7025X10-S2

Belimo 3-Way Globe Valve Flange DN25 Kvs10 Cast Iron PTFE PN25 H7025X10-S2
Image may vary slightly
See specifications for accurate information.
Reference: V2VHB
Brand: Belimo
Mfr. Part: H7025X10-S2

This is a Belimo 3-way globe valve with a coated cast iron housing and TEFLON (PTFE) sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. The maximum pressure differential is 10 bar (145 psi). The valve can operate between 5 and 200 °C (41 to 392 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 12 gpm. The valve's stroke length is 20 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

View all
Note: product cannot be returned
Regular price
$1,304.39 USD
excl VAT

In stock Ships in 14d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Expected delivery in 16 - 17 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way globe valve with a coated cast iron housing and TEFLON (PTFE) sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. The maximum pressure differential is 10 bar (145 psi). The valve can operate between 5 and 200 °C (41 to 392 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 12 gpm. The valve's stroke length is 20 mm. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. This valve is suited for use with the Belimo 3-point or modulating globe valve actuator. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

Pros:

  • Equal percentage flow characteristic, the bypass has a linear characteristic

Series:

The Belimo H6-X-SP2 series is designed for closed, high-temperature hot water and steam systems within non-critical ranges. This series excels at modulating control of air-handling and heating systems on the water side. Its size range is from DN15-50, ensuring compatibility with various system sizes. The primary focus of this series is to provide reliable and efficient operation in a range of environments. Its robust construction ensures durable performance, making it a reliable choice for maintaining optimal system performance.
