Belimo 3-Way Ball Valve G3/4 Kvs2.3 L-Port ZoneTight C515Q-H

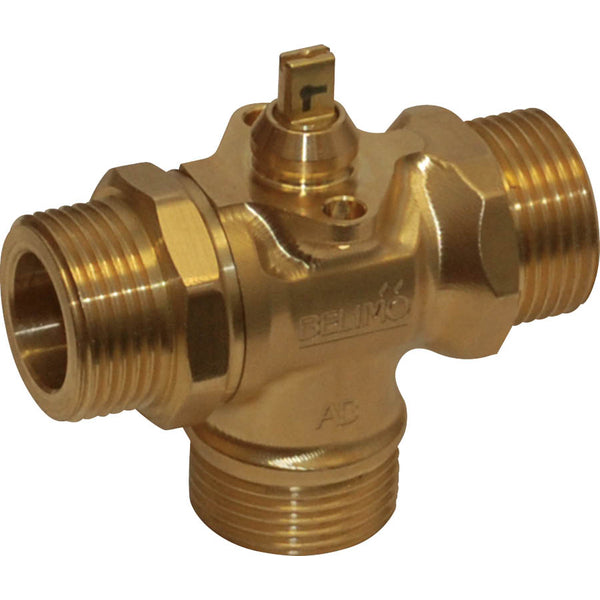

This is a Belimo 3-way ball valve with a brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 15 and the port size is G 3/4 inch with male threads. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 100 °C (36 and 212 °F). The Kv value of the valve is 2.3 m3/h, equivalent to a Cv-value of 3 gpm. This valve requires a separate Belimo open/close actuator, which is not included. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place.
- Regular price
- $66.78 USD
Description
This is a Belimo 3-way ball valve with a brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 15 and the port size is G 3/4 inch with male threads. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 100 °C (36 and 212 °F). The Kv value of the valve is 2.3 m3/h, equivalent to a Cv-value of 3 gpm. This valve requires a separate Belimo open/close actuator, which is not included. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place.
Pros:
- Very easy installation of Belimo ZoneTight actuators, just click and done
Series:
The Belimo C3-Q series is specifically designed for closed cold and warm water systems. This series is ideal for switching functions and 2-point controls on the water side of air-handling units and heating systems. One of its key features includes the snap-assembly of the actuator, which simplifies the installation process. The C3-Q series accommodates a wide range of pipe diameters, from DN15-50, allowing for versatile use across many different applications. The series ensures reliable performance and durability, making it an excellent choice for most HVAC systems.
