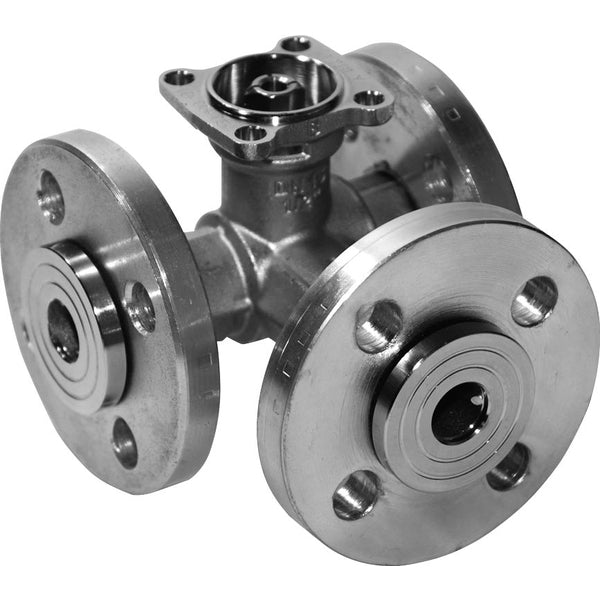

Belimo 3-Way Ball Valve DN32 Flange Kvs32 T-Port R7032R-B3
This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 32 and the flange size is DN 32. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between -10 and 100 °C (14 and 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37 gpm. This valve requires a separate Belimo open/close actuator, which is not included. Installing Belimo actuators on this valve is made easy due to the central bolt design.
- Regular price
- $482.59 USD
Description
This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 32 and the flange size is DN 32. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between -10 and 100 °C (14 and 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37 gpm. This valve requires a separate Belimo open/close actuator, which is not included. Installing Belimo actuators on this valve is made easy due to the central bolt design.
Pros:
- Very easy installation of Belimo actuators with the central bolt
Series:
The Belimo R2-S series is designed for open and closed cold and warm water systems. With the ability to operate in air-handling units and heating systems, the series offers shut-off functions on the water side and 2-point controls. One key feature is its air-bubble tight capability, ensuring efficient operations. The series accommodates a range of applications, suitable for sizes ranging from DN15-50. This makes it a versatile choice for different settings. This series is a reflection of Belimo's commitment to providing reliable and efficient solutions.
