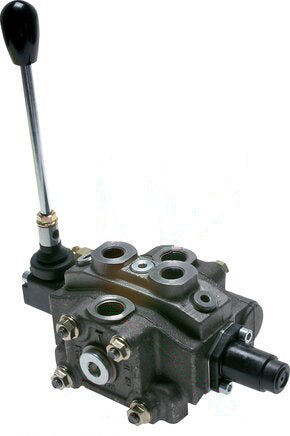

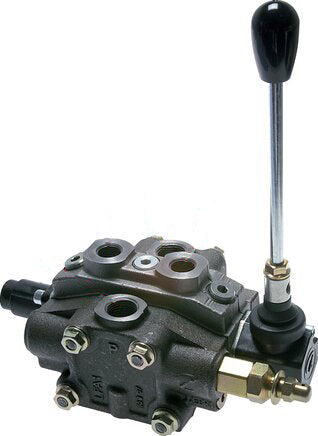

3/3-Way Hydraulic Hand Lever Valve Section Single-Acting 320bar

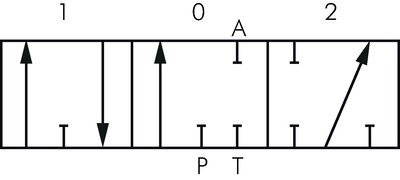

3/3-way hand lever section for modular hydraulic control blocks, up to 320 bar. For single-acting cylinders. One lever position feeds oil to port A, the other releases A to tank. In neutral, A is blocked and the pump flow returns pressureless to tank through the neutral bypass channel. The lever springs back to neutral. Port A G3/8, nominal flow up to 50 l/min. NBR seals, for mineral-oil hydraulics from -30 to +90 °C.
- Regular price
- $198.14 USD
We sell only to registered businesses
Description

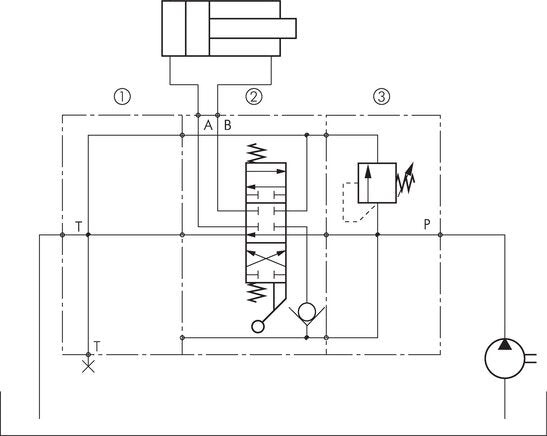

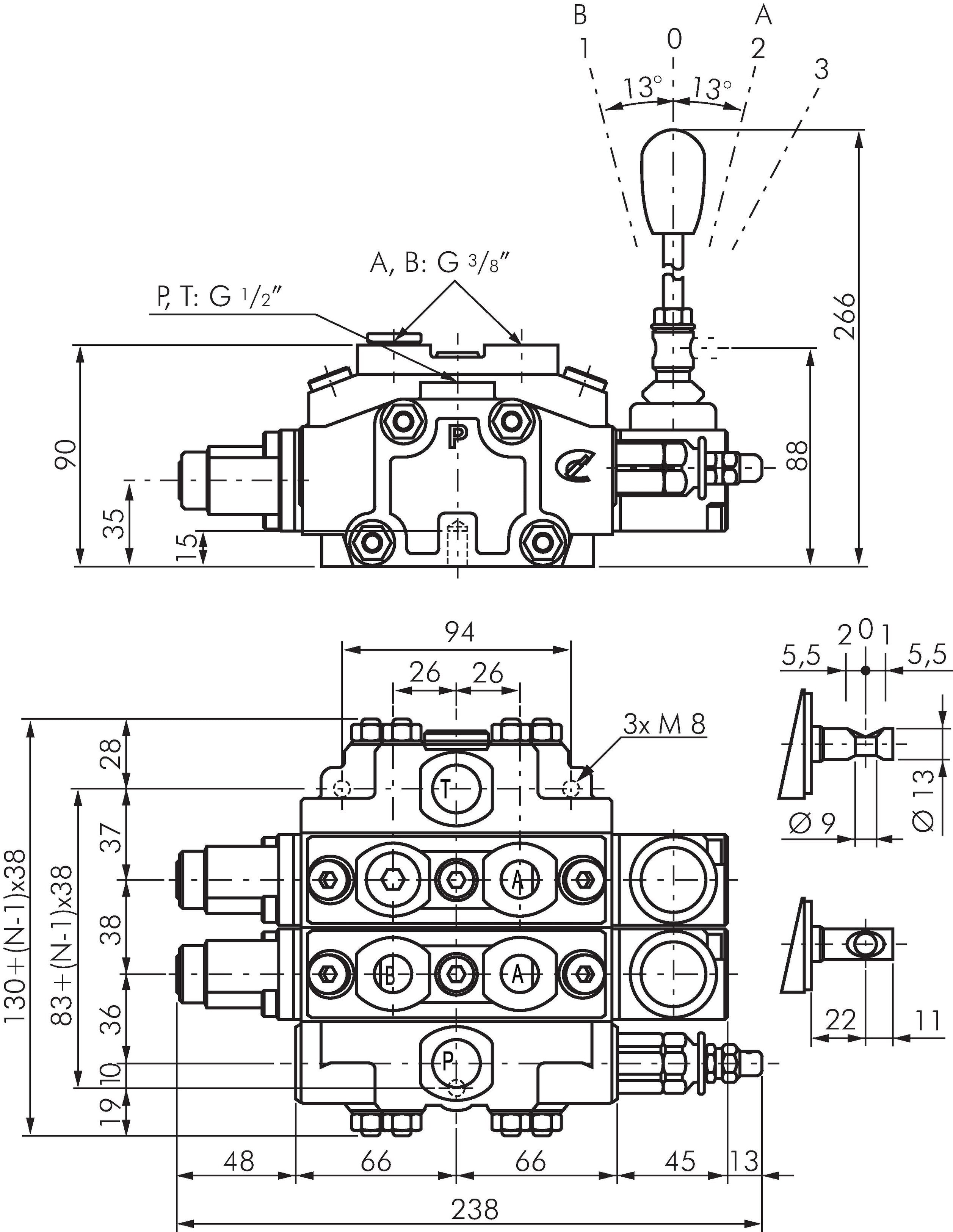

Use it for a single-acting cylinder that retracts under its own weight or a spring. Move the lever 13° one way to extend the cylinder and the other way to let it retract; in neutral, A is blocked and the cylinder holds its position. A neutral bypass channel runs through every section. In neutral it is open, so the pump flow passes on to the next section and back to tank without pressure, which suits a gear pump. Order the inlet section, outlet section and matching tie rod set separately. For double-acting cylinders, choose a 4/3-way section.
Pros:
- Cylinder holds its position in neutral (A blocked)
- Pressureless circulation in neutral, suits gear pumps
- Spring return to neutral, detent kits available
- Up to nine sections in one control block
Cons:
- Needs an inlet section, an outlet section and a tie rod set - order them separately
- Single-acting only - for double-acting cylinders, choose a 4/3-way section
Series:
