Image may vary slightly
See specifications for accurate information.
Reference: P24US
Brand: Knocks
Mfr. Part: K.01

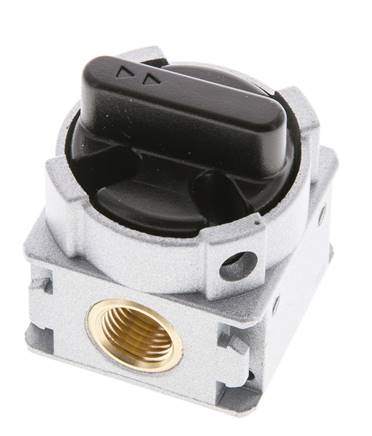

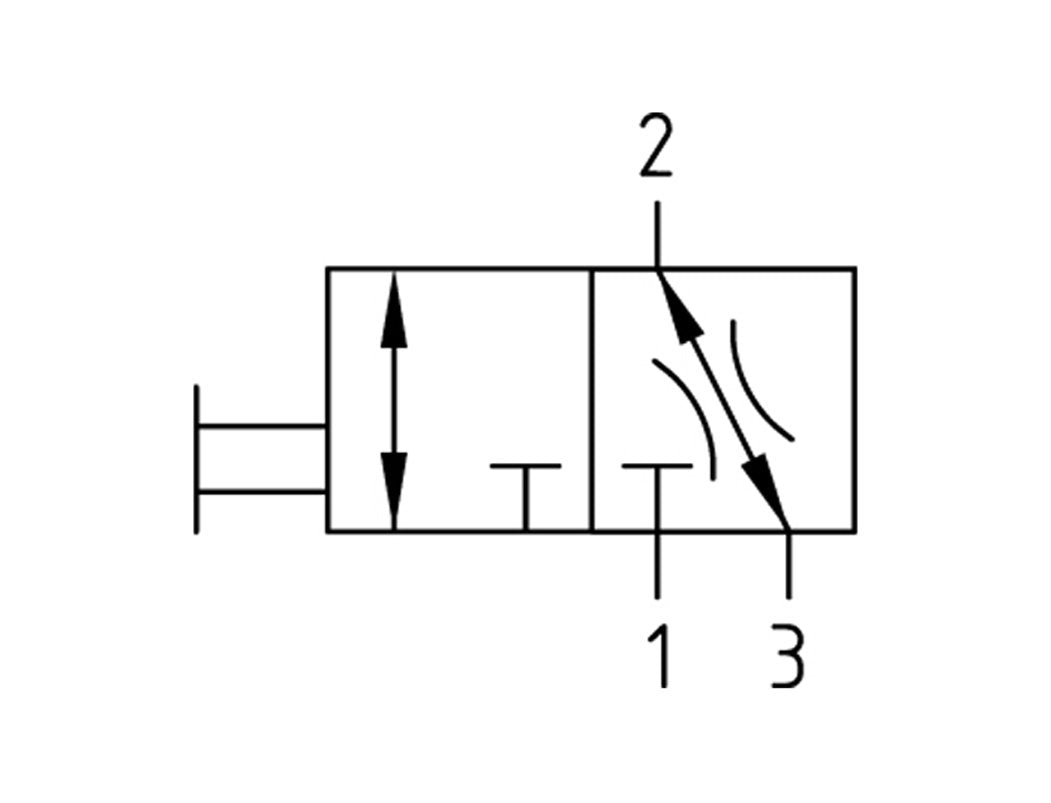

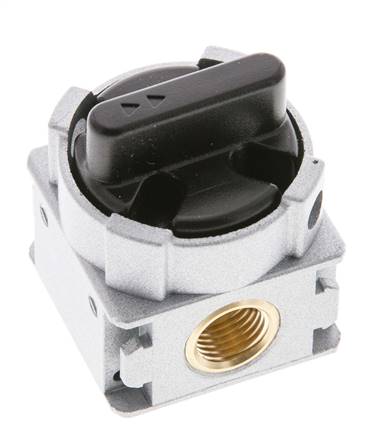

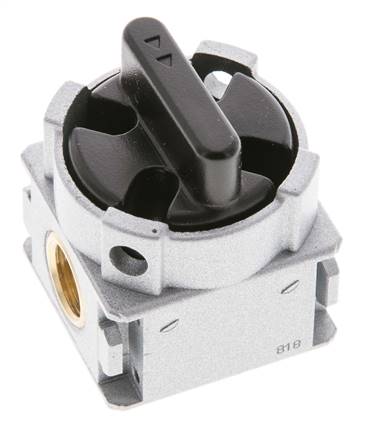

This self-venting (3/2) shut-off valve is used for pressurizing and exhausting the pneumatic systems. It can be used independently or in conjunction with an FRL assembly. By quickly preventing air from reaching part of the system in use, shut off valves make servicing equipment easier without affecting the rest of the system. The use of a self-venting valve is often a legal requirement to prevent non-authorized personnel from unintentionally pressurizing a machine. The valve has G 1/4 inch connection ports, the maximum flow rate is 1800 l/min and the maximum working pressure is 12 bar (174.0 psi). A rotary knob is used to switch the valve. The threaded connection with the silencer allows for ducted exhaust. This ball valve can be locked by padlock (not included).

View all
Regular price
$24.64 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 17 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

This self-venting (3/2) shut-off valve is used for pressurizing and exhausting the pneumatic systems. It can be used independently or in conjunction with an FRL assembly. By quickly preventing air from reaching part of the system in use, shut off valves make servicing equipment easier without affecting the rest of the system. The use of a self-venting valve is often a legal requirement to prevent non-authorized personnel from unintentionally pressurizing a machine. The valve has G 1/4 inch connection ports, the maximum flow rate is 1800 l/min and the maximum working pressure is 12 bar (174.0 psi). A rotary knob is used to switch the valve. The threaded connection with the silencer allows for ducted exhaust. This ball valve can be locked by padlock (not included).
