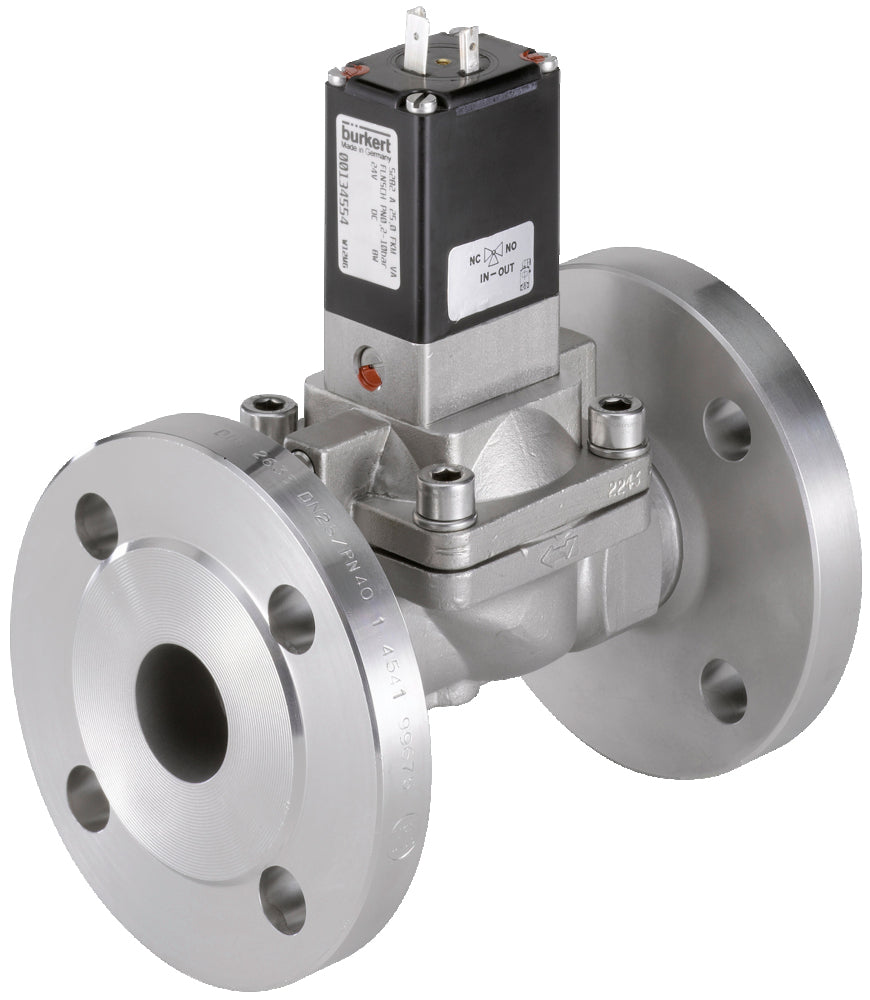

Flange DN50 Cast iron (GG25) 24VDC Solenoid Valve 5282 202994

Notice: This product is discontinued

Discontinued
Flange DN50 Cast iron (GG25) 24VDC Solenoid Valve 5282 202994
Flange DN50 Cast iron (GG25) 24VDC Solenoid Valve 5282 202994
Reference: 202994
Brand: Burkert

Bürkert 2/2-way solenoid valve (type 5282) with DN50 flange and a 24V DC coil. NC (default) and NO setup are both possible and indirect operating, so a small differential pressure required. Suitable for slightly contaminated and aggressive media (media separation). For media with max 90°C at a differential pressure of 0.2-16 bar. Housing of cast iron (GG25) with EPDM sealing and a 50 mm orifice. The Kv-value is 40 m3/h (666.67 l/min at dp=1 bar water). Manual override feature. Prevent water hammer with the adjustable closing time. Electrical position feedback.


View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Bürkert indirect operating 2/2-way solenoid valve with DN 50 flange and 24V DC (direct current) coil. The valve has a cast iron (GG25) housing with EPDM sealing and an orifice size of 50 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. However, the function can easily be changed between NC and NO by rotating the pilot valve on the top side by 180 degrees. Suitable for systems with a differential pressure of 0.2-16 bar and a maximum temperature of 90°C. The valve has a Kv-value of 40 m3/h, this translates to a flow rate of 666.67 l/min at the differential pressure of 1 bar (for water). This model is media separated and can therefore be used for slightly contaminated and aggressive media. The cast iron housing is suited for neutral fluids. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Manual override feature can be used to commission the system. You can separately adjust the opening and closing time of the valve with set screws, for example to prevent water hammer. Energy efficient design for a long product lifecycle. The open or closed status is indicated with an electrical position feedback signal. The valve has an IP65 rating if properly connected. Suitable for cold media with temperatures from -25°C.

Important advantages

  • Including an electronic sensor for determining the state of the valve
  • The valve position can be determined with an electrical feedback signal
  • Can be used with slightly contaminated or aggressive media thanks to the media separated design
  • As standard, it is equipped with a robust manual override for easy comissioning and in case of a power outage
  • The response times (open and close) can be adjusted separately
  • Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
  • The risk of water hammer is low, thanks to the dampened closing
  • Good protection against the environment thanks to the IP65 rating
  • Bürkert design: proven reliability & durability

5282 series

The Bürkert 5282 solenoid valve is used for the most demanding applications. The valve is built to last. The media separation makes the 5282 also suitable for aggressive media. Other interesting features are the standard manual override and adjustable opening and closing times. Furthermore, the circuit function can easily be changed from NC to NO, by simply rotating the 3/2 way pilot valve on top of the main valve body. The 5282 valve is available with a wide variation of housing and sealing materials. The brass housing satisfies all European drinking water requirements. Various ATEX versions are available for potentially explosive environment.

Please note: this product is made to order and can therefore unfortunately not be returned.

Downloads

Manual Burkert 5282 (EN)
pdf
Download

Specifications

Connection size
Choose a connection size that matches the size of the pipe or hose it will be connected to. Alternatively, you can size the valve based on the Kv value for more accuracy.
50 mm
Connection type
Type of connection used for the valve ports.
Flange
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized or de-energized.
Normally closed
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
24 V DC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Cast iron
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
EPDM
Operation
The operating principle of the solenoid valve.
Indirect
Recommended for
Type of fluid or gas that the valve is recommended for.
Water and steam
Min pressure difference (bar)
Minimum pressure difference required for the valve to operate effectively. If the pressure difference is lower, the valve might not operate properly.
0.2
Max pressure (bar)
Maximum pressure difference between the inlet and outlet port.
16
Features
Choose any special solenoid valve features that are important for your application.
Media separation, Manual override, Adjustable response time, Energy efficient (under 9 VA), Position feedback, Anti-waterhammer
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
Cast iron GG 25 (GJL-250)
Valve bore (mm)
The valve bore is the diameter of the orifice, which the media flows through. It has a high impact on the flow rate.
50
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
40
Min temperature (°C)
The minimum temperature of the fluid at which the valve can operate continuously.
-25
Max temperature (°C)
The maximum temperature of the fluid at which the valve can operate continuously.
90
Electrical connection
Type of electrical connection used to connect a power supply to the valve.
DIN-A
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Nominal power (VA)
Rated power consumption of the valve.
8
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
2/2 way
Voltage-type
The type of voltage required for the solenoid valve to operate correctly. Common options include AC or DC voltage.
DC
Flange compression class
The rating that specifies the maximum pressure that the valve can withstand without leaking or failing, based on the flange connection type.
PN 16
Max. ambient temp. (°C)
The highest temperature at which the solenoid valve can operate safely and effectively without experiencing damage or failure.
55
Duty cycle
The maximum amount of time that the solenoid valve can remain energized before it becomes too hot and risks damage or failure.
100%
Peak power (VA)
The maximum amount of electric power that the solenoid valve coil can safely handle without overheating or failing.
11
Indirect effect
Yes
Explosion safety
None
