Belimo Sensor Controlled PI-CCV DN125 Flange Kvs111.6 24VAC/DC BACnet/Modbus/MP-Bus EP125F+MOD

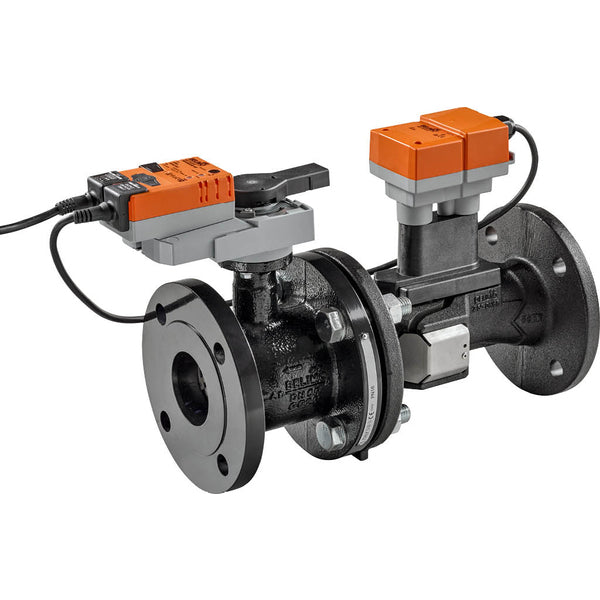

This Belimo Energy Valve consists of a 2-way characterized control valve, a volumetric flow meter, temperature sensors and an actuator. The valve is made of cast iron and has EPDM sealing. The bore diameter of the valve is DN 125 and the flange size is DN 125. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 111.6 m3/h, equivalent to a Cv-value of 129.12 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V DC, ensuring accurate and responsive control in various applications. The actuator has an IP54 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

Pros:

• The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
• Modulating actuator with a control signal of 0-10 V or 2-10 V DC
• Integrated thermal energy meter for monitoring energy consumption

Series:

The Belimo EP-F-MOD series features a 2-way, flanged, characterised control valve with sensor-operated flow control, suitable for closed cold and warm water systems. It operates with a nominal voltage of AC/DC 24 V and utilizes modulating, communicative, and hybrid control. This series is ideal for modulating control of air-handling and heating systems on the water side. Communication is facilitated via BACnet MS/TP, Modbus RTU, Belimo-MP-Bus, or conventional control. Additionally, it converts active sensor signals and switching contacts. Available from DN65-100, it offers versatility for various system requirements.
