Belimo Sensor Controlled PI-CCV Flange 2x2-1/2 Kvs15 24VAC/DC BACnet/Modbus/MP-Bus EN1434 Two Sensors EV050R2+MID

Belimo Sensor Controlled PI-CCV Flange 2x2-1/2 Kvs15 24VAC/DC BACnet/Modbus/MP-Bus EN1434 Two Sensors EV050R2+MID
Image may vary slightly
See specifications for accurate information.
Reference: V2V8H
Brand: Belimo
Mfr. Part: EV050R2+MID

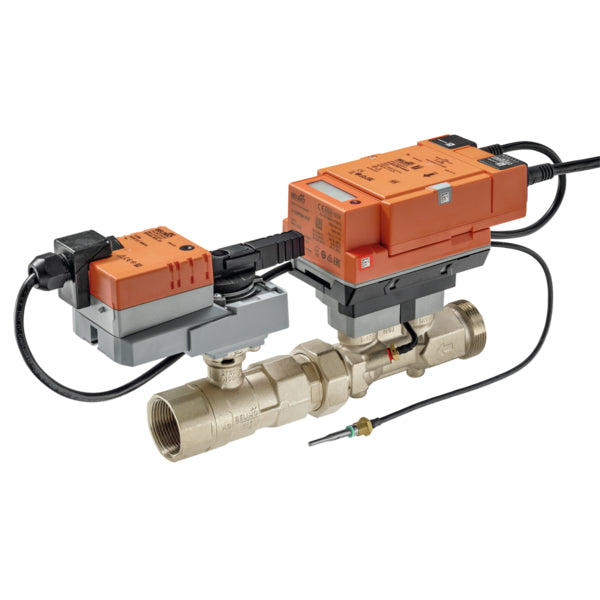

This Belimo Energy Valve consists of a 2-way characterized control valve, a volumetric flow meter, two temperature sensors and an actuator. The valve is made of brass and has EPDM sealing. The bore diameter of the valve is DN 50 and the port size is Rp 2 inch and G 2 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V DC, ensuring accurate and responsive control in various applications. The thermal energy meter currently has a sensor (T2) installed, while the installation of the second sensor (T1) is required at the opposite side of the water circuit onsite. The thermal energy meter complies with EN1434 standards and holds type approval as per the European Measuring Instruments Directive MID 2014/32/EU (MI-004). The thermal energy meter is approved as a heat meter. The actuator has an IP54 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

View all
Note: product cannot be returned
Regular price
$2497.91
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 16 - 17 business days

Description
Specifications
Downloads
Related products

This Belimo Energy Valve consists of a 2-way characterized control valve, a volumetric flow meter, two temperature sensors and an actuator. The valve is made of brass and has EPDM sealing. The bore diameter of the valve is DN 50 and the port size is Rp 2 inch and G 2 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V DC, ensuring accurate and responsive control in various applications. The thermal energy meter currently has a sensor (T2) installed, while the installation of the second sensor (T1) is required at the opposite side of the water circuit onsite. The thermal energy meter complies with EN1434 standards and holds type approval as per the European Measuring Instruments Directive MID 2014/32/EU (MI-004). The thermal energy meter is approved as a heat meter. The actuator has an IP54 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

Pros:

  • The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
  • Modulating actuator with a control signal of 0-10 V or 2-10 V DC
  • The thermal energy meter complies with EN1434 standards
  • Power over Ethernet (PoE) support for optional power supply
  • Integrated thermal energy meter for monitoring energy consumption

Series:

The Belimo EV-MID is a characterized control valve with a thermal energy meter. It's certified for heating applications according to MID and meets the requirements of EN 1434. This 2-way, internal thread valve is designed for closed cold and warm water systems, serving as a modulating control of air-handling and heating systems on the water side. It operates on a nominal voltage of AC/DC 24 V and supports modulating, communicative, and hybrid control. The valve also includes an Ethernet 10/100 Mbit/s, TCP/IP, and an integrated web server. Communication options include BACnet, Modbus, Belimo MP-Bus or conventional control. Power supply is possible through PoE (Power over Ethernet). Additionally, it aids in the conversion of sensor signals and comes in sizes ranging from DN15-50.
