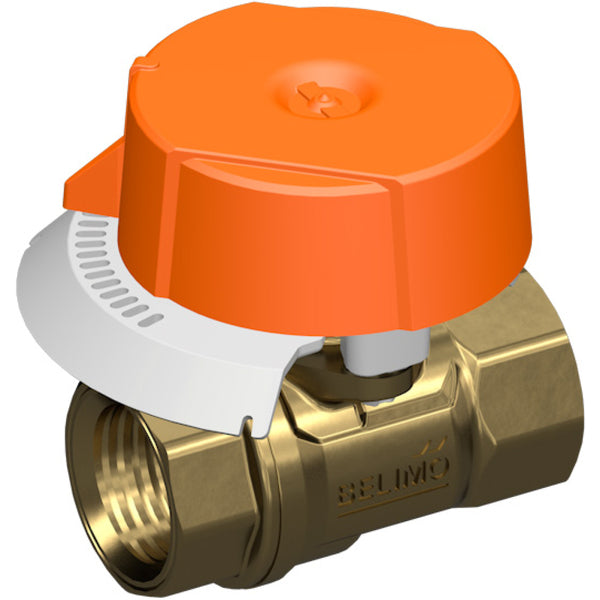

Belimo Characterized Valve Rp3/4 Kvs8 EPDM ZoneTight Flow Limiter C220Q-K/ZCQ-FL

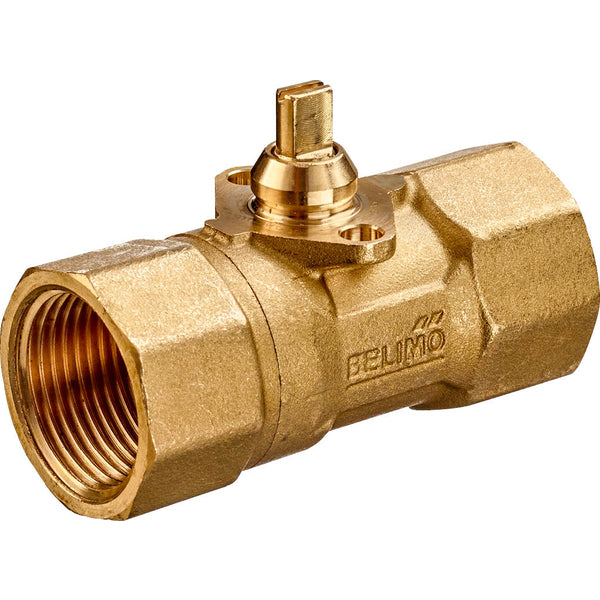

This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 90 °C (36 and 194 °F). The Kv value of the valve is 8 m3/h, equivalent to a Cv-value of 9.26 gpm. The valve is equipped with a flow limiter. The valve is designed for use with the Belimo 3-point or modulating actuator. Installing Belimo actuators on this valve is made easy due to the central bolt design. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
- Regular price
- $89.87
Description
This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 90 °C (36 and 194 °F). The Kv value of the valve is 8 m3/h, equivalent to a Cv-value of 9.26 gpm. The valve is equipped with a flow limiter. The valve is designed for use with the Belimo 3-point or modulating actuator. Installing Belimo actuators on this valve is made easy due to the central bolt design. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits

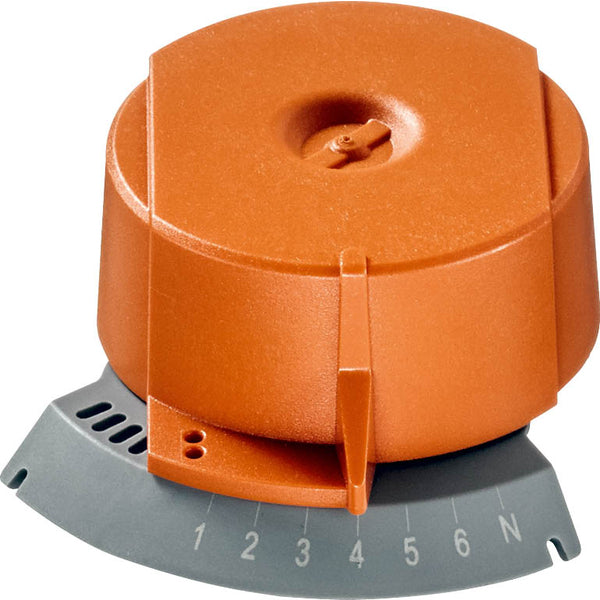

- The valve is equipped with a flow limiter
