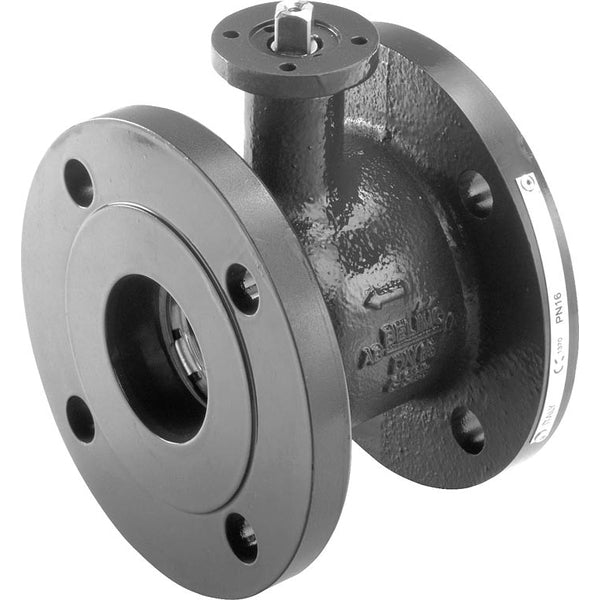

Belimo Characterized Valve Flange DN65 Kvs63 EPDM R6065W63-S8
This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 4 bar (58 psi). The valve can operate between -10 and 120 °C (14 and 248 °F). The Kv value of the valve is 63 m3/h, equivalent to a Cv-value of 72.89 gpm. The valve is designed for use with the Belimo 3-point or modulating actuator. Installing Belimo actuators on this valve is made easy due to the central bolt design. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
- Regular price
- $1064.75
Description
This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 4 bar (58 psi). The valve can operate between -10 and 120 °C (14 and 248 °F). The Kv value of the valve is 63 m3/h, equivalent to a Cv-value of 72.89 gpm. The valve is designed for use with the Belimo 3-point or modulating actuator. Installing Belimo actuators on this valve is made easy due to the central bolt design. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
- Very easy installation of Belimo actuators with the central bolt
