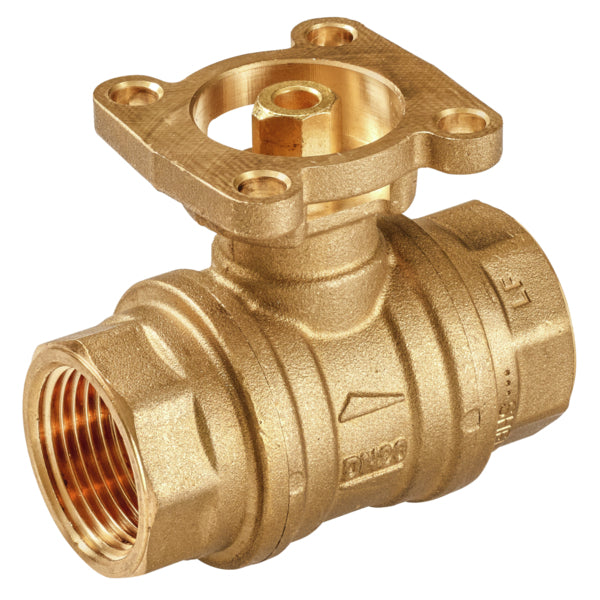

Belimo Ball Valve Rp3/4 Kvs32 Drinking Water R220PW-P
This is a Belimo 2-way ball valve with a brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. The maximum pressure differential is 2 bar (29 psi). The valve can operate between 5 and 100 °C (41 and 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37 gpm. This valve requires a separate Belimo open/close actuator, which is not included. This valve is certified by ACS, DVGW, and WRAS for use with drinking water. Its lead-free (LF) and dezincification resistant (CR) features make this valve resistant to corrosion. Installing Belimo actuators on this valve is made easy due to the central bolt design.
- Regular price
- $85.20 USD
We sell only to registered businesses
Description
This is a Belimo 2-way ball valve with a brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. The maximum pressure differential is 2 bar (29 psi). The valve can operate between 5 and 100 °C (41 and 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37 gpm. This valve requires a separate Belimo open/close actuator, which is not included. This valve is certified by ACS, DVGW, and WRAS for use with drinking water. Its lead-free (LF) and dezincification resistant (CR) features make this valve resistant to corrosion. Installing Belimo actuators on this valve is made easy due to the central bolt design.
Pros:
- Potable water certificate: ACS, DVGW, WRAS
- Lead-free (LF) and dezincification resistant (CR)
- Very easy installation of Belimo actuators with the central bolt
- Designed for open/close operation
Series:
The Belimo R2-PW is a 2-way open/close ball valve with an internal thread, suitable for potable water applications. This series is certified by ACS, DVGW, and WRAS, indicating its compliance with safety and quality standards. Designed to be lead-free and dezincification resistant, it ensures the longevity and reliability of your water systems. The valve has an air-bubble seal to prevent leaks. The Belimo R2-PW series comes in sizes from DN15-50, offering options for different needs.
