160A NH Fuse Load Switch Isolator DIN00 690V - 9344020

160A NH Fuse Load Switch Isolator DIN00 690V - 9344020
160A NH Fuse Load Switch Isolator DIN00 690V - 9344020
160A NH Fuse Load Switch Isolator DIN00 690V - 9344020
160A NH Fuse Load Switch Isolator DIN00 690V - 9344020
Reference: E3T7Q
Brand: Rittal
Mfr. Part: 9344020

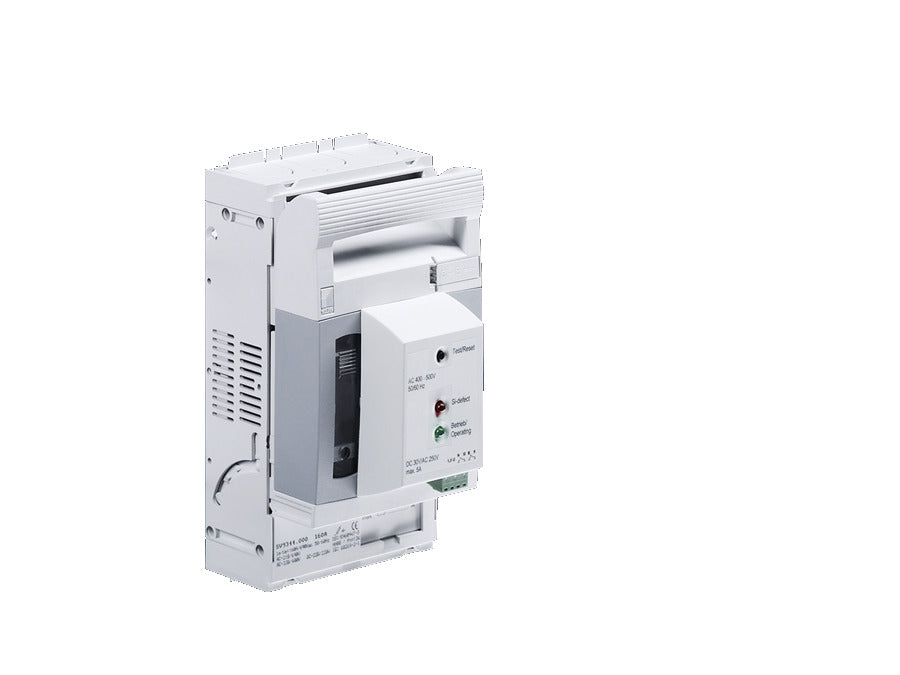

Three-pole fuse load switch isolator rated for 160A at 690V, compliant with DIN00 standards. Features frame terminals supporting 95mm² cables and integrated fuse monitoring. Mounted on a 106x194mm mounting plate with PA6.6 construction material rated UL94-V0. Finished in RAL 7035.

View all
$291.30 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Three-pole fuse load switch isolator rated for 160A at 690V, compliant with DIN00 standards. Features frame terminals supporting 95mm² cables and integrated fuse monitoring. Mounted on a 106x194mm mounting plate with PA6.6 construction material rated UL94-V0. Finished in RAL 7035.

Pros:

  • High voltage rating up to 690V
  • Integrated fuse monitoring system
  • Large 95mm² cable capacity
  • UL94-V0 flame retardant rating

Specifications

Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
160 A
Rated operation power at AC-23, 400 V
80 kW
Conditioned rated short-circuit current Iq
100 kA
Rated short-time withstand current lcw
100 kA
Suitable for fuses
Other
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Frame clamp
Equipped with connectors
No
Suitable for busbar mounting
Yes
Type of control element
Cover grip
Position control element
Front side
Motor drive optional
No
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
IP20
