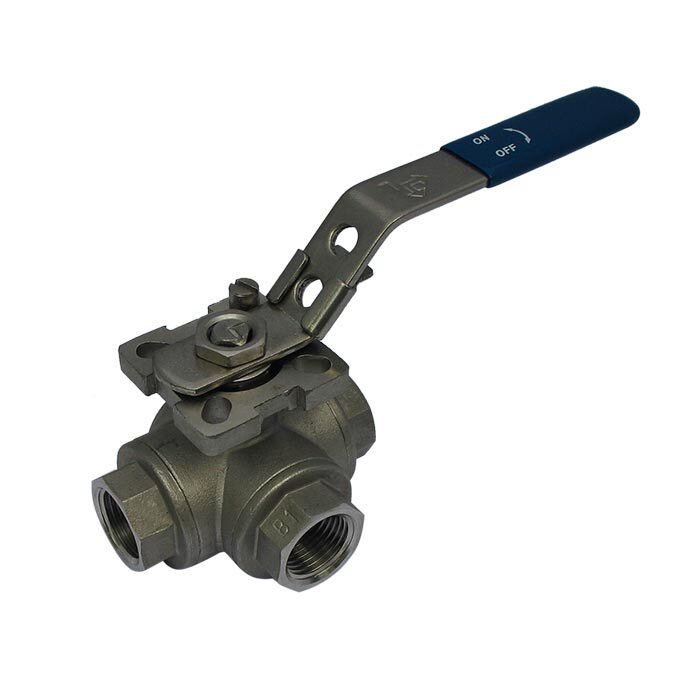

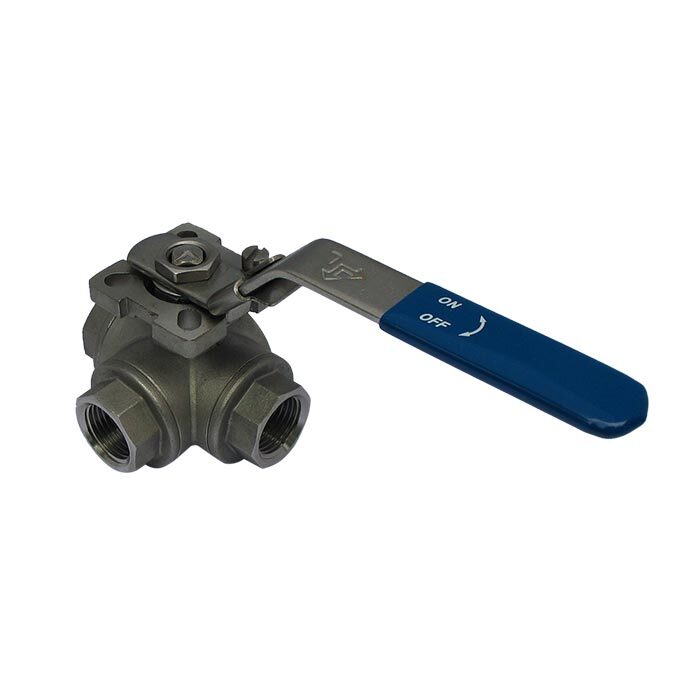

145T - G1/2'' 3-Way (T) Ball Valve Stainless Steel F/F/F ISO-Top
Notice: This product is discontinued and replaced by BL3SAT-012
3-Way ball valve T-bore with G1/2 inch threads (F/F/F) and ISO-Top (F03,F04) and lever for open/close control. 12mm nominal diameter and max pressure 63 bar. Temperature range from -50 to 250°C. Stainless steel housing with stainless steel ball and PPL seals.
Notice: This product is discontinued and replaced by BL3SAT-012
Description
3-Way (T-bore) ball valve of stainless steel from JP Fluid Control with G1/2 inch pipe threads (BSPP) and a nominal diameter of 12mm. The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 145T-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 145T |
| Function | 3-way (T-bore) |
| Diagram |  The ports overlap during rotation. |
| Ports | G1/2 BSP (F/F/F) |
| Housing | Stainless steel (AISI 316) |
| Ball | RVS (AISI 316) |
| Seals | PPL (Polypropylene) |
| Nominal Diameter | 12 mm |
| Kv value | 4 m3/h |
| Operation | Lever + ISO 5211 flange (for actuator mounting) |
| ISO 5211 flange | F03 and F04 |
| Max pressure | 63 bar |
| Temperature | -50°C .. 250°C |
Installation
The valve has female thread on all three ports (1/2 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature - 145T-series.
