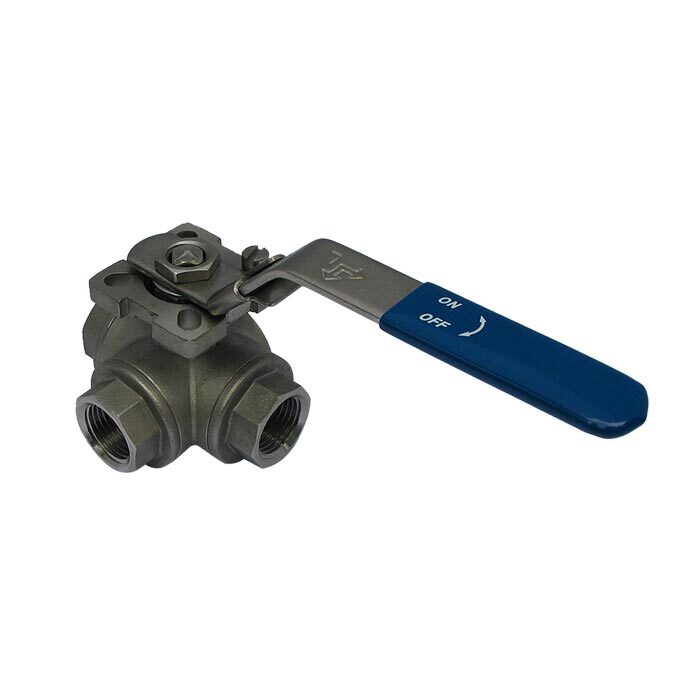

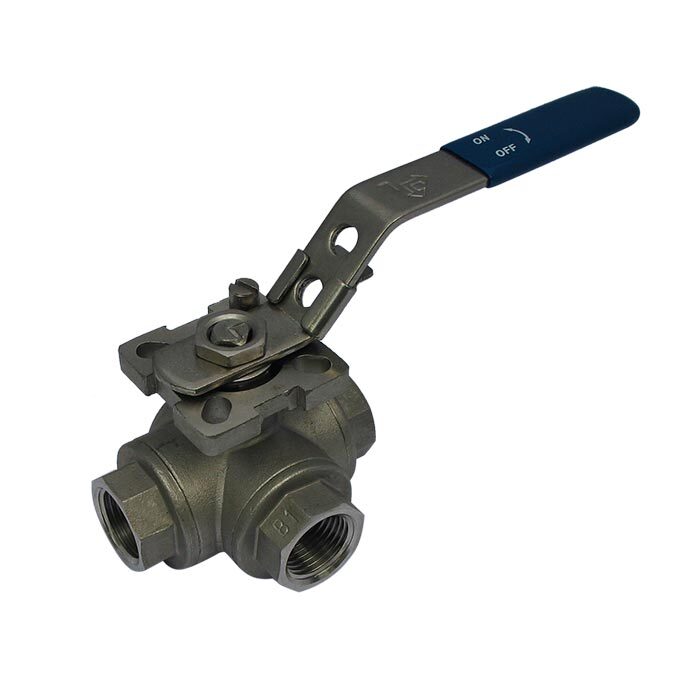

144L - G1-1/4'' 3-Way (L) Ball Valve Stainless Steel F/F/F ISO-Top
Notice: This product is discontinued, a possible alternative is BL3SAL-114
3-Way ball valve L-bore with G1-1/4 inch threads (F/F/F) and ISO-Top (F05,F07) and lever for open/close control. 25mm nominal diameter and max pressure 63 bar. Temperature range from -10 to 250°C. Stainless steel housing with stainless steel ball and PPL seals.
Notice: This product is discontinued, a possible alternative is BL3SAL-114
Description
3-Way (L-bore) ball valve of stainless steel from JP Fluid Control with G1-1/4 inch pipe threads (BSPP) and a nominal diameter of 25mm. The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 144L-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 144L |
| Function | 3-way (L-bore) |
| Diagram |  The ports overlap during rotation. |
| Ports | G1-1/4" BSP (F/F/F) |
| Housing | Stainless steel (AISI 316) |
| Ball | RVS (AISI 316) |
| Seals | PPL (Polypropylene) |
| Nominal Diameter | 25 mm |
| Kv value | 21 m3/h |
| Operation | Lever + ISO 5211 flange (for actuator mounting) |
| ISO 5211 flange | F05 and F07 |
| Max pressure | 63 bar |
| Temperature | -10°C .. 250°C |
Installation
The valve has female thread on all three ports (1-1/4 inch). This is BSPP (British Standard Pipe Parallel). With our range of 1-1/4" fittings, the valve can be installed in any pipe (recommended pipe diameter ± 25 - 50 mm).
Operation
The valve has a flange according to the ISO 5211 F05/F07 norm. This makes the valve suitable for electric or pneumatic actuation. The valve can also be manually operated by the standard mounted lever.
Application
This ball valve is part of the 144L series. The housing of the valve is made of stainless steel, the ball is made of stainless steel and the seals are made of PPL. The valve is suitable for various aggressive and corrosive media. The valve can be used up to a max pressure of 63 bar and a temperature between -10 and 250 °C.
Maximum pressure versus temperature - 144L-series.
