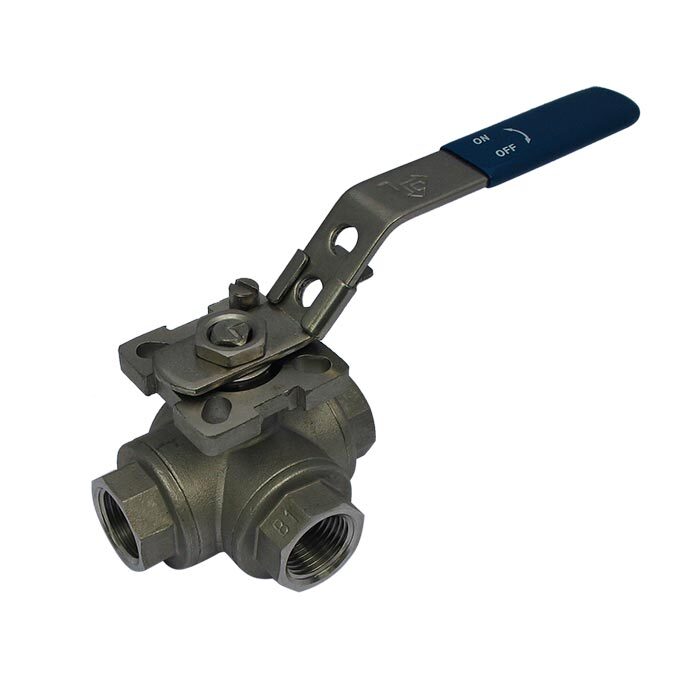

144L - G3/4'' 3-Way (L) Ball Valve Stainless Steel F/F/F ISO-Top
Notice: This product is discontinued and replaced by BL3SAL-034
3-Way ball valve L-bore with G3/4 inch threads (F/F/F) and ISO-Top (F04,F05) and lever for open/close control. 15mm nominal diameter and max pressure 63 bar. Temperature range from -50 to 250°C. Stainless steel housing with stainless steel ball and PPL seals.
Notice: This product is discontinued and replaced by BL3SAL-034
Description

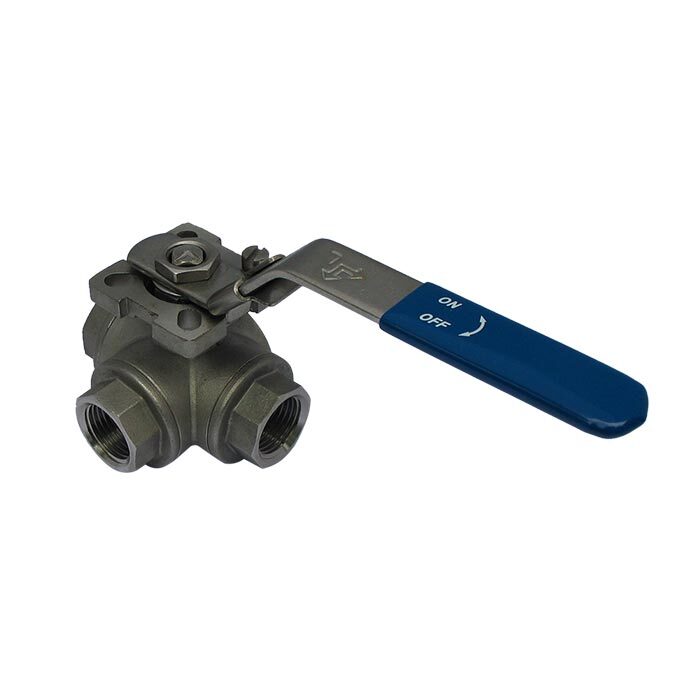

3-Way (L-bore) ball valve of stainless steel from JP Fluid Control with G3/4 inch pipe threads (BSPP) and a nominal diameter of 15mm. The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 144L-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 144L |
| Function | 3-way (L-bore) |
| Diagram |  The ports overlap during rotation. |
| Ports | G3/4 BSP (F/F/F) |
| Housing | Stainless steel (AISI 316) |
| Ball | RVS (AISI 316) |
| Seals | PPL (Polypropylene) |
| Nominal Diameter | 15 mm |
| Kv value | 6 m3/h |
| Operation | Lever + ISO 5211 flange (for actuator mounting) |
| ISO 5211 flange | F04 and F05 |
| Max pressure | 63 bar |
| Temperature | -50°C .. 250°C |
Installation
The valve has female thread on all three ports (3/4 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature - 144L-series.
