84% 19.2l/min Vacuum Generator 6mm Push-In

84% 19.2l/min Vacuum Generator 6mm Push-In
Reference: 122022
Brand: Piab

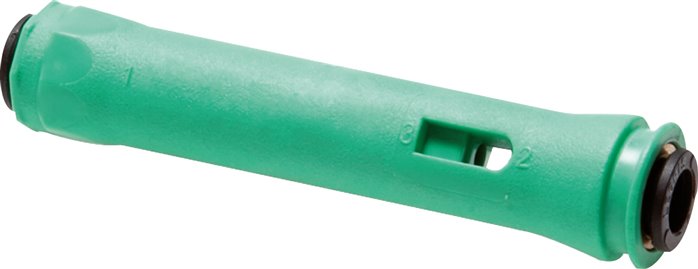

This single-stage vacuum generator can generate a vacuum of up to 84%. Compressed air is guided through a venturi tube to create a vacuum. It has a vacuum rate of 19.2 l/min (1.15 m3/h, 0.67 scfm) at 0% vacuum and an air consumption of 16.2 l/min (0.97 m3/h, 0.57 scfm). The evacuation time (1 l to 50% vacuum) is 3.1 s. It's made from plastic. The connection ports are 6 mm push-in. The operating pressure is from 1 to 7 bar (14.5 to 101.5 psi). Suitable for a temperature range of -10 °C to 80 °C (14 °F to 176 °F).

View all
Regular price
$60.02 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 13 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

This vacuum generator (also known as vacuum ejector) is designed to generate a vacuum level that is required for pick and place applications of objects and works based on the Venturi effect. The compressed air pressure range is 1 to 7 bar (14.5 to 101.5 psi), but the optimal pressure is 4 bar (58 psi). At this pressure, the maximum vacuum level is 84% and the air consumption is 16.2 l/min (0.97 m3/h, 0.57 scfm). The vacuum rate decreases with increasing vacuum levels and is maximally 19.2 l/min (1.15 m3/h, 0.67 scfm). The evacuation time 1 l to 50% vacuum is 3.1 s. Please see our datasheet for more details about suction rates and evacuation times.

This vacuum ejector has two 6 mm push-in connection ports. It's made from plastic. Suitable for a temperature range of -10 °C to 80 °C (14 °F to 176 °F).

Pros:

  • Due to the push-in connection, it can be easily directly mounted to a hose

VEL series
