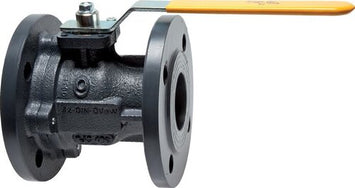

2-Piece Cast Iron Flanged Ball Valves PN16 For Gas

2-Piece Cast Iron Flanged Ball Valves PN16 For Gas

Explore Tameson’s wide range of flanged ball valves for gas from various global manufacturers. The gas-approved flanged ball valve selection offers PN 16 DVGW-tested valves for use in gas applications. The cast iron housing makes it suitable for a wide variety of media, such as water, oil, compressed air, and fuel gases. These gas ball valves are also suitable for vacuum applications. The valves have standardized flanges for connection. The length of the valves is in accordance with the DIN 3202-F4 standard.

The range of available flanged ball valves for gas is operated manually by a handle. Turning the handle a quarter turn will open or close the valve. When the handle is in line with the pipe, the valve is open, and when the handle is perpendicular to the pipe, the valve is closed. The selection includes a wide choice of full-bore versions with an unobstructed flow path and excellent flow characteristics.

The selection of flanged gas ball valves also includes ISO-top valves with a mounting flange in accordance with ISO 5211. This makes valves suitable for electrical and pneumatic actuation. There are various flange sizes in the ISO 5211 standard, such as F03, F04, and F05. Ensure that the actuator uses the same flange size and diameter as the drive shaft.
