Siemens SIMATIC PLC Base Unit - 6ES72111HE400XB0
Siemens s7-222 cpu, china certified. A range of siemens simatic s7-200 standard cpus certified for full use within the china market. With 14 inputs/outputs on board. Expandable with up to 2 expansion modules. 4 fast counters (30 khz). 2 high-frequency pulse outputs (max. 20 khz). Battery module for long-term backup. Siemens plc cpu, 6 inputs, 4 outputs - simatic s7-1200 series - 6es7211-1he40-0xb0. Use this high-performance cpu (central processing unit) from siemens with your plc (programmable logic controller) to perform precise industrial automation processes.
- Regular price
- $301.62 USD
Description

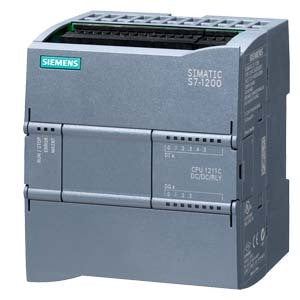

SIMATIC S7-1200, CPU 1211C, is a compact CPU with DC/DC/relay. It has onboard I/O: 6 DI 24 V DC; 4 DO relay 2A; 2 AI 0-10 V DC, and a Power supply of DC 20.4-28.8V DC. The program/data memory is 50 KB. The SIMATIC S7-1200 Basic Controller is flexible thanks to a wide variety of communication options. The Basic Controllers are the first choice for implementing automation tasks flexibly and efficiently in the mid to low-performance range. The CPUs are scaled in their performance and are available for different input voltages and with transistor or relay outputs. Safety versions are also available.
In addition to the existing integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules in order to adapt them to your specific requirements. HMI devices can likewise be connected via the integrated Ethernet interface. The memory of the CPU can be expanded by means of a memory card, while the PLC is configured using the STEP 7 Basic software in the TIA Portal.
The micro PLC has a wide range of networking options via various communication standards by means of integrated functions (PROFINET, Modbus, etc.) or add-on modules (IO-Link, AS-i, etc.) and thus offers maximum flexibility in the topology and when setting up the networks. Thanks to its compact design, the fields of application for the S7-1200 are very varied and extend from simple packaging machines and heating systems to its use as a subordinate control system in larger plants.
The STEP7 configuration software is integrated into the TIA Portal and can therefore rely on shared data storage, a uniform operating concept and integrated communication services for all components of a system. This means lower configuration costs and faster commissioning.
