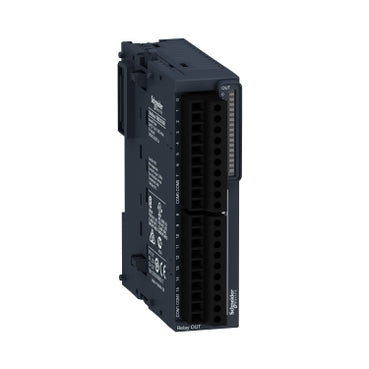

Schneider Electric M2 PLC Digital Input And Output Module - TM3DQ16R

This digital output module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists of 16 N/O relay outputs 2 A. The module comes with a removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complements the embedded I/O on Modicon M221, M221 Book, M241, and M251 logic controllers. The module provides insulation between output and internal logic at 2300V AC, outputs at 750V AC, and output groups at 1500V AC. The product is equipped with a removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and outputs. This is an IP20 rated product. Its dimensions are 23.6mm in width, 70mm in depth, and 90mm in height. It weighs 0.14kg.

This product is CE certified and meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with a fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system, specially designed for the Modicon M221, M241, and M251 logic controllers.
