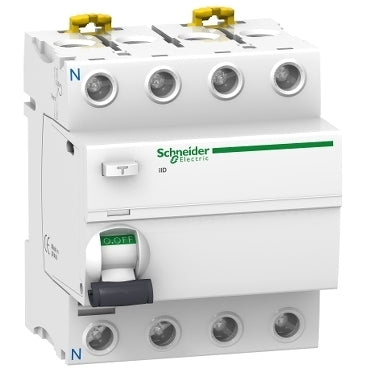

Schneider Electric Ground Fault Circuit Interrupter - A9R24480
Schneider Electric earth leakage circuit breaker, type leakage current A, nom. (measuring) current 80A, DIN rail, rated fault current 300A, nom. (measuring) voltage 400V, short circuit resistance (Icw) 1.5kA, connectable conductor cross-section duck 1 - 35mm², width in module units 4, frequency 50/60Hz.
- Regular price
- $360.95 USD
We sell only to registered businesses
Description
This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 80A In rated current, 300mA earth leakage sensitivity, and A type protection class. This product protects against electrical shock from indirect contact and fire hazards. It disconnects electrical circuits in case of an earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on the front face.
This product also has a VisiSafe window with a green strip on the toggle, indicating full opening of the poles for downstream maintenance. This product complies with the EN/IEC 61008-1 standard. The rated breaking and making short circuit capacity are 1500A. The conditional rated short circuit current is 10kA. It has an electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles.
The operational voltage is 380VAC to 415VAC. The rated insulation voltage is 500VAC. The rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product color is white (RAL9003). The dimensions are 72mm wide, 91mm high, and 73.5mm deep. The weight is 0.37kg. According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in an enclosure.
The operating temperature ranges from -25°C to 60°C. The storage temperature ranges from -40°C to 85°C.
