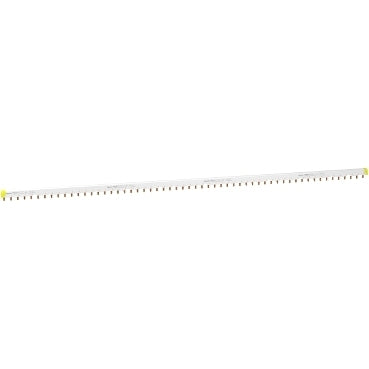

Schneider Electric Comb Rail - A9XPH357
Acti9 cutable comb busbars. Range of cutable comb busbars compatible with ic60, iid, isw-na, ik60, iid k and isw switch disconnector. Mounting mode: horizontal. Rated operational voltage: 415 v ac. Rated insulation voltage: 500 v ac.
- Regular price
- $72.73 USD
We sell only to registered businesses
Description
This Acti9 product is a cuttable horizontal comb busbar 57 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 3L installations. The type is L1L2L3 (Line). It includes one device and is suitable for 19 devices (3P). The length is 1000mm and the total number of 18mm modules is 57. The pin cross section is 16mm2. The type of electric connection is PIN. The device has 3 phases and 3 poles. The rated operational current at 40°C is 100A. The short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers.
The rated insulation voltage is 500VAC and the rated operational voltage is 415VAC. The device is white in color, matching the RAL9003 standard. The pollution degree is 3. According to the IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30 seconds. It complies with the IEC 60947-7-1 and IEC 61439-2 standards.
