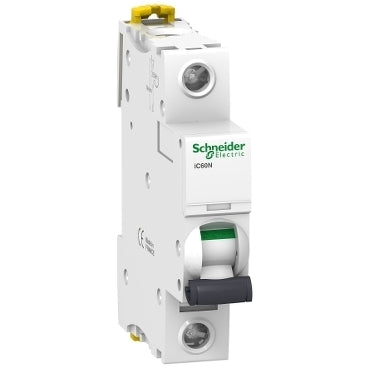

Schneider Electric Circuit Breaker - A9F74102
Schneider electric acti9 ic60n mcbs 1 pole. Acti 9 schneider ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- $32.32 USD
We sell only to registered businesses
Description
This Acti9 iC60N is a low-voltage circuit breaker. It is a 1P circuit breaker with one protected pole. It has a nominal current of 2A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 230VAC according to the standard EN/IEC 60898-1 (domestic standard) and 50kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).
This iC60N circuit breaker complies both with the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits against short-circuits and overload currents. The unique VisiTrip indicator shortens the search for the shut-off (tripped) breaker by clearly marking it.
The green indication of VisiSafe guarantees the physical opening of the contacts, allowing for downstream maintenance. The rapid cut-off mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical life of up to 10000 cycles and a mechanical life of up to 20000 cycles. The assigned insulation voltage Ui is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this breaker is one 18mm module.
The pollution degree is 3 and the overvoltage category is IV. This product is presented in white color (RAL9003).
- The dimensions are 18mm (W) x 85mm (H) x 78.5mm (D).
- The weight is 0.215kg.
According to the standard IEC 60529, the protection level is IP20. The protection level rises to IP40 when mounted in a modular housing with insulation class II.
The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
