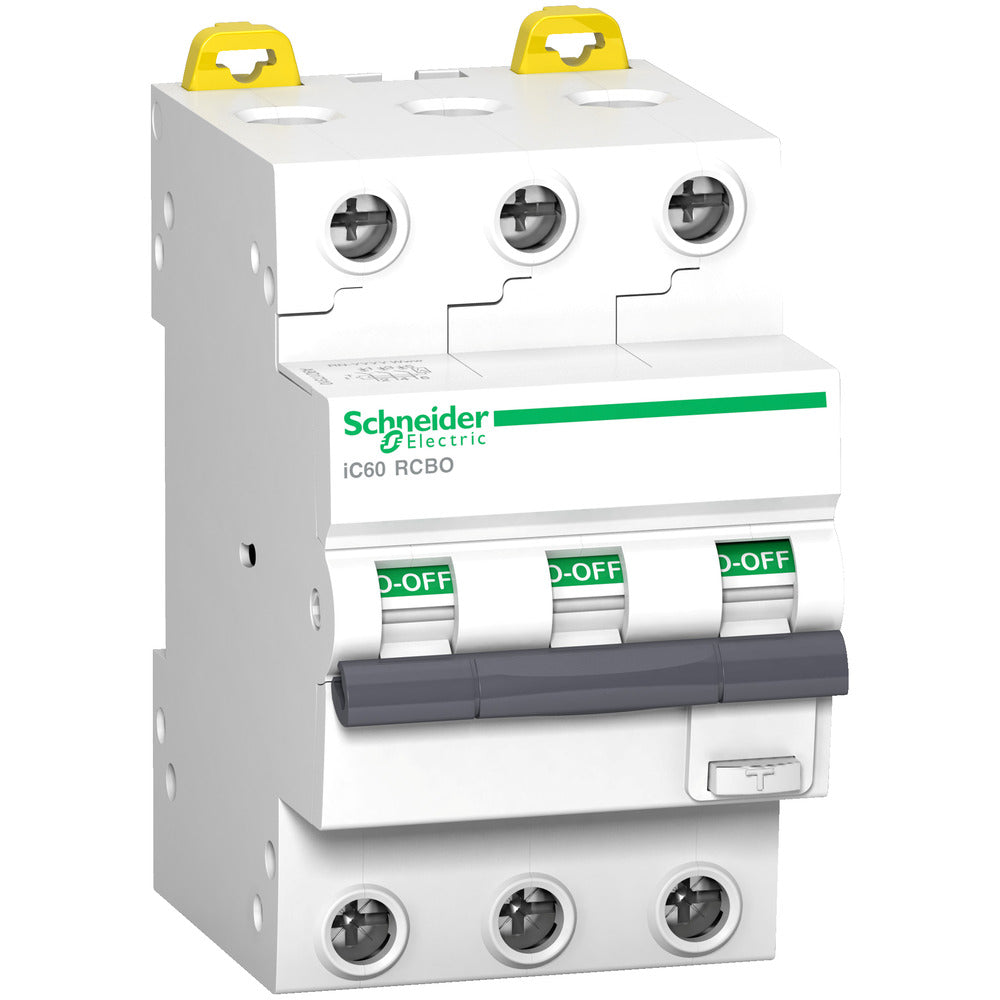

Schneider Acti9 IC60 RCBO 3P 32A 30mA Type A Circuit Breaker - A9D17332
3-pole RCBO (Residual Current Circuit Breaker with Overcurrent protection) rated at 32A with 30mA Type A earth leakage sensitivity. Features 10kA breaking capacity at 220-240VAC per EN/IEC 61009-2-1, and 15kA per EN/IEC 60947-2. Operates at 220-240VAC with 500VAC insulation voltage and 4kV impulse withstand. Designed for 10,000 electrical and 20,000 mechanical operation cycles at 50Hz frequency.
- Regular price
- $178.13 USD
We sell only to registered businesses
Description
3-pole RCBO (Residual Current Circuit Breaker with Overcurrent protection) rated at 32A with 30mA Type A earth leakage sensitivity. Features 10kA breaking capacity at 220-240VAC per EN/IEC 61009-2-1, and 15kA per EN/IEC 60947-2. Operates at 220-240VAC with 500VAC insulation voltage and 4kV impulse withstand. Designed for 10,000 electrical and 20,000 mechanical operation cycles at 50Hz frequency.
Pros:
- High 15kA breaking capacity per IEC 60947-2
- 10,000 electrical / 20,000 mechanical cycle durability
- Immediate tripping without time delay
- Compliant with multiple IEC standards
