Osram Quicktronic Ballast - 4008321537041
Notice: This product is discontinued

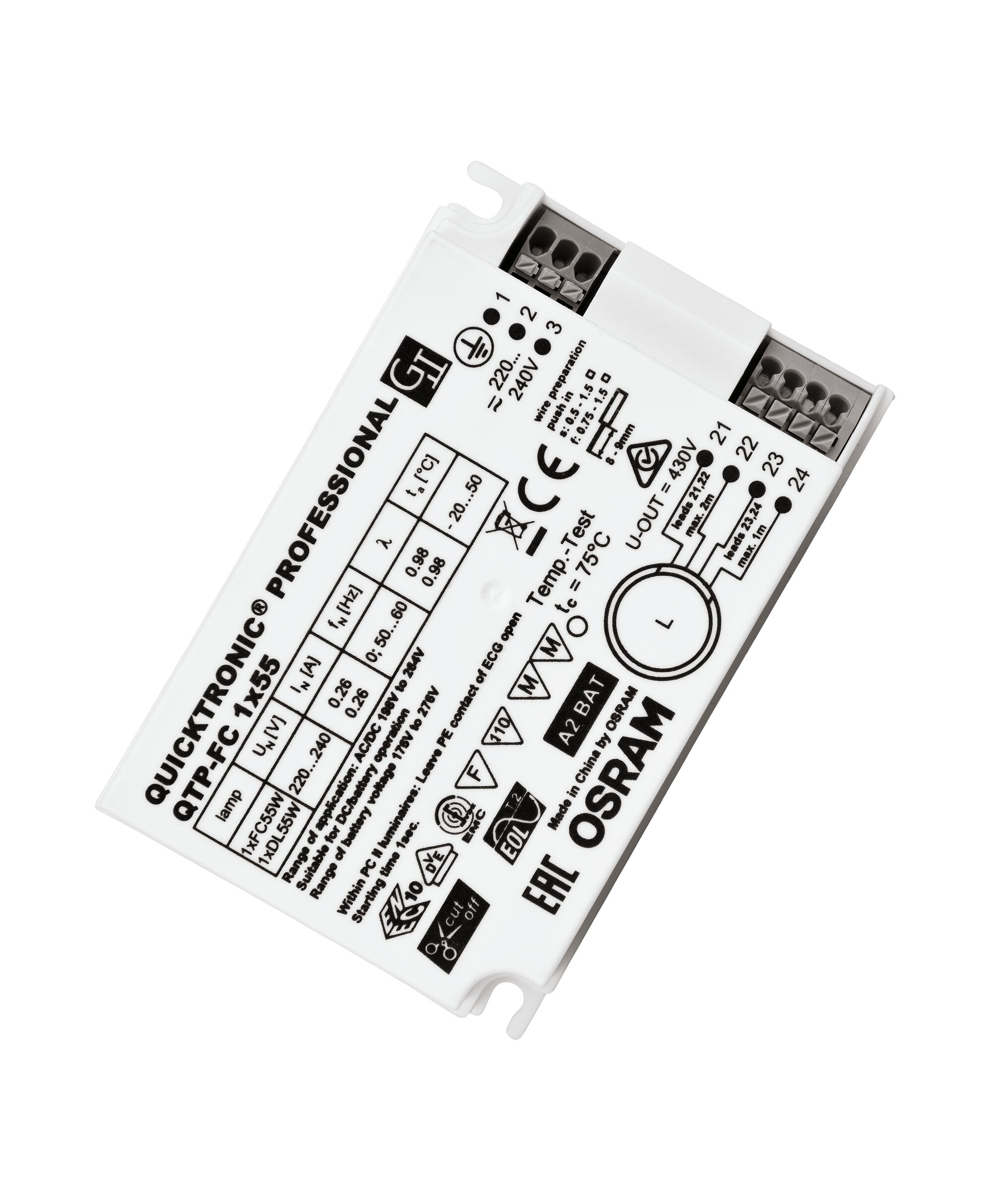

Osram quicktronic professional optimal lighting ballast. Introducing the quicktronic professional lighting ballast from osram, this is an electronic control gear (ecg) for circular fluorescent lamps. Using an ecg can guarantee a long lamp life and isn't affected by constant switching on and off. Can be used in emergency lighting systems as well as office lighting, public buildings with luminaries. Cut-off technology that it uses can not only prolong the life of the lamp but reduces the cost for maintenance and has very high energy efficiency.
Notice: This product is discontinued
Description
ECG for circular FL 16 mm. Product features include a supply voltage of 220…240 V, line voltage of 198…264 V, and line frequency of 0 Hz, 50 Hz, or 60 Hz. The lamp starts with optimum filament preheating. It has an Energy Efficiency Index EEI of A2 BAT. It automatically shuts down defective lamps and at the end of life. Lamp operation adheres to EN 60929 and safety is according to EN 61347-2-3.
Product benefits include a long lamp life, no adverse effects from frequent on/off switching, and automatic restart after lamp replacement. It is perfect for applications with motion sensors. There are separate installations thanks to the optional cable clamp for K2 and K3 casings. It is a VDE/VDE EMC certified system.
Areas of application include:"
- Emergency lighting systems according to EN 50172/DIN VDE 0108-100
- Open-plan offices
- Corridors and storage rooms
- Public buildings
