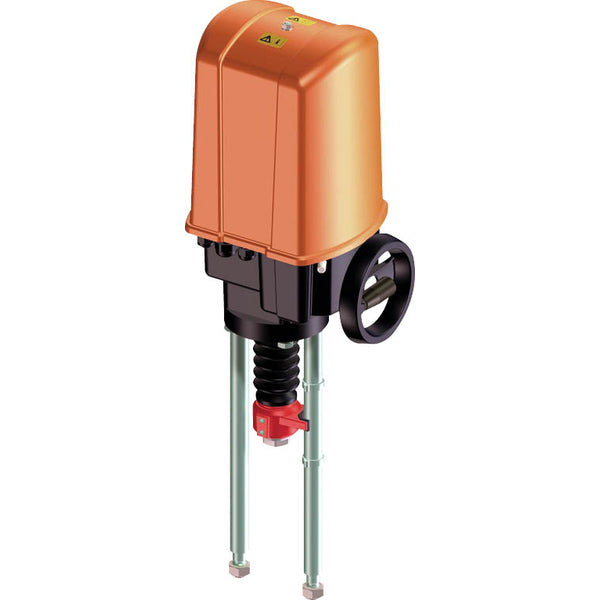

Belimo Actuator for Globe Valve 2-10V 65mm Stroke 24VAC/DC 12000N IP65 Terminals 82s GV12-24-SR-T

This Belimo linear electrical actuator is designed for controlling globe valves. The stroke length is 65 mm. The actuator delivers a force of 12000 N and can open/close the valve in 82 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The modulating actuator is requires a 2-10 V input and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator has a durable plastic housing and has an IP65 protection rating. This actuator can operate within ambient temperatures between 20 and 70 °C (68 and 158 °F). A power cable can be easily attached via the terminal block.

The actuator is protected against short circuits, polarity reversal, and overloading. In a de-energized state or when the motor is switched off, upward and downward movements can be performed by pressing and turning the handwheel. The stroke is mechanically indicated on the bracket, and the indicator adjusts itself automatically. The actuator is factory-mounted onto the corresponding valve. The power connection is made with form closure, and power transmission is achieved through a torsion-secured coupling.

Pros:

• Modulating actuator with a control signal of 2-10 V
• Manual override
• Visual position indicator

Cons:

• The time to open/close of 82 s is slow for some applications
