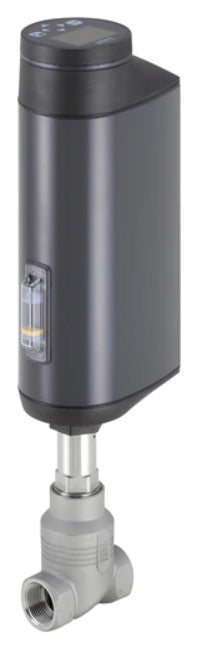

G 2 inch On/Off Stainless Steel Electric Globe Valve - 3361 - 375772

This Bürkert 2/2-way (type 3361) electric globe valve is designed for on/off applications. This valve has G 2 inch female threaded ports. The valve has a stainless steel housing. The current valve's position is blocked upon power lose. For media temperatures ranging from -10 to 130°C (14 to 266°F) at a pressure of 0 to 10 bar (0 to 140 psi). The valve has a Kv-value of 37 m3/h (Cv-value of 42.8 gpm). The stainless steel housing is durable, suitable for corrosive media and harsh environments. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve takes 6.6 s to go from fully open to fully closed position. The actuator uses a büs communications protocol.

Pros:

• Diagnostic functions possible thanks to the fieldbus connection
• High IP protection IP65/67 ensures adequate splash protection
• Suitable for applications with food

Series

The Bürkert type 3361 globe valves have electric actuators with a ball screw that position the control cone with highest precision. The valve and actuator are made to fit together perfectly, with a closed design and strong surface that can be cleaned quickly and easily. The valve can work well even in harsh environments, because it has a high level of protection against splash and vibration (IP65/67). The valve is also very durable and won't leak, thanks to self adjusting packing gland with exchangeable V-seals. The type 3361 can be connected to a computer system, which can help monitor how well the valve is working and predict when it might need maintenance. The valve works quickly, with the motor able to move it up to 6 mm/s. Some of the type 3361 valves are suitable for applications with food, oxygen and have explosion proof ATEX, IECEx and UL certificates.
