Belimo Characterized Valve Rp1/2 Kvs0.25 24VAC/DC 90s BACnet/Modbus 10Nm IP40 R2015-P25-S1/VNR24A-LP1

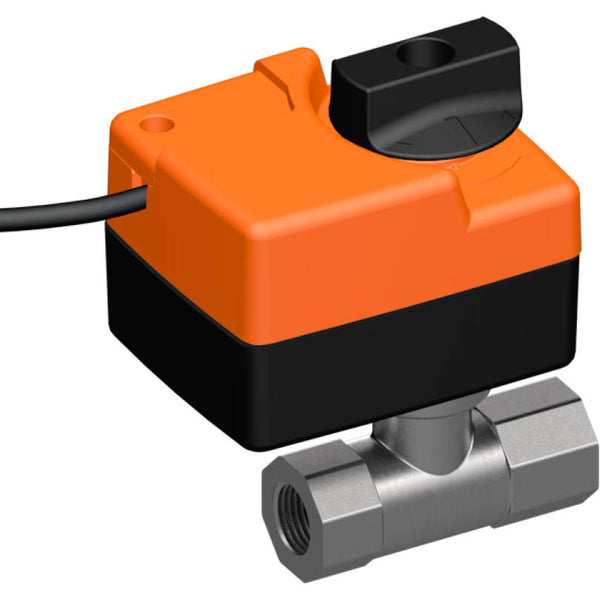

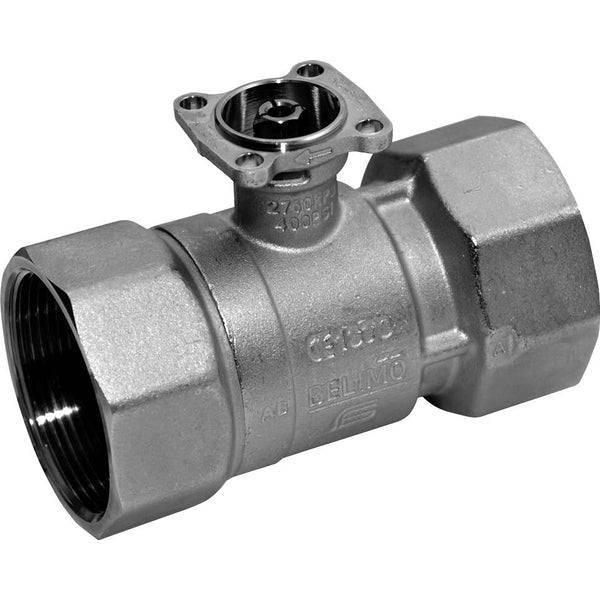

This is a 2-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 0.25 m3/h, equivalent to a Cv-value of 0.29 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features BACnet IP/Modbus TCP control, enabling versatile communication and interoperability with other systems for streamlined control and monitoring capabilities. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

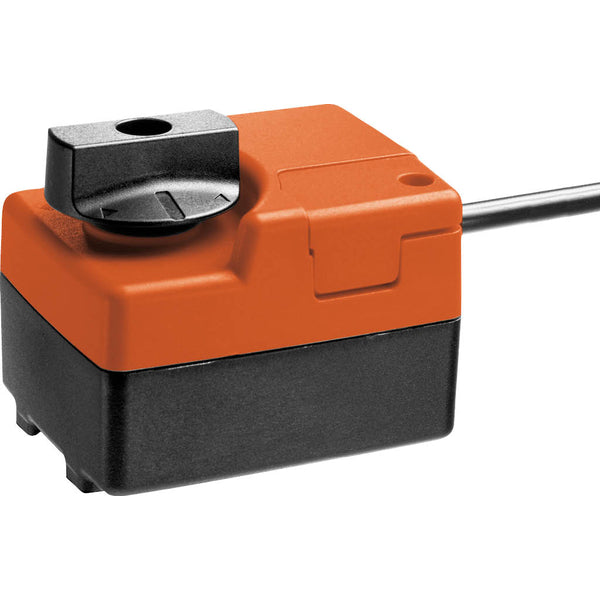

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. Manual triggering of adaptation can be done by pressing the "Adaptation" button. Both mechanical end stops are detected during the adaptation (entire setting range). The actuator then moves into the position defined by the control signal. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator is controlled via the Cloud, BACnet IP, or Modbus TCP and moves to the position defined by the control signal. Various data points can be written and read via the same interfaces. In hybrid mode, the actuator receives its analog control signal from the higher-level controller and moves to the defined position. Various data points can be read and written (except for the control signal) using the Cloud, BACnet IP, or Modbus TCP. The actuator is controlled via the Cloud, BACnet IP, or Modbus TCP and moves to the position defined by the control signal. Various data points can be written and read via the same interfaces. In hybrid mode, the actuator receives its analog control signal from the higher-level controller and moves to the defined position. Various data points can be read and written (except for the control signal) using the Cloud, BACnet IP, or Modbus TCP. The rotation angle can be adjusted with mechanical end stops. The recorded data (integrated data recording for 13 months) can be utilized for analytical purposes. CSV files can be downloaded via a web browser. Upon initial power supply, i.e., during commissioning, the actuator performs an adaptation where the operating range and position feedback adjust to the mechanical setting range. The actuator then moves into the position defined by the control signal.

Pros:

• The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
