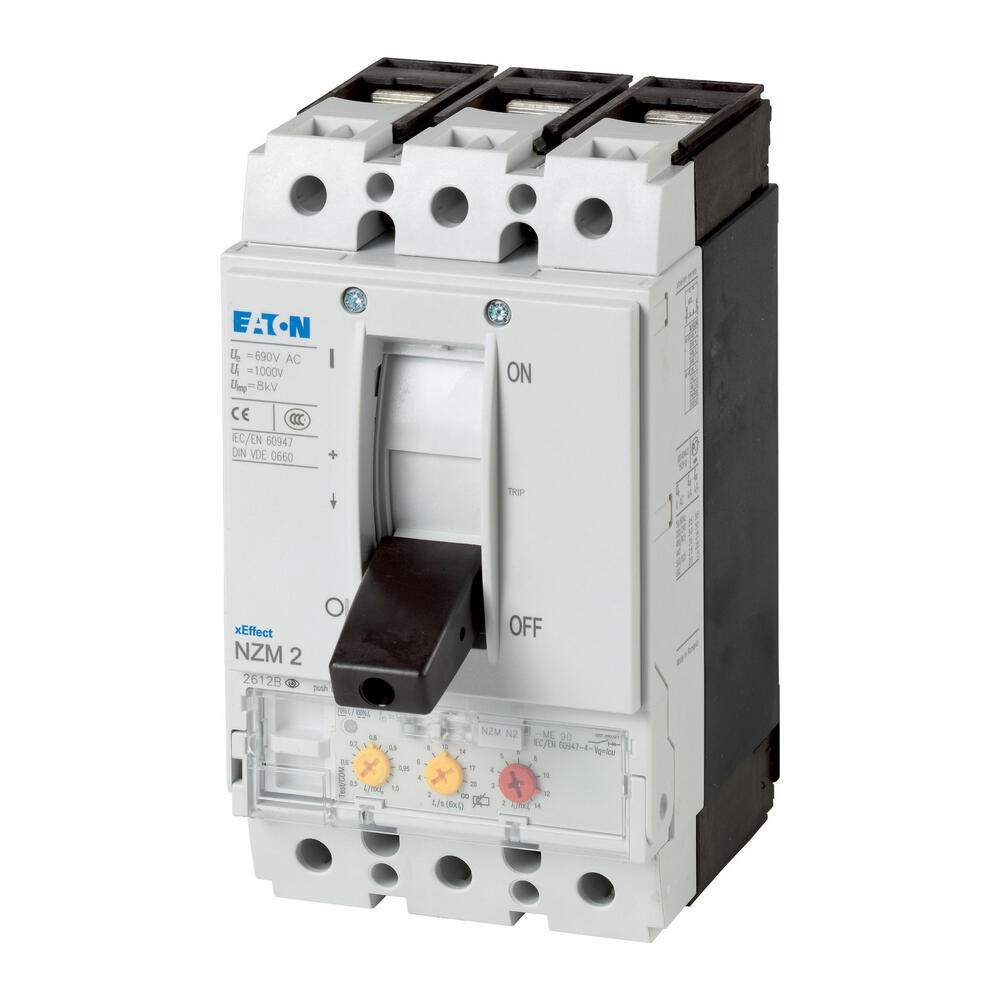

Eaton 3P 220A Circuit Breaker NZMH2-ME220 Motor Protection - 265788
The Eaton Industries MCCB motor protection circuit breaker is a compact in-built device measuring 105x149x184mm. It has an overload protection adjustment range of 110 - 220A, with a nominal continuous current Iu of 220A. The main circuit connection is via screw connection and uses electronic shut-off technology. The NZM..-ME series circuit-breakers are suitable for IEC market applications, offering flexible mounting through modular function groups. Featuring an electronic release for motor protection with phase failure sensitivity, the system also includes IEC/EN 60947-4-1, IEC/EN 60947-2, r.m.s. value measurement, thermal memory, and an adjustable time delay setting to manage current peaks tr:2-20 at 6xIr and infinity (without overload release).
- Regular price
- $1,665.27 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection circuit breaker is a compact in-built device measuring 105x149x184mm. It has an overload protection adjustment range of 110 - 220A, with a nominal continuous current Iu of 220A. The main circuit connection is via screw connection and uses electronic shut-off technology. The NZM..-ME series circuit-breakers are suitable for IEC market applications, offering flexible mounting through modular function groups. Featuring an electronic release for motor protection with phase failure sensitivity, the system also includes IEC/EN 60947-4-1, IEC/EN 60947-2, r.m.s. value measurement, thermal memory, and an adjustable time delay setting to manage current peaks tr:2-20 at 6xIr and infinity (without overload release).
