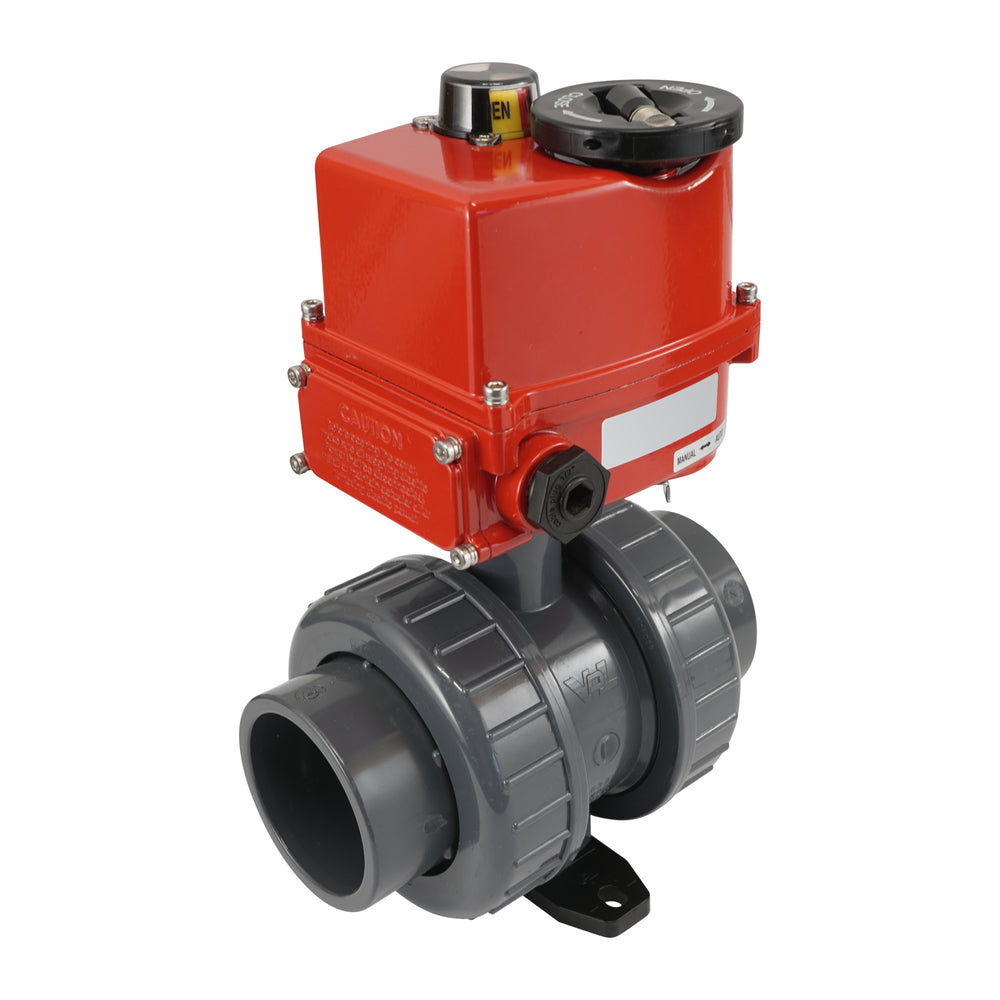

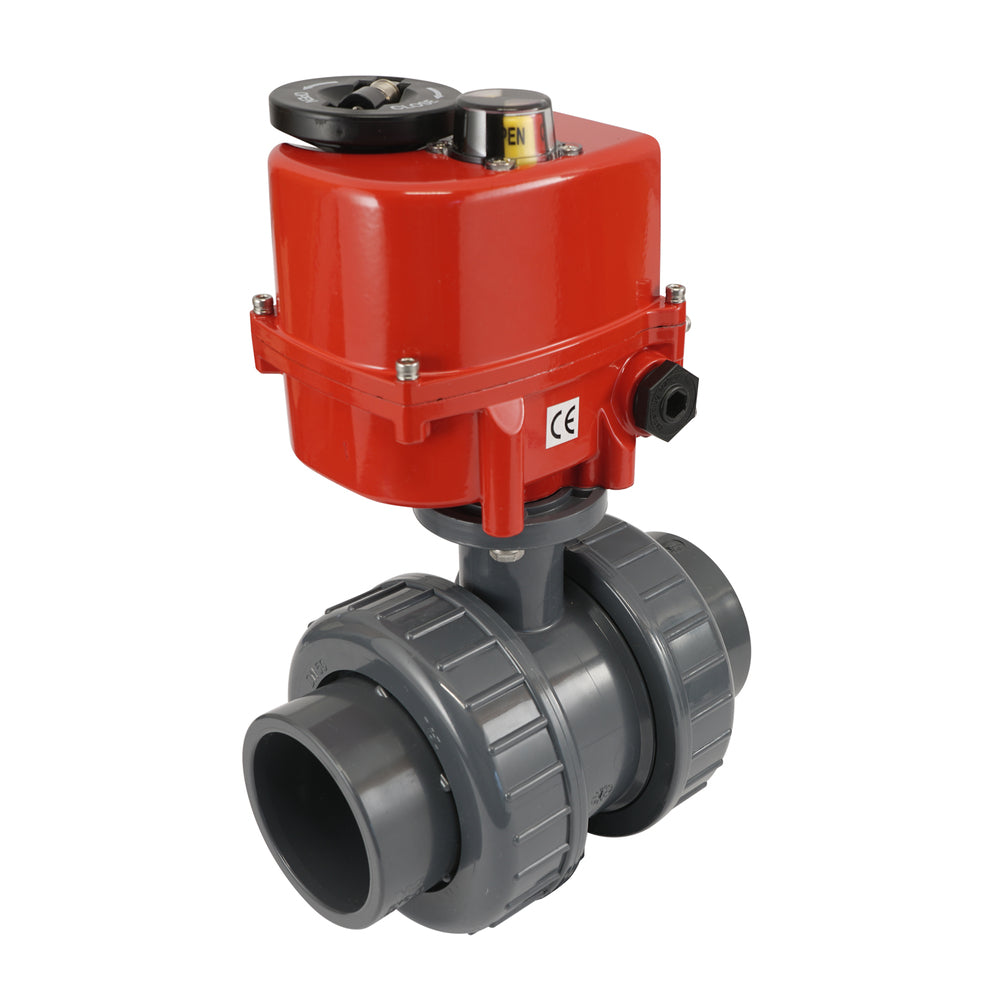

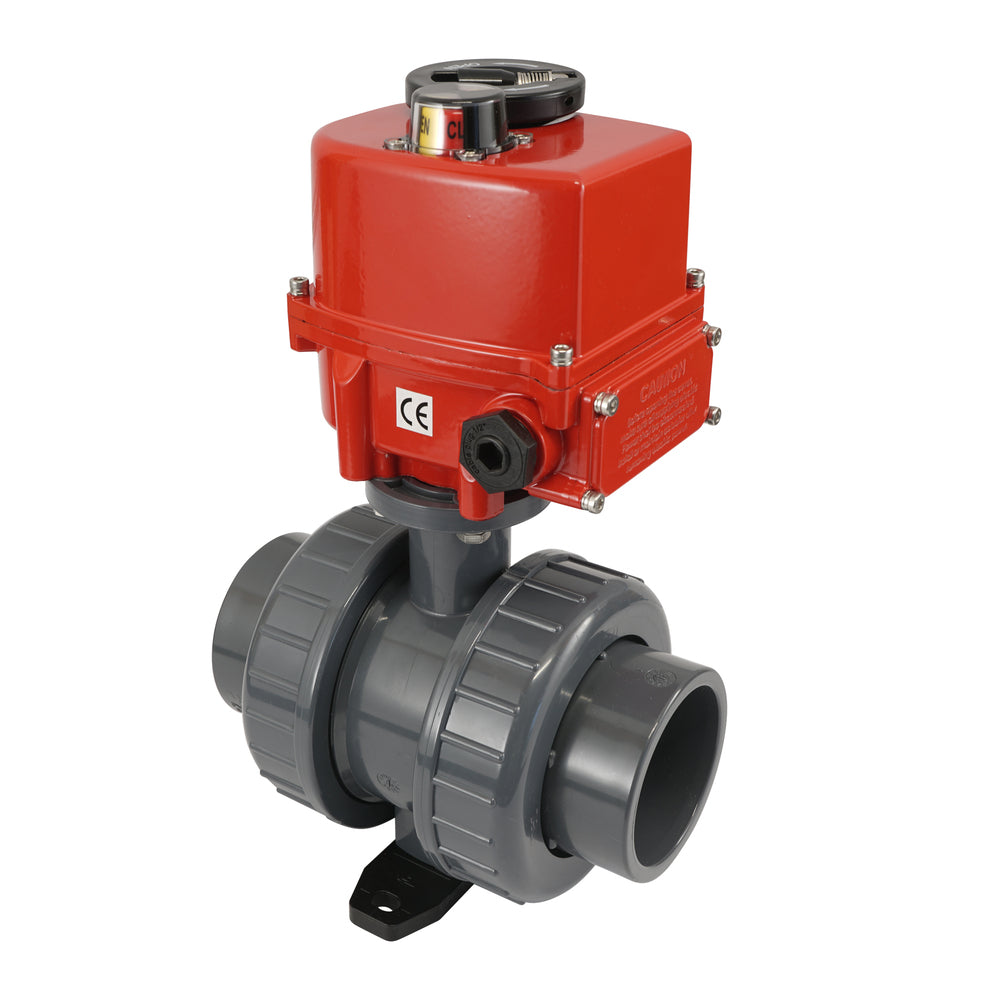

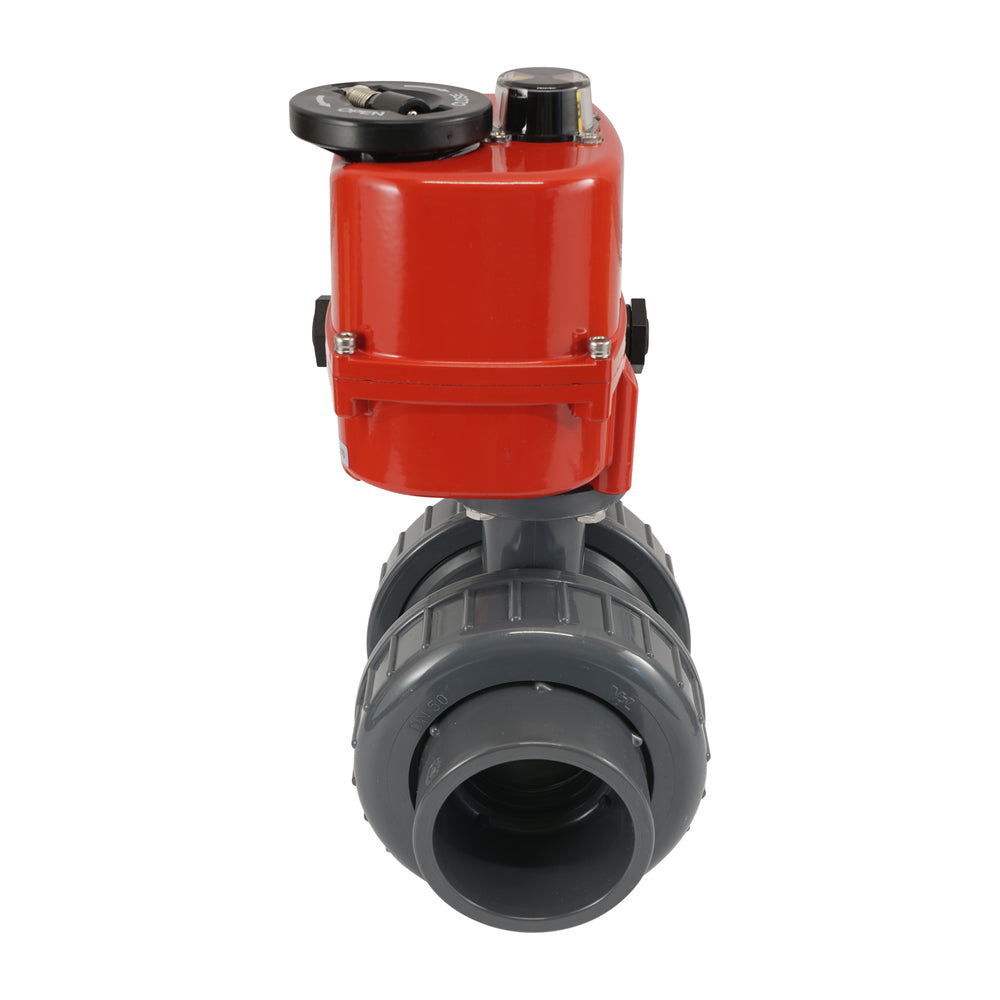

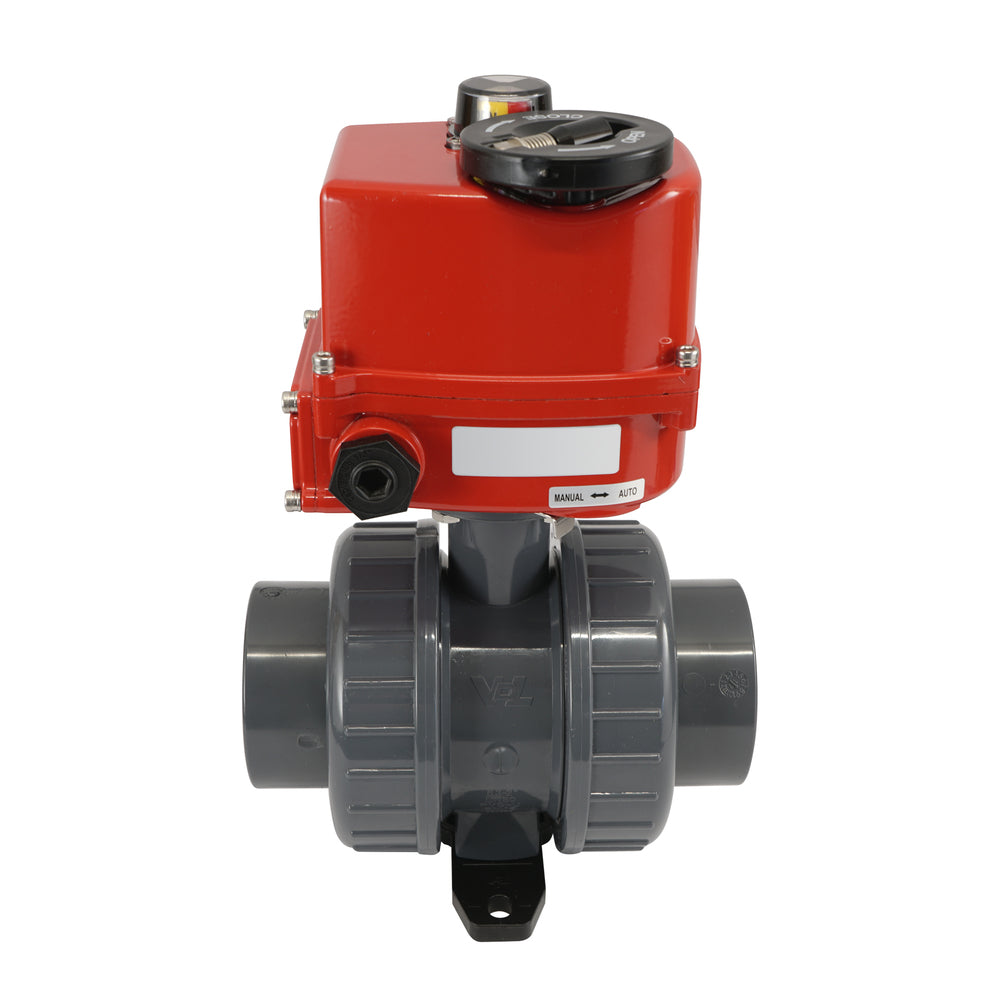

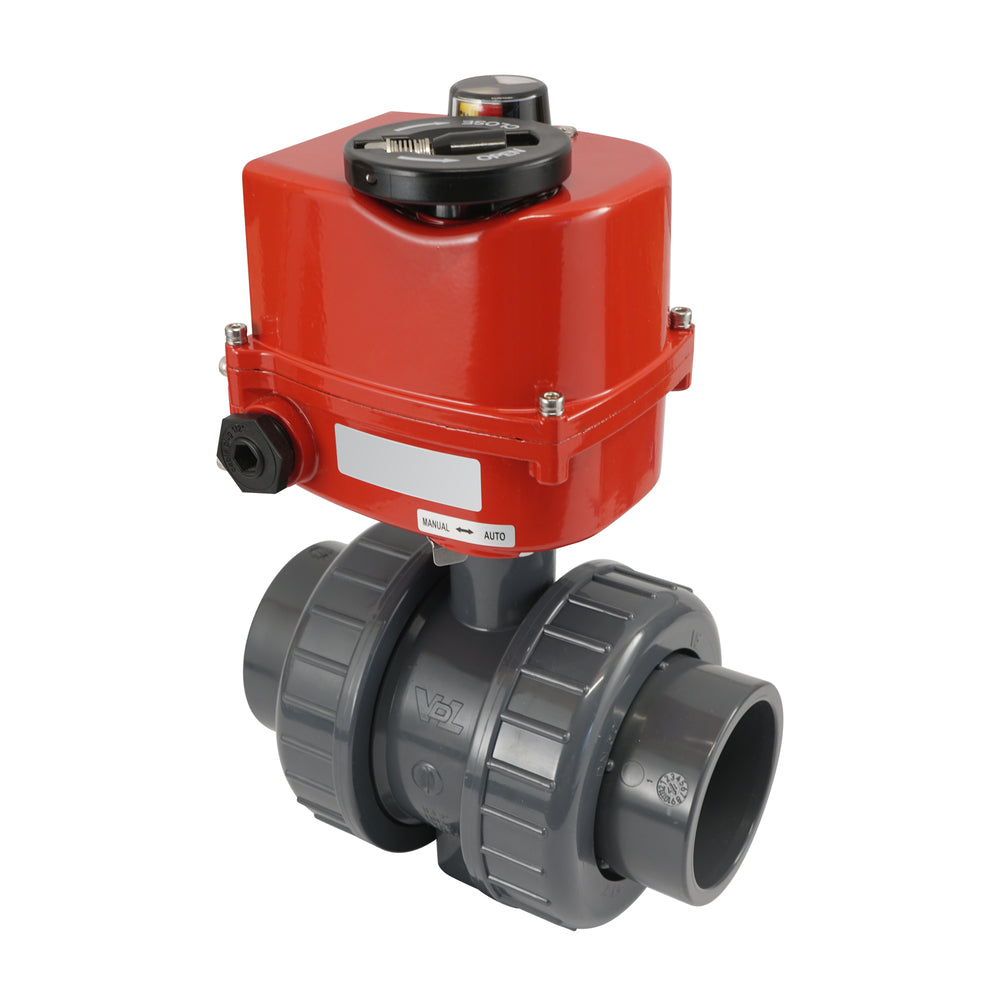

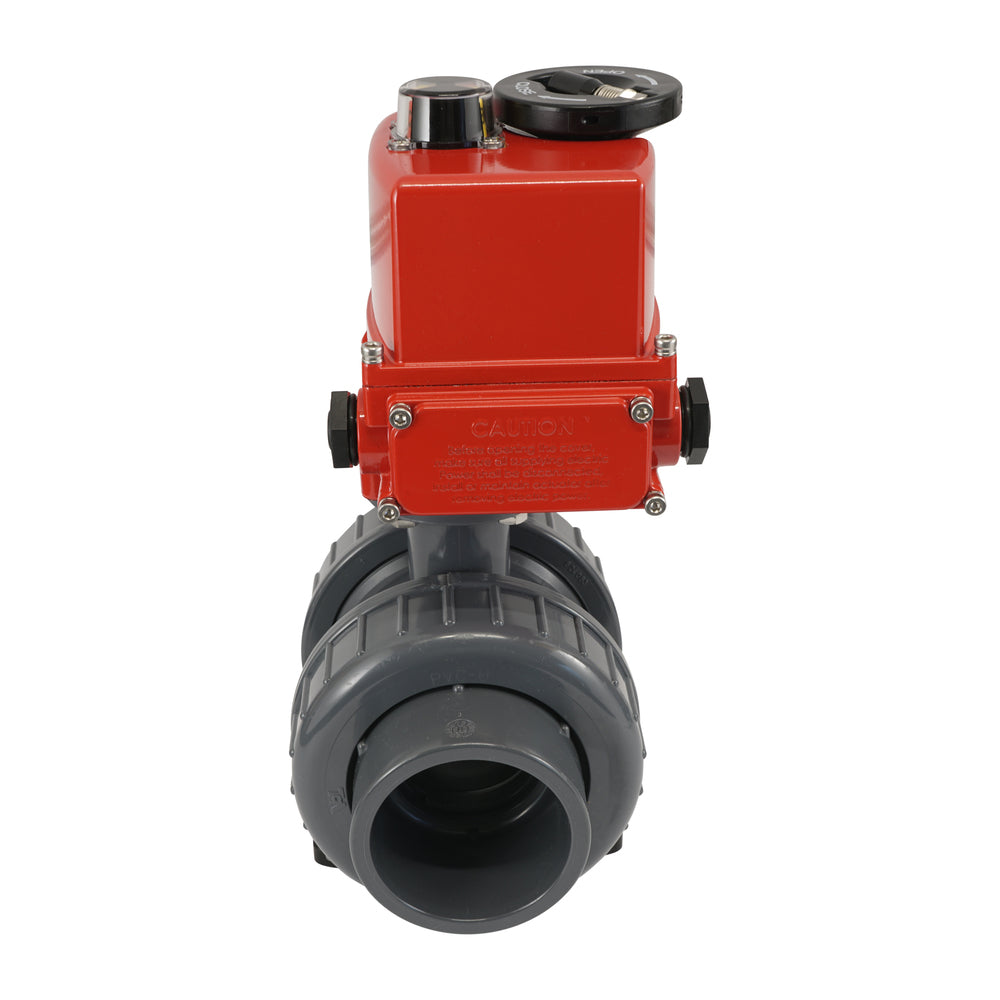

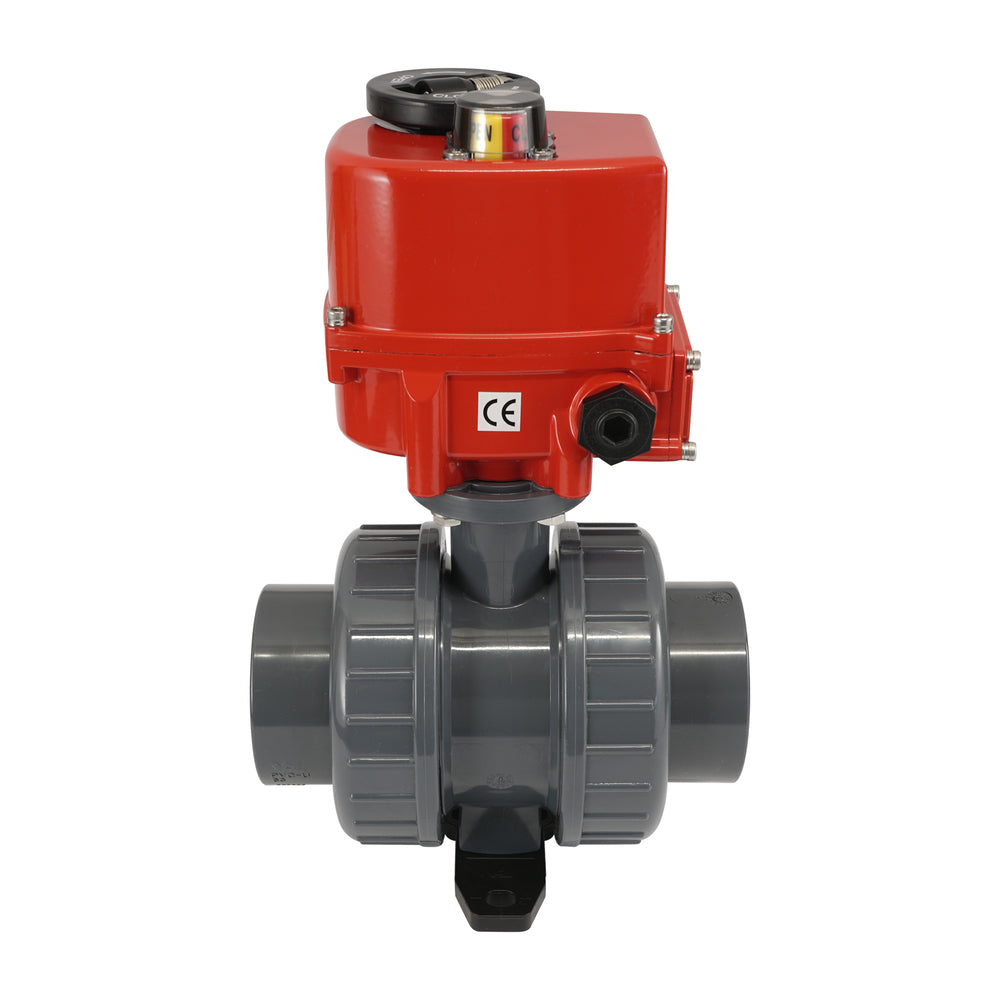

50 mm true union sockets 2-Way PVC Modulating Electric ball valve 24 V AC/DC (VDL)
This modulating electrical actuator is offered in combination with a 2-way PVC ball valve. Actuator requires 24 V AC/DC to operate. It is a modulating actuator with a digital positioning system (DPS). The ball valve has two 50 mm true union sockets. Orifice of 40 mm (Kv value 170 m3/h), medium temperature range of 0 to 60 °C, and a max pressure of 16 bar. With the actuator’s housing, it gives the unit a protection of IP67 for an environmental temperature of -10 to 50 °C.
- Regular price
- $791.74 USD
We sell only to registered businesses
Description
This modulating electrical actuator is offered in combination with a 2-way ball valve. It can turn the valve from 0-90 degrees with an operating torque of 40 Nm (higher break torque so please see the manual) in a time of 13 seconds. It requires a supply voltage of 24 V AC/DC, has a duty cycle of S2, and comes with a visual positioning indicator on top of the unit to clearly see valve position. As a modulating actuator, it is equipped with a digital positioning system (DPS) meaning it can position the valve anywhere between 0-90 degrees. It requires a control signal of 4-20 mA (and 0-10V, 2-10V) for positioning. The actuator is mounted on the valve via the ISO 5211 F03, F05 or F07 flange. The 2-way PVC valve has two connection points of 50 mm true union sockets. The medium flows through a 40 mm bore (Kv value of 170 m3/h) and the temperature can be between 0 to 60 °C at a pressure under 16 bar. Due to the actuator's durable housing, it has a protection rating of IP67 and can withstand an environmental temperature of -10 to 50 °C. Before connecting the actuator, please read the manual carefully.
Pros:
- It is a modulating actuator with a digital positioning system (DPS) to position the valve anywhere between 0-90 degrees with a control signal of 4-20 mA
- It has a robust IP67 housing
- It has a clear visual position indicator to see the valve’s state
Cons:
- In comparison to a pneumatic actuator of the same size, the operating speed is slower
series
AG5 Actuator
The AG5 electric valve actuators from JP Fluid Control offers an extensive list of standard features that includes safety override against damage from over-torque and manual override. Actuators are also available with different options like modulating, called DPS (Digital Positioning System). The series has an operating torque range between 40-50 Nm. The AG5 DPS modulating actuator can be controled with 4-20 mA, 0-10V or 2-10V.
Spare parts
Below is a list of the spare parts for this unit should they be needed. Simply use the SKU number in our search bar to find the proper part.Ball valve: 6P14P050
Actuator: AG-540-B-DPS
Note: This product is delivered in separate parts, but with the required mounting accessories.
