Collection:Festo Mechanically Coupled Cylinders
Mechanically coupled cylinders are pneumatic rodless linear actuators designed to move slides through a mechanical coupling with the piston. This design features an open pneumatic space in the l...
Subcategories
20 | 100 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 150 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
25 | 100 | Double acting | 1.5..8 | 295 | 295 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | 1/8 inch | Inner thread cylindrical BSPP-G | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 200 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
25 | 150 | Double acting | 1.5..8 | 295 | 295 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | 1/8 inch | Inner thread cylindrical BSPP-G | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 250 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
25 | 200 | Double acting | 1.5..8 | 295 | 295 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | 1/8 inch | Inner thread cylindrical BSPP-G | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 300 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
25 | 250 | Double acting | 1.5..8 | 295 | 295 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | 1/8 inch | Inner thread cylindrical BSPP-G | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 350 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
25 | 300 | Double acting | 1.5..8 | 295 | 295 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | 1/8 inch | Inner thread cylindrical BSPP-G | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 400 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
25 | 350 | Double acting | 1.5..8 | 295 | 295 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | 1/8 inch | Inner thread cylindrical BSPP-G | Aluminum anodized | NBR/PUR | 0..60 | ||
25 | 400 | Double acting | 1.5..8 | 295 | 295 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | 1/8 inch | Inner thread cylindrical BSPP-G | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 500 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 | ||
20 | 600 | Double acting | 2..8 | 188 | 188 | Self-adjusting pneumatic end-position cushioning | Basic guide, Reed switch, Operation with oil lubrication possible (required in further operations) | M5 | Inner thread metric | Aluminum anodized | NBR/PUR | 0..60 |

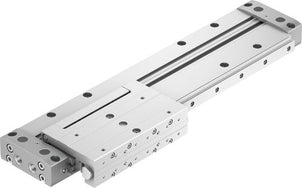

Festo Mechanically Coupled Cylinders
Mechanically coupled cylinders are pneumatic rodless linear actuators designed to move slides through a mechanical coupling with the piston. This design features an open pneumatic space in the longitudinal direction, which is sealed to the outside by a flexible sealing band positioned in front of and behind the piston.
These cylinders are particularly beneficial in applications where piston rod cylinders require too much installation space. The compact design of mechanically coupled cylinders allows for efficient integration into systems with limited space, making them ideal for environments where space constraints are a significant concern.
Additionally, mechanically coupled cylinders can achieve stroke lengths greater than those possible with traditional piston rod cylinders. This extended stroke capability makes them suitable for tasks requiring longer travel distances, providing flexibility and enhanced performance in various industrial settings.
When selecting mechanically coupled cylinders, consider the specific requirements of your application, such as the need for a compact design, extended stroke length, and reliable sealing. The combination of a space-saving design, extended stroke capabilities, and robust sealing makes mechanically coupled cylinders an excellent choice for optimizing the efficiency and functionality of your industrial processes.
