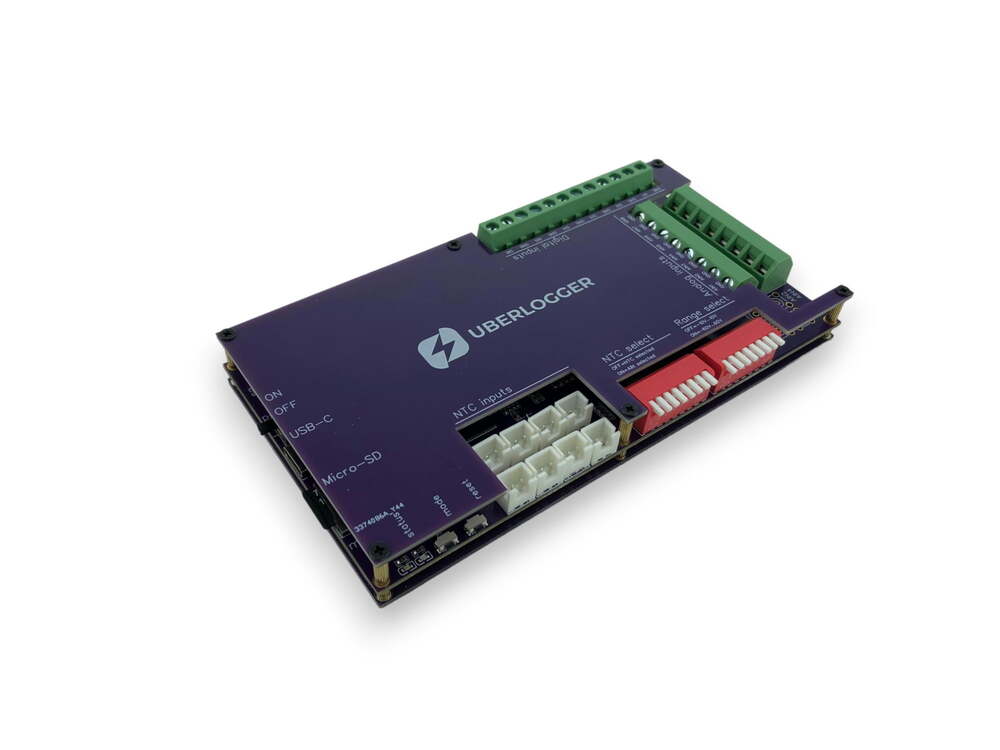

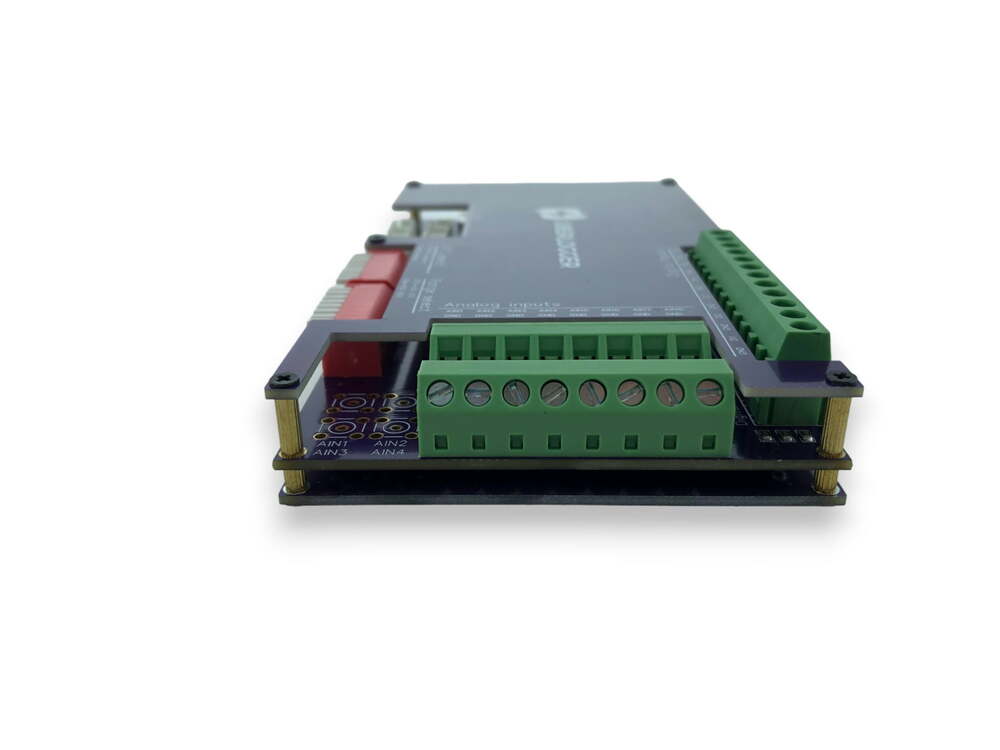

Uberlogger Datalogger 8x NTC/Voltage 60V - 6x Digital

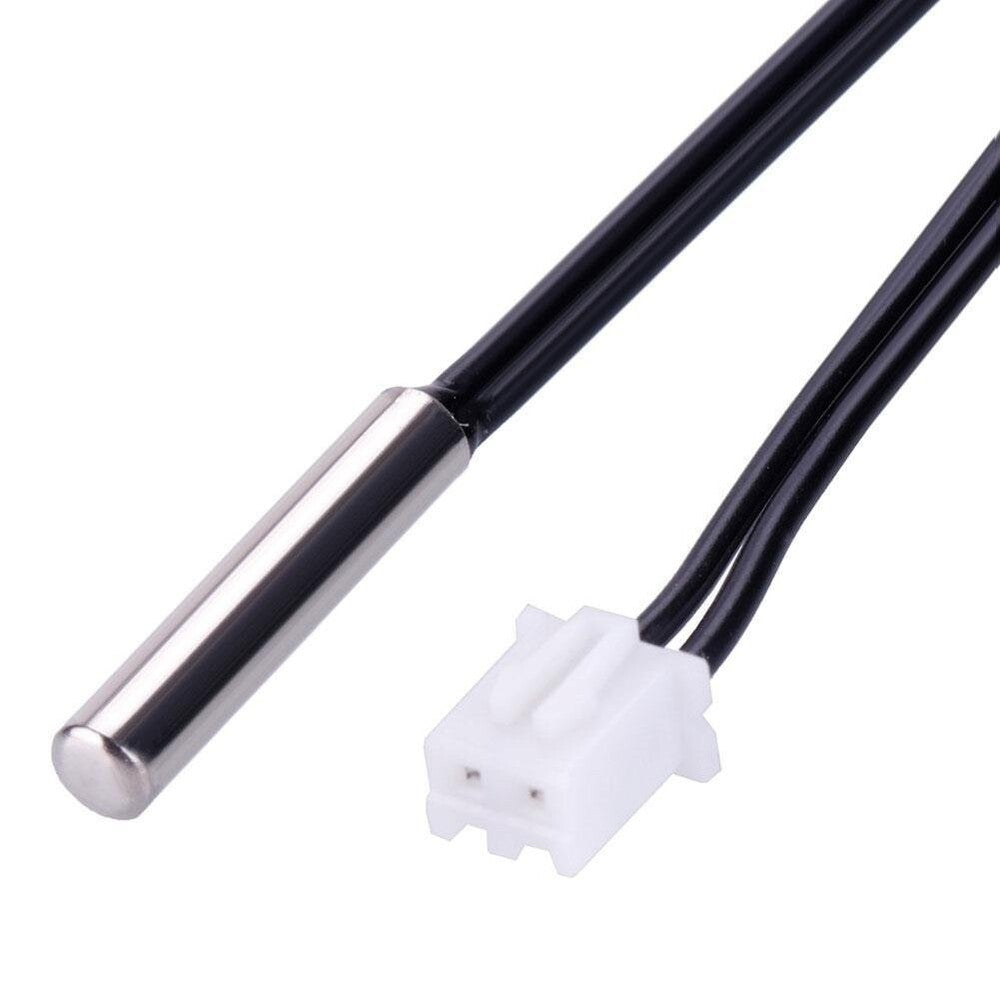

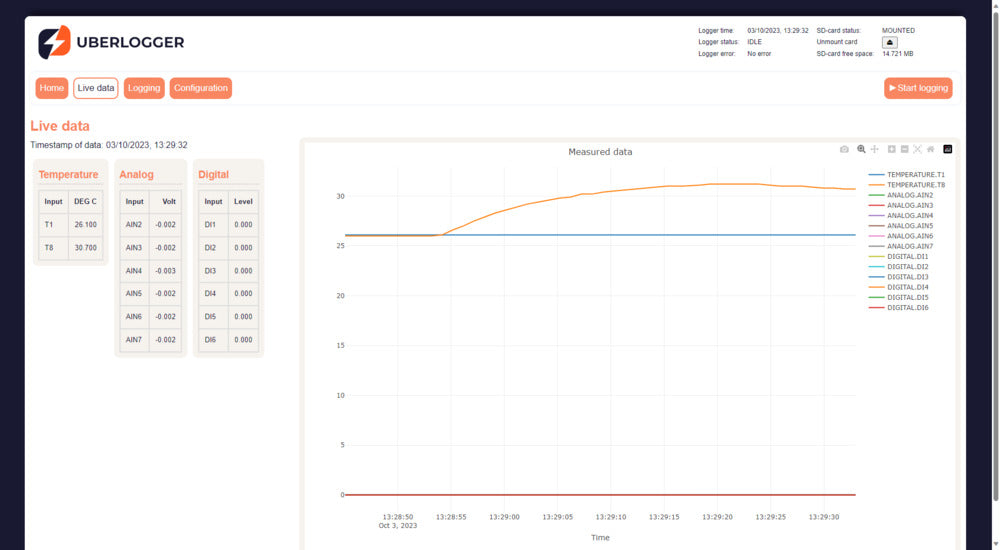

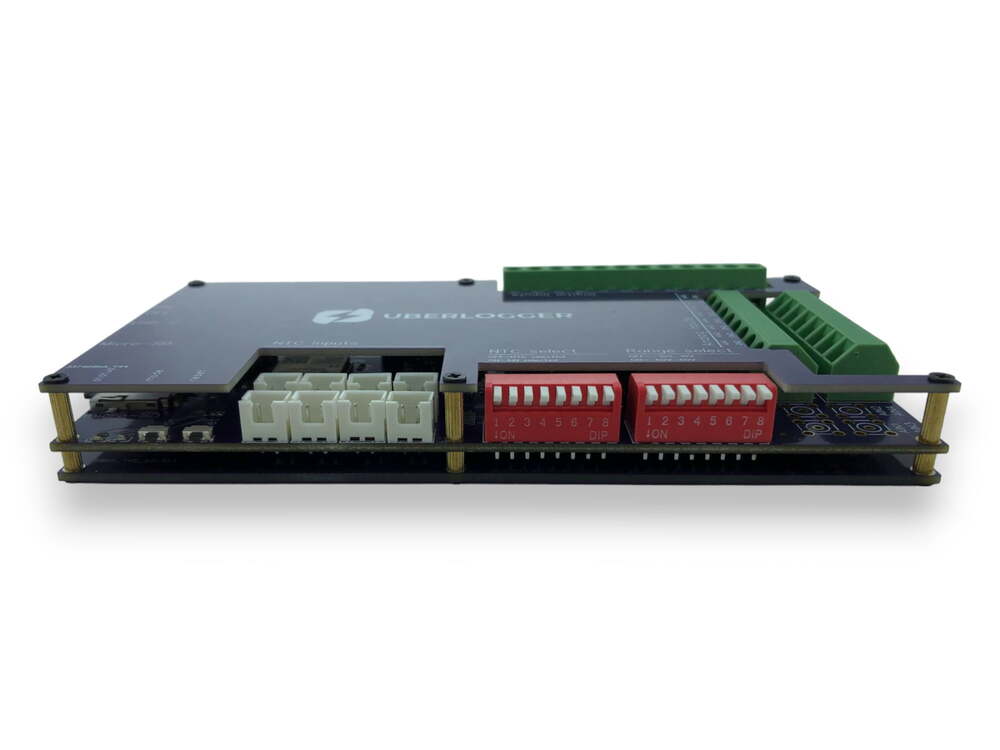

This datalogger records data from 8 analog channels and 6 digital inputs simultaneously in CSV format directly to an SD card up to 32 GB. Each analog channel can be set up for standard analog input or temperature readings using an NTC sensor, allowing you to monitor voltage and temperature at the same time. You can choose between 12-bit or 16-bit resolution and a sampling rate from 1 Hz to 250 Hz, enabling accurate measurements. With the included 32GB SD card and low power consumption settings, you can log data for days with slowly varying signals. The Uberlogger is configured through a web interface over Wi-Fi. It can create its own hotspot for direct connection or connect to an existing network in client mode. Additionally, it can be controlled remotely via the REST API. The Uberlogger is easy to operate using two buttons: one to start/stop logging and one to reset. A green LED indicates the logging status and a red LED indicates an error. Two sets of DIP switches allow the configuration of the analog inputs and the input range. View the api documentation and additional product information on docs.uberlogger.com. The package comes complete with 8 NTC sensors, a USB-C cable, and a 32 GB SD card, so you can start logging right away.
- Regular price
- $240.42
Description

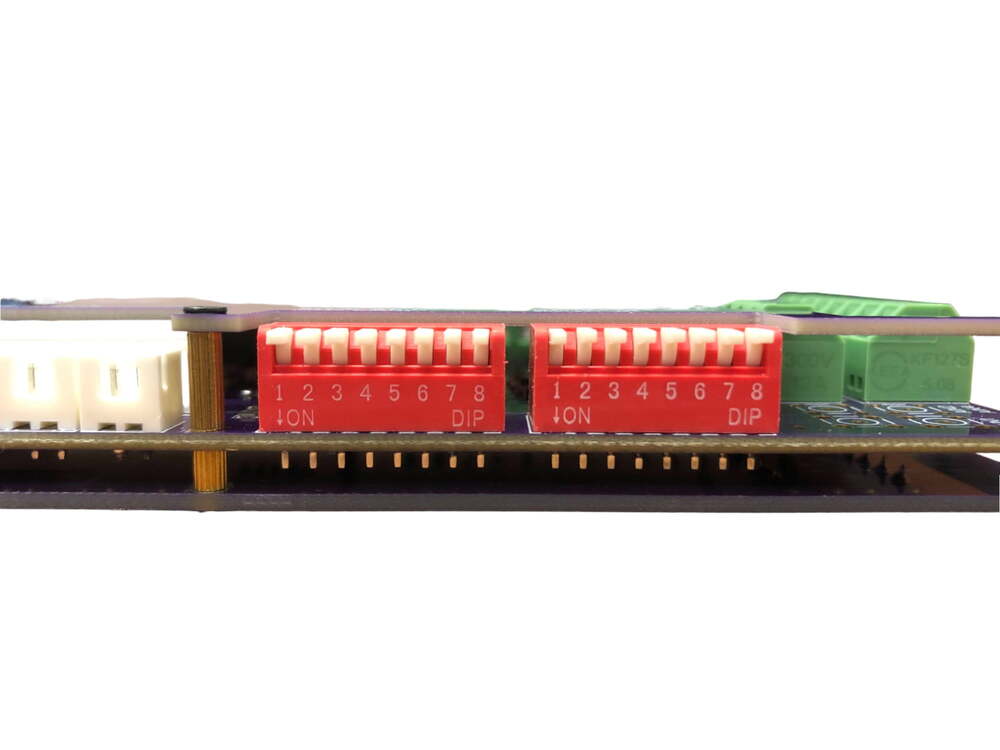

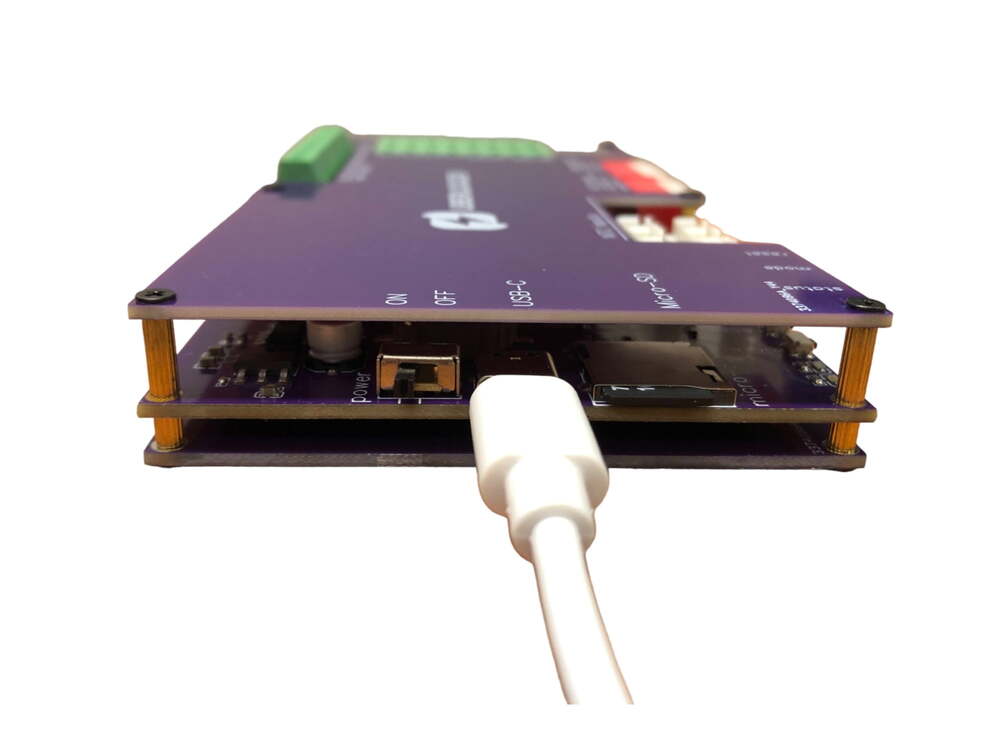

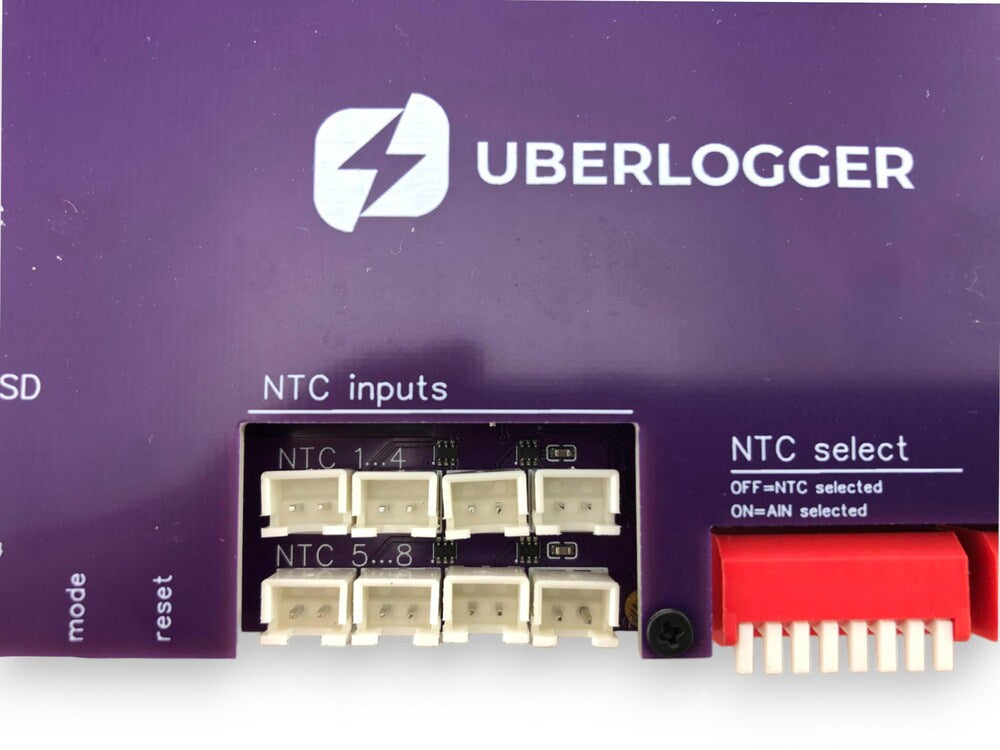

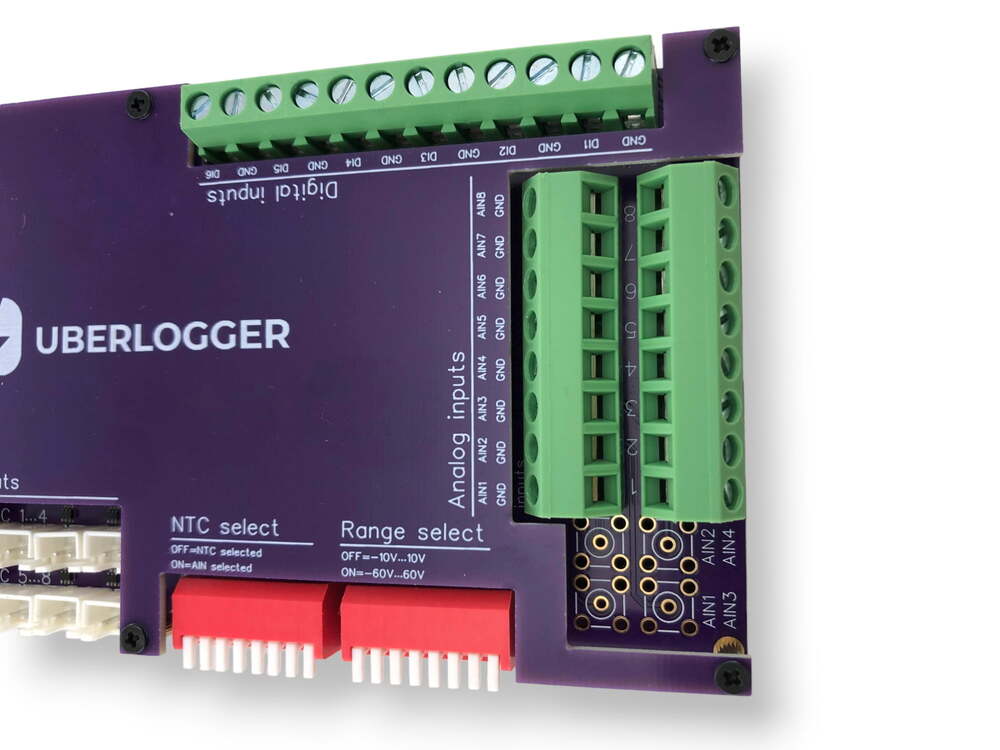

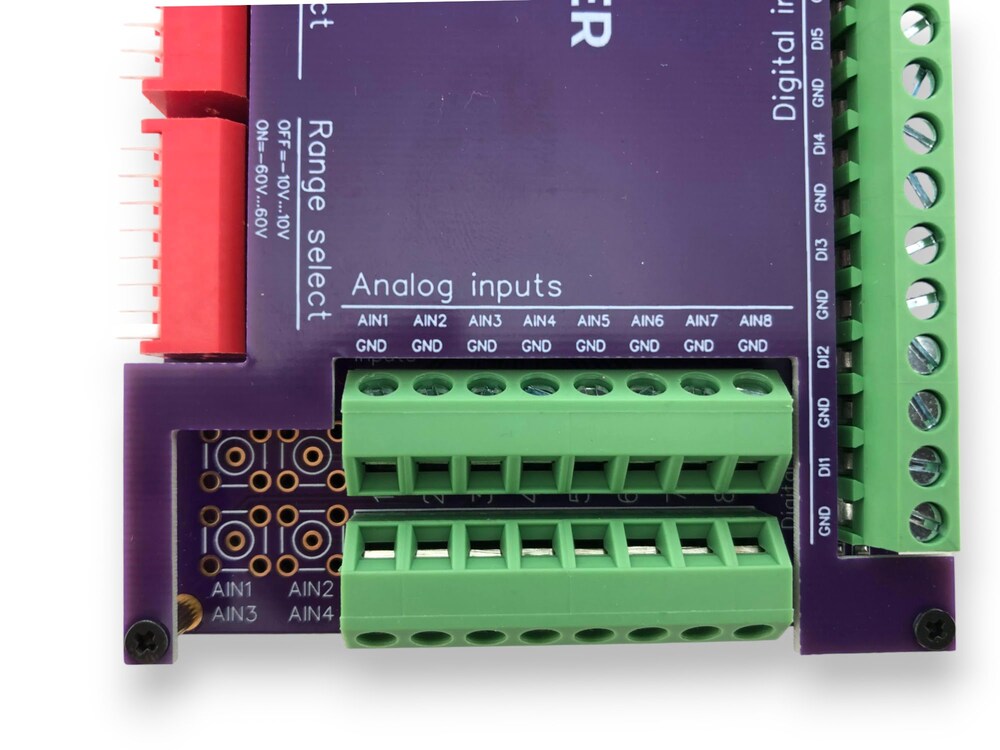

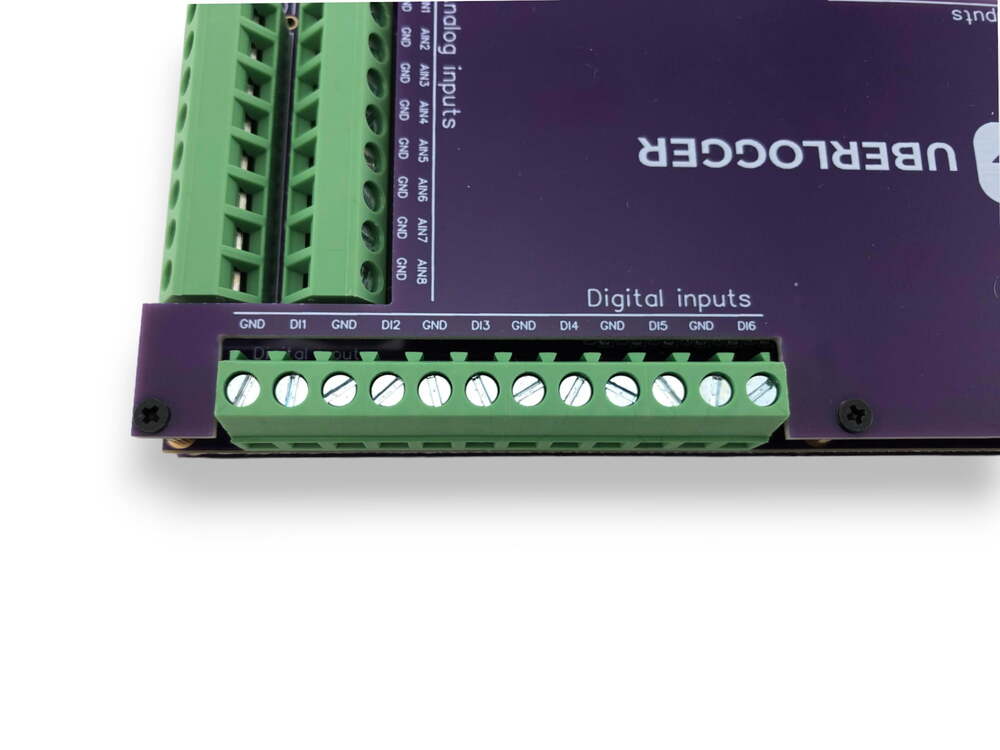

This datalogger records data from 8 analog channels and 6 digital inputs simultaneously in CSV format directly to an SD card up to 32 GB. Each analog channel can be set up for standard analog input or temperature readings using an NTC sensor, allowing you to monitor voltage and temperature at the same time. You can choose between 12-bit or 16-bit resolution and a sampling rate from 1 Hz to 250 Hz, enabling accurate measurements. With the included 32GB SD card and low power consumption settings, you can log data for days with slowly varying signals. The Uberlogger is configured through a web interface over Wi-Fi. It can create its own hotspot for direct connection or connect to an existing network in client mode. Additionally, it can be controlled remotely via the REST API. The Uberlogger is easy to operate using two buttons: one to start/stop logging and one to reset. A green LED indicates the logging status and a red LED indicates an error. Two sets of DIP switches allow the configuration of the analog inputs and the input range. View the api documentation and additional product information on docs.uberlogger.com. The package comes complete with 8 NTC sensors, a USB-C cable, and a 32 GB SD card, so you can start logging right away.
Pros
- ADC Resolution up to 16 bit
- Logs data from 8 analog and 6 digital inputs
Cons
- Maximally 60V input voltage
