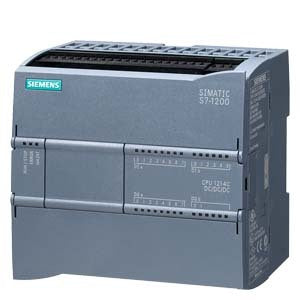

Siemens SIMATIC PLC Base Unit - 6ES72141AG400XB0
Notice: This product is discontinued
Siemens plc. The siemens plc is a high-performance system with a compact and space-saving design. This plc cpu has 2 integrated analogue inputs, 14 integrated digital inputs and 10 integrated digital transistor outputs. It comes with integrated io and communication interfaces that meet the highest industry requirements. It is also enabled with a range of powerful integrated technological functions that make this controller an integral part of a comprehensive automation solution. The controller is at the core of the new offering for simple but highly precise automation tasks.
Notice: This product is discontinued
Description
SIMATIC S7-1200, CPU 1214C, is a compact CPU with DC/DC/DC, onboard I/O including 14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0-10 V DC. It also includes a power supply of DC 20.4-28.8V DC and has a program/data memory of 100 KB.
SIMATIC S7-1200 Basic Controller is flexible and offers a wide variety of communication options. This makes it the first choice for implementing automation tasks in a flexible and efficient manner, particularly in the mid to low performance range. The CPUs are scalable in their performance and are available for different input voltages, along with transistor or relay outputs. In addition, safety versions are also available.
In addition to the existing integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules. This functionality allows for adaptation to your exact requirements. HMI devices can be connected via the integrated Ethernet interface, and the memory of the CPU can be expanded by means of a memory card.
The PLC is configured using the STEP 7 Basic software in the TIA Portal. The micro PLC offers a wide range of networking options via various communication standards through integrated functions such as PROFINET, Modbus, etc. or add-on modules like IO-Link, AS-i, etc. Therefore, it offers maximum flexibility in the topology and when setting up the networks.
The S7-1200 is versatile due to its compact design and it extends from simple packaging machines and heating systems to its use as a subordinate control system in larger plants. The compact design, modular structure and integrated IOs help to save space in the control cabinet. The STEP7 configuration software is integrated into the TIA Portal and can therefore rely on shared data storage, a uniform operating concept and integrated communication services for all components of a system. This means lower configuration costs and faster commissioning.
