Legrand Floorsocket - 088001

Notice: This product is discontinued

Discontinued

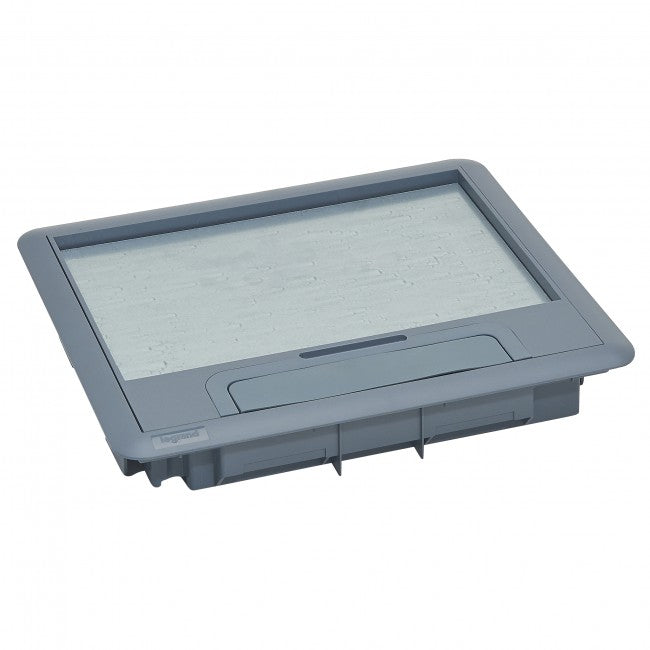

Legrand Floorsocket - 088001
Legrand Floorsocket - 088001
Image may vary slightly
See specifications for accurate information.
Reference: E2K7A
Brand: Legrand
Mfr. Part: 088001

Legrand floor socket, gray, design cover rectangular, 1 device cups, housing other, surface protection housing other, with recess floor cover, depth floor cover recess 8mm, protective frame floor cover, RAL number 7031, suitable for hollow floor.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Legrand floor socket, gray, design cover rectangular, 1 device cups, housing other, surface protection housing other, with recess floor cover, depth floor cover recess 8mm, protective frame floor cover, RAL number 7031, suitable for hollow floor.

Downloads

Product data sheet (EN)
pdf
Download
Management, operation and maintenance document (EN)
pdf
Download

Specifications

Cover model
Rectangular
Number of device cups
1
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Other
Surface protection housing
Other
With opening carpeting
Yes
Depth of flooring recess (mm)
8
Protective frame carpeting
Yes
Color
Grey
RAL-number
7031
Suitable for sub-floor duct
No
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Suitable for wet cleaning
Yes
Length built-in dimension (mm)
264
Width built-in dimension (mm)
219
Min. built-in depth (mm)
41
